Providing the Most Comprehensive Perforated Pattern Library In The Industry

Accurate Perforating offers a perforated pattern for everyone, from basic stock perforations to complex patterns, whether you need it to suit a decorative or functional requirement. Choose from our standard round staggered, round straight, slot, square, decorative patterns, and much more. If you don't see the pattern you want, contact us to discuss creating a custom pattern.



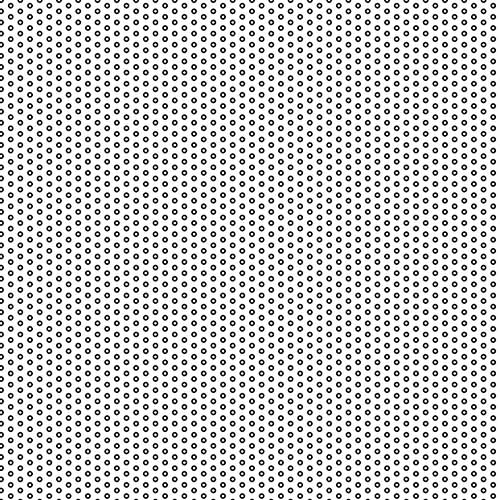

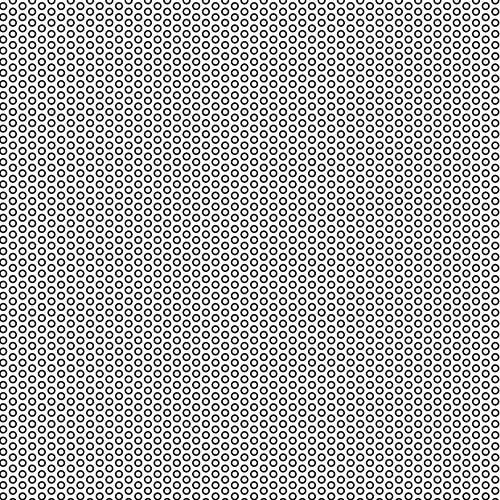

RS200

0.046" x 0.078"
Open Area: 32.0%
Hole Diameter: 0.046
Centers: 0.078
DWG
DXF
PDF

RS001

0.046" x 0.265"
Open Area: 3.0%
Hole Diameter: 0.046
Centers: 0.265
RS001
DWG
DXF
PDF

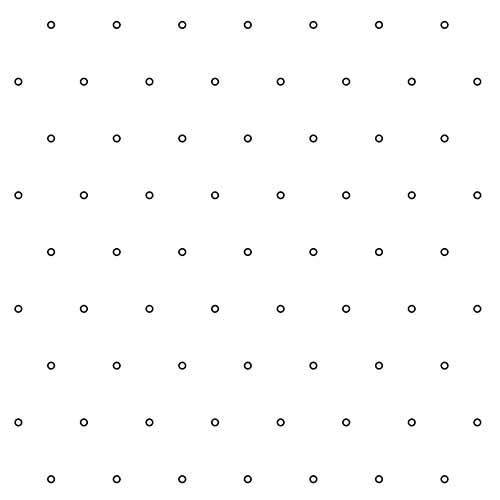

RS202

0.046" x 0.459"
Open Area: 1.0%
Hole Diameter: 0.046
Centers: 0.459
RS202
DWG
DXF
PDF

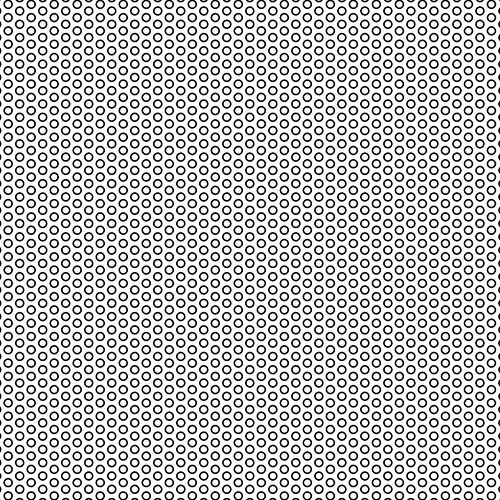

RS266

0.055" x 0.093"
Open Area: 32.0%
Hole Diameter: 0.055
Centers: 0.093
RS266
DWG
DXF
PDF

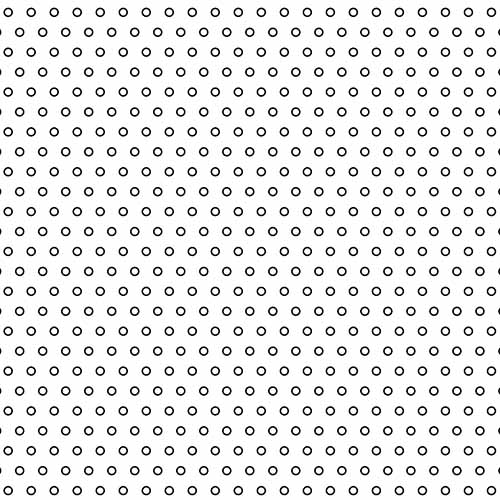

RS265

0.055" x 0.161"
Open Area: 11.0%
Hole Diameter: 0.055
Centers: 0.161
RS265
DWG
DXF
PDF

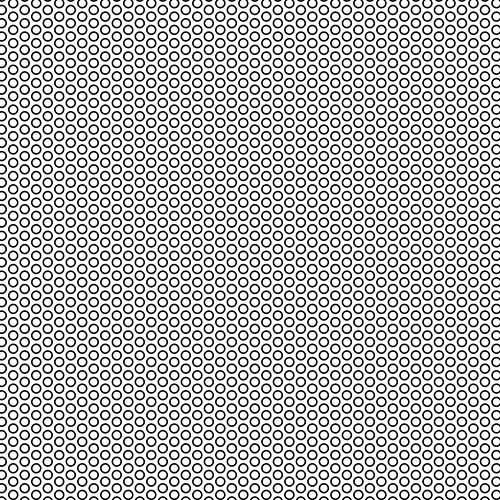

RS009

0.062" x 0.093"
Open Area: 40.0%
Hole Diameter: 0.062
Centers: 0.093
RS009
DWG
DXF
PDF

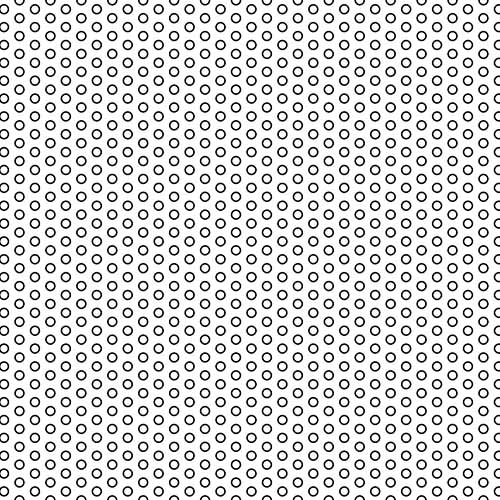

RS007

0.062" x 0.125"
Open Area: 22.0%
Hole Diameter: 0.062
Centers: 0.125
RS007
DWG
DXF
PDF

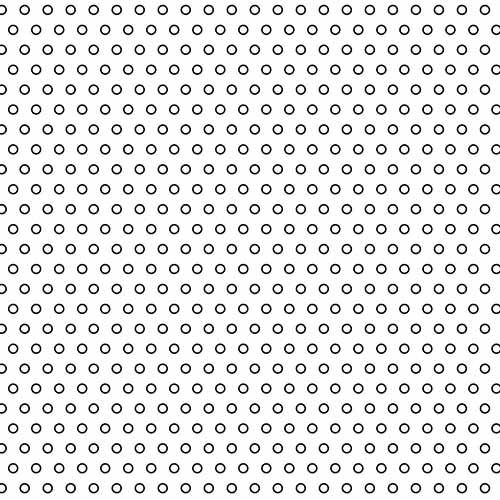

RS005

0.062" x 0.161"
Open Area: 14.0%
Hole Diameter: 0.062
Centers: 0.161
RS005
DWG
DXF
PDF

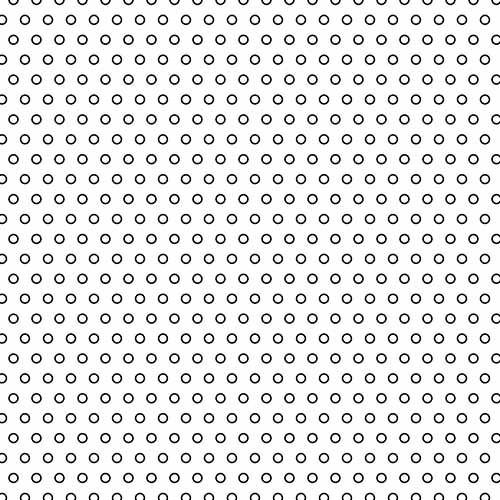

RS203

0.062" x 0.161"
Open Area: 13.0%
Hole Diameter: 0.062
Centers: 0.161
RS203
DWG
DXF
PDF

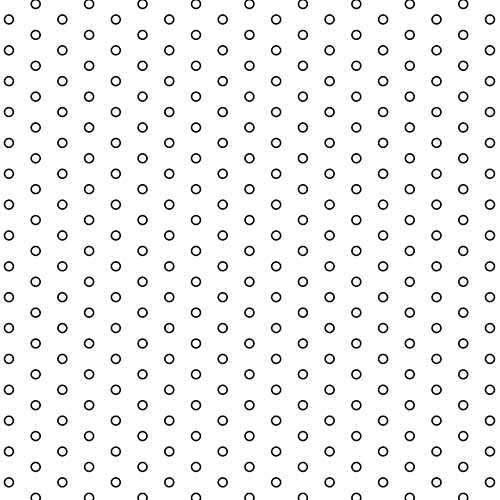

RS003

0.062" x 0.216"
Open Area: 8.0%
Hole Diameter: 0.062
Centers: 0.216
RS003
DWG
DXF
PDF

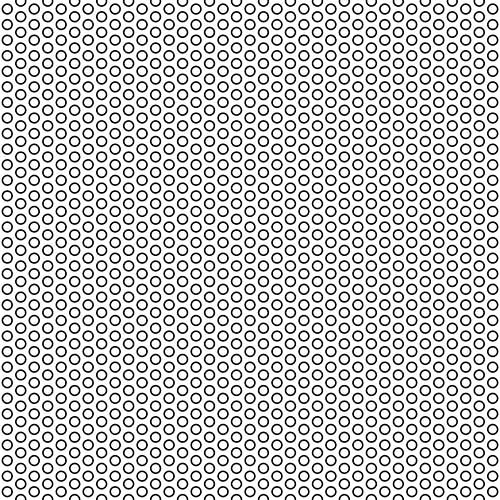

RS014

0.068" x 0.109"
Open Area: 35.0%
Hole Diameter: 0.068
Centers: 0.109
RS014
DWG
DXF
PDF

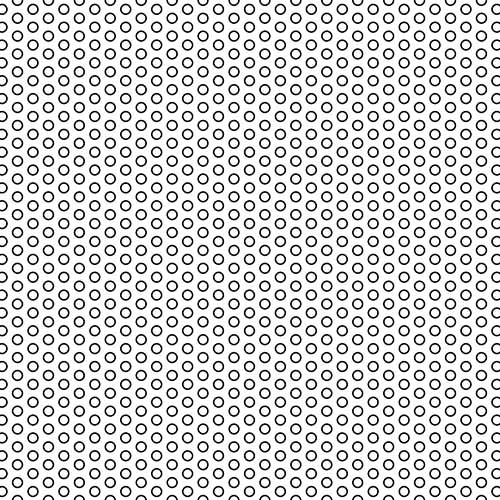

RS013

0.068" x 0.125"
Open Area: 27.0%
Hole Diameter: 0.068
Centers: 0.125
RS013
DWG
DXF
PDF

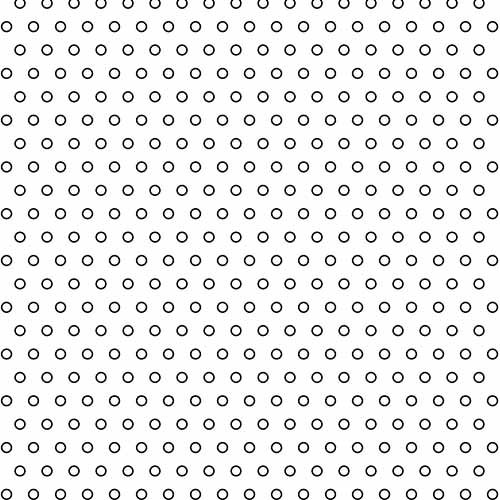

RS204

0.068" x 0.189"
Open Area: 12.0%
Hole Diameter: 0.068
Centers: 0.189
RS204
DWG
DXF
PDF

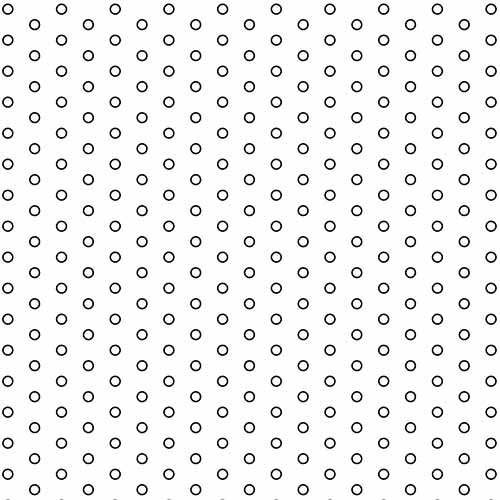

RS012

0.068" x 0.217"
Open Area: 9.0%
Hole Diameter: 0.068
Centers: 0.217
RS012
DWG
DXF
PDF

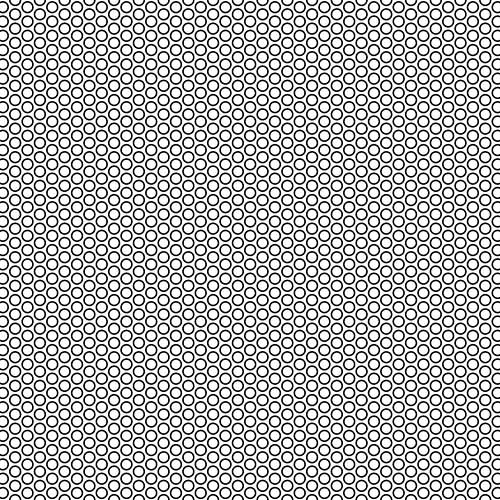

RS016

0.075" x 0.1"
Open Area: 51.0%
Hole Diameter: 0.075
Centers: 0.100
RS016
DWG
DXF
PDF

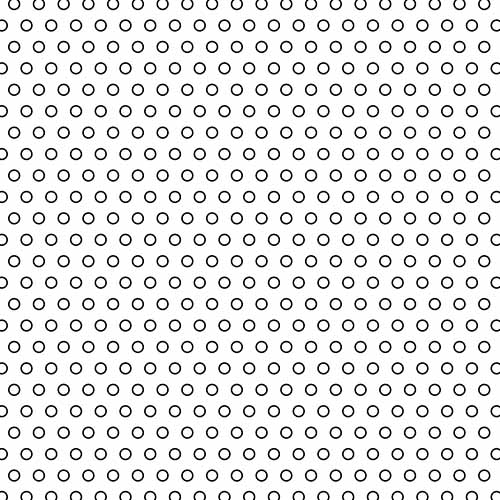

RS015

0.075" x 0.173"
Open Area: 17.0%
Hole Diameter: 0.075
Centers: 0.173
RS015
DWG
DXF
PDF

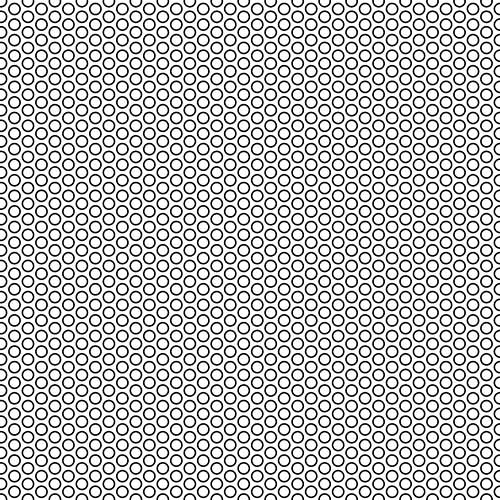

RS022

0.078" x 0.109"
Open Area: 46.0%
Hole Diameter: 0.078
Centers: 0.109
RS022
DWG
DXF
PDF

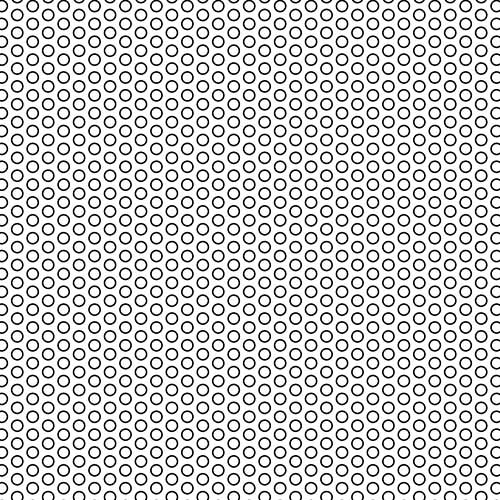

RS021

0.078" x 0.125"
Open Area: 35.0%
Hole Diameter: 0.078
Centers: 0.125
RS021
DWG
DXF
PDF

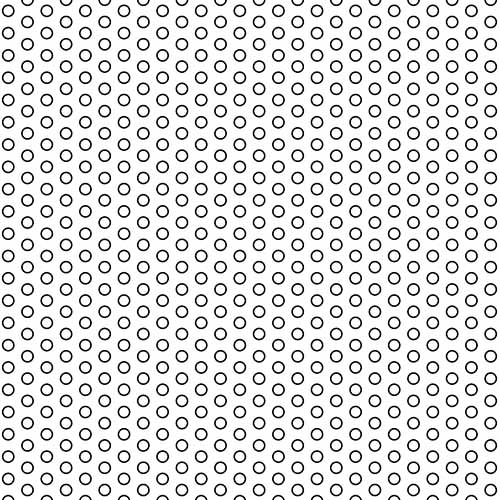

RS020

0.078" x 0.156"
Open Area: 23.0%
Hole Diameter: 0.078
Centers: 0.156
RS020
DWG
DXF
PDF

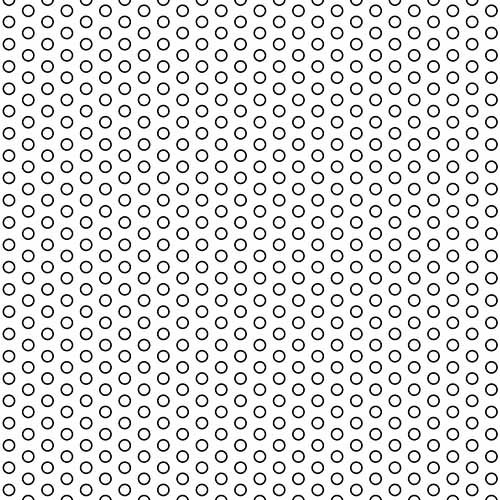

RS208

0.078" x 0.156"
Open Area: 23.0%
Hole Diameter: 0.078
Centers: 0.156
RS208
DWG
DXF
PDF

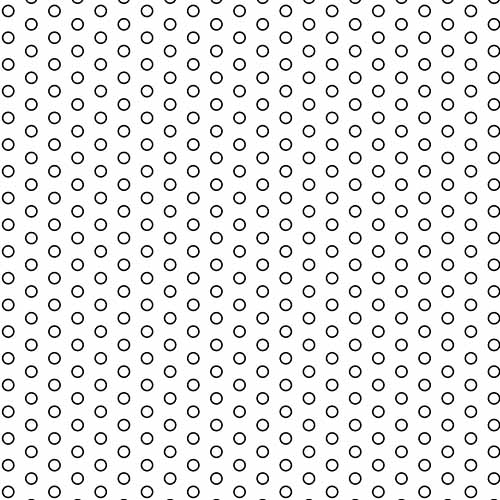

RS207

0.078" x 0.187"
Open Area: 16.0%
Hole Diameter: 0.078
Centers: 0.187
RS207
DWG
DXF
PDF

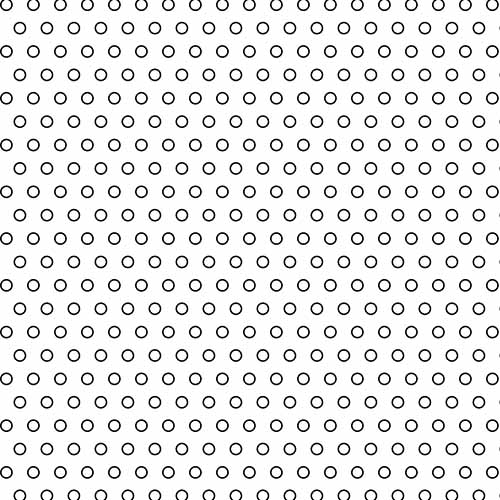

RS017

0.078" x 0.189"
Open Area: 16.0%
Hole Diameter: 0.078
Centers: 0.189
DWG
DXF
PDF

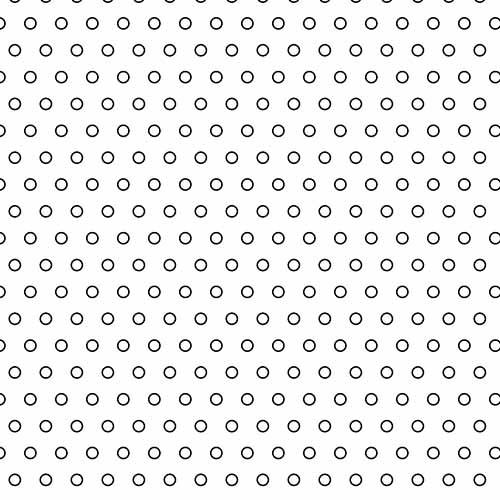

RS206

0.078" x 0.217"
Open Area: 12.0%
Hole Diameter: 0.078
Centers: 0.217
DWG
DXF
PDF

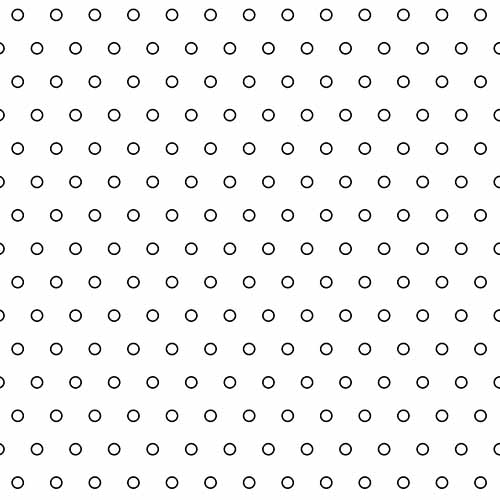

RS205

0.078" x 0.27"
Open Area: 8.0%
Hole Diameter: 0.078
Centers: 0.270
DWG
DXF
PDF

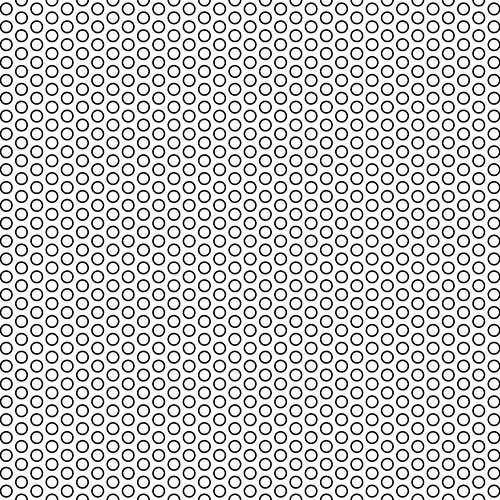

RS019

0.081" x 0.125"
Open Area: 38.0%
Hole Diameter: 0.081
Centers: 0.125
DWG
DXF
PDF

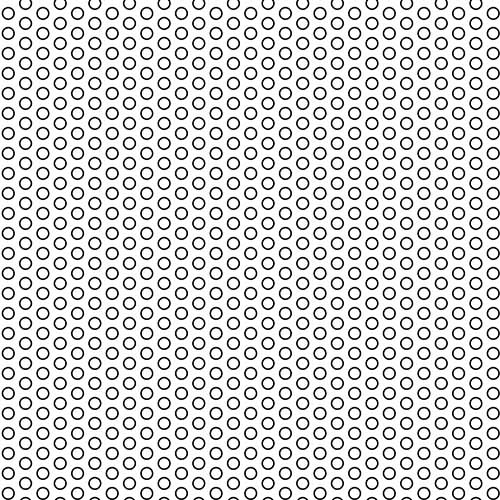

RS211

0.081" x 0.14"
Open Area: 30.0%
Hole Diameter: 0.081
Centers: 0.140
DWG
DXF
PDF

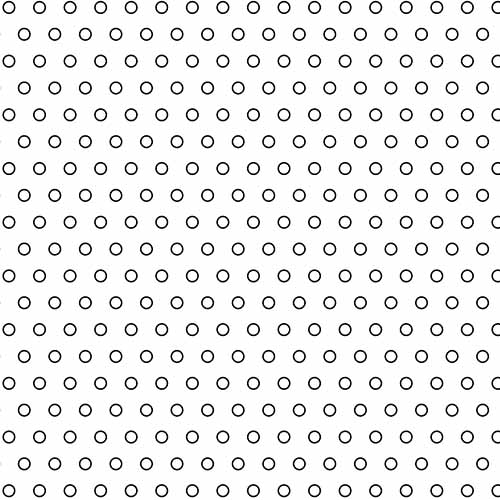

RS209

0.081" x 0.217"
Open Area: 13.0%
Hole Diameter: 0.081
Centers: 0.217
RS209
DWG
DXF
PDF

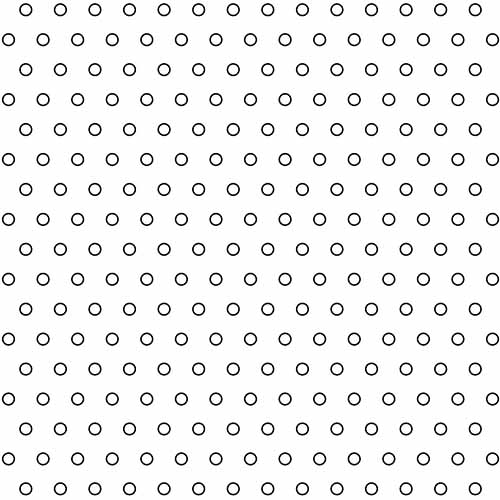

RS210

0.081" x 0.242"
Open Area: 10.0%
Hole Diameter: 0.081
Centers: 0.242
RS210
DWG
DXF
PDF

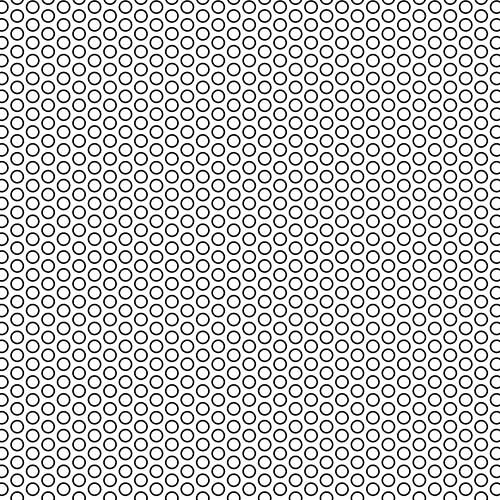

RS018

0.085" x 0.125"
Open Area: 42.0%
Hole Diameter: 0.085
Centers: 0.125
RS018
DWG
DXF
PDF

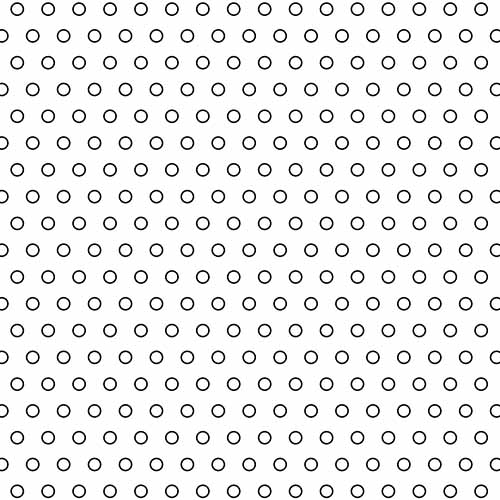

RS212

0.085" x 0.217"
Open Area: 14.0%
Hole Diameter: 0.085
Centers: 0.217
RS212
DWG
DXF
PDF

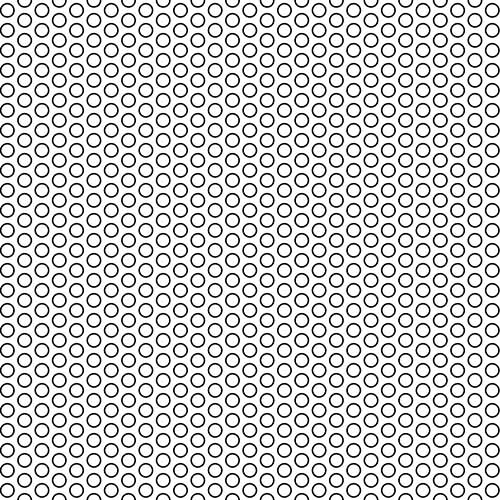

RS224

0.093" x 0.14"
Open Area: 40.0%
Hole Diameter: 0.093
Centers: 0.140
RS224
DWG
DXF
PDF

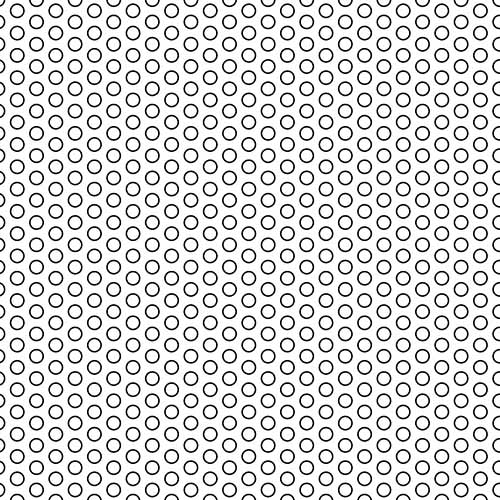

RS028

0.093" x 0.156"
Open Area: 32.0%
Hole Diameter: 0.093
Centers: 0.156
RS028
DWG
DXF
PDF

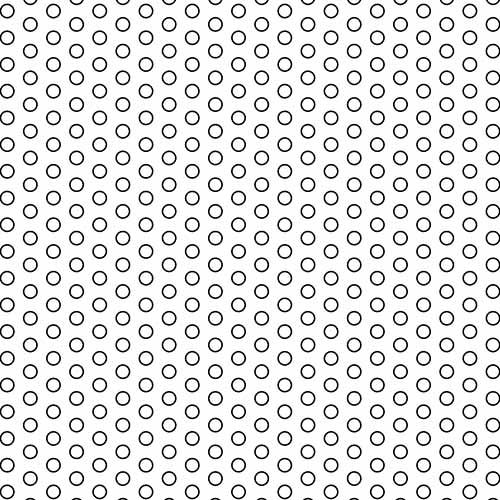

RS027

0.093" x 0.187"
Open Area: 23.0%
Hole Diameter: 0.093
Centers: 0.187
RS027
DWG
DXF
PDF

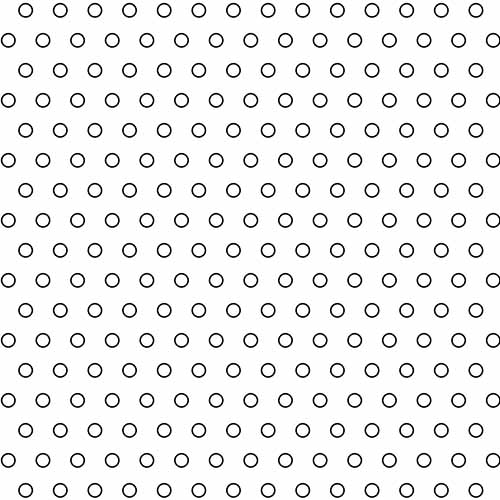

RS225

0.093" x 0.242"
Open Area: 13.0%
Hole Diameter: 0.093
Centers: 0.242
RS225
DWG
DXF
PDF

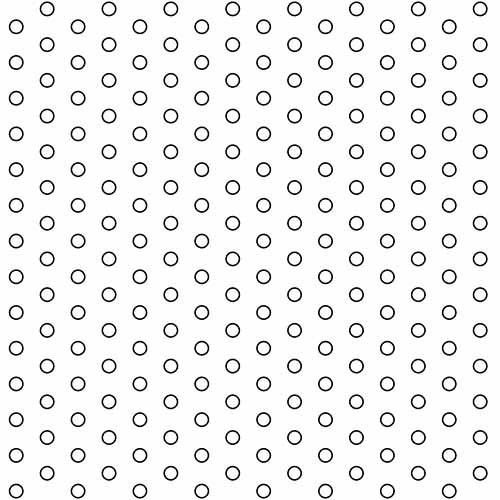

RS025

0.093" x 0.25"
Open Area: 13.0%
Hole Diameter: 0.093
Centers: 0.250
RS025
DWG
DXF
PDF

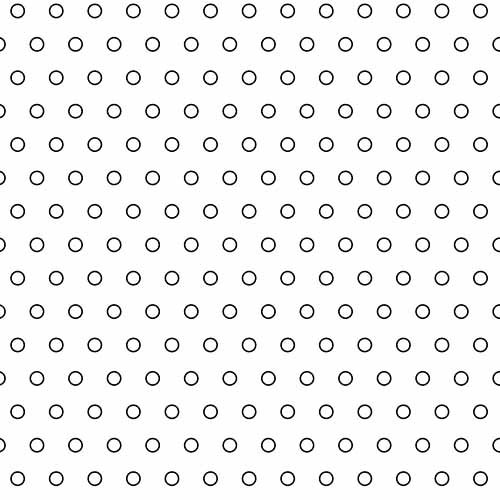

RS026

0.093" x 0.27"
Open Area: 11.0%
Hole Diameter: 0.093
Centers: 0.270
RS026
DWG
DXF
PDF

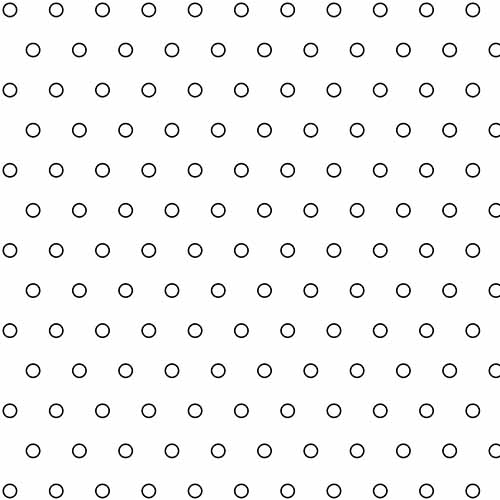

RS024

0.093" x 0.324"
Open Area: 8.0%
Hole Diameter: 0.093
Centers: 0.324
DWG
DXF
PDF

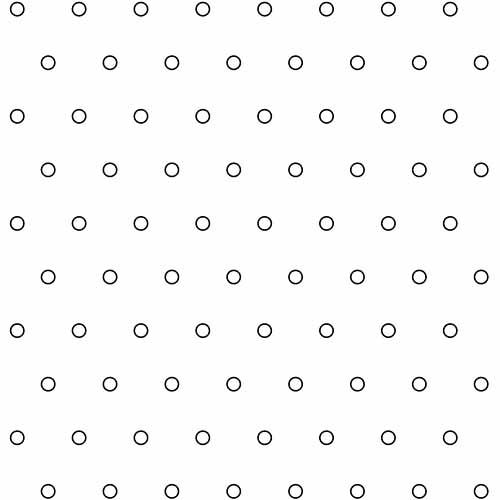

RS023

0.093" x 0.433"
Open Area: 4.0%
Hole Diameter: 0.093
Centers: 0.433
RS023
DWG
DXF
PDF

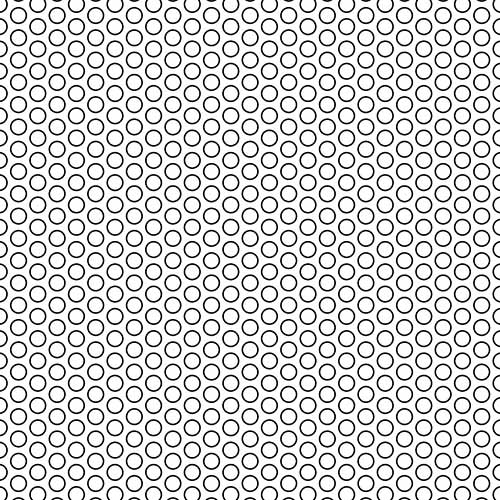

RS034

0.109" x 0.156"
Open Area: 44.0%
Hole Diameter: 0.109
Centers: 0.156
RS034
DWG
DXF
PDF

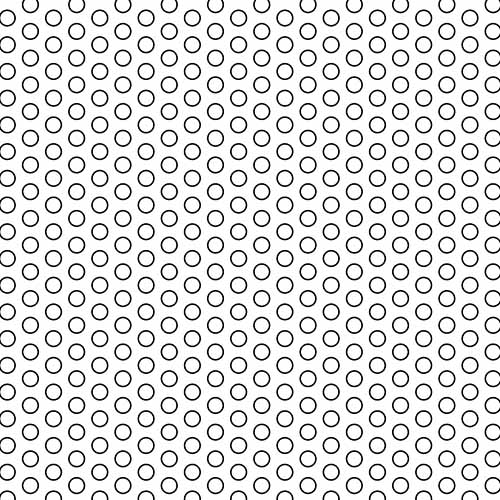

RS032

0.109" x 0.187"
Open Area: 31.0%
Hole Diameter: 0.109
Centers: 0.187
RS032
DWG
DXF
PDF

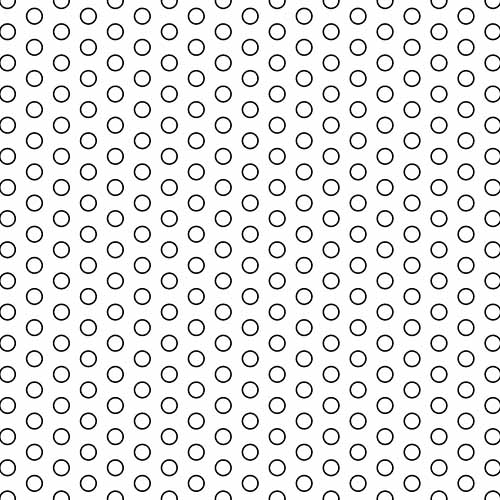

RS031

0.109" x 0.218"
Open Area: 23.0%
Hole Diameter: 0.109
Centers: 0.218
RS031
DWG
DXF
PDF

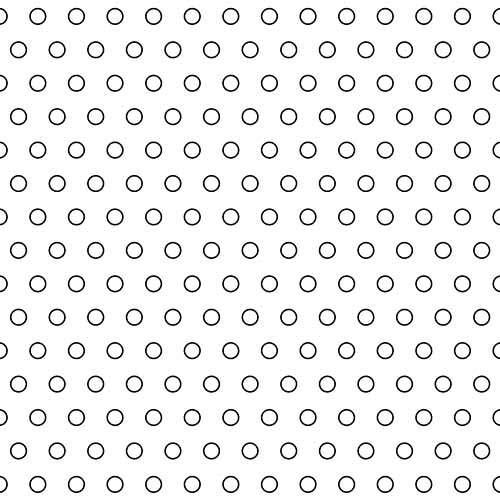

RS030

0.109" x 0.27"
Open Area: 15.0%
Hole Diameter: 0.109
Centers: 0.270
RS030
DWG
DXF
PDF

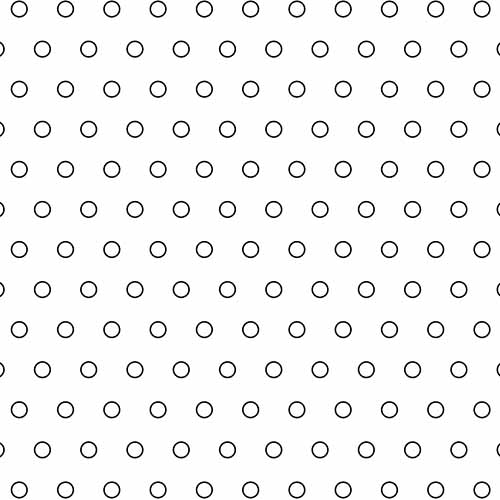

RS216

0.109" x 0.324"
Open Area: 10.0%
Hole Diameter: 0.109
Centers: 0.324
RS216
DWG
DXF
PDF

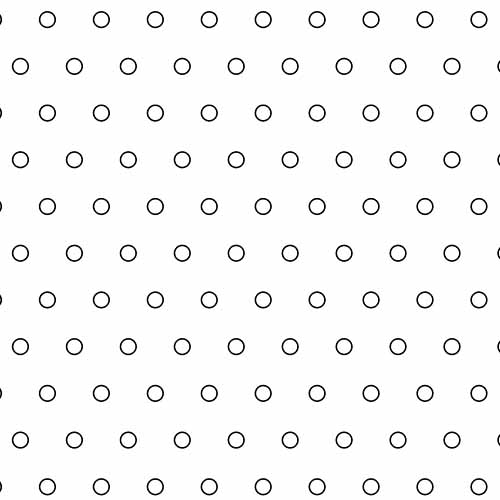

RS217

0.109" x 0.378"
Open Area: 8.0%
Hole Diameter: 0.109
Centers: 0.378
RS217
DWG
DXF
PDF

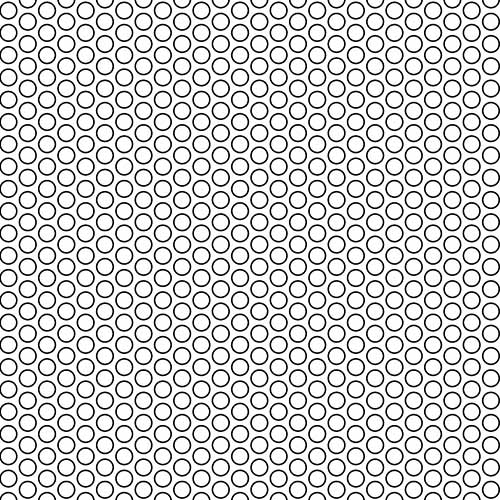

RS036

0.116" x 0.156"
Open Area: 51.0%
Hole Diameter: 0.116
Centers: 0.156
RS036
DWG
DXF
PDF

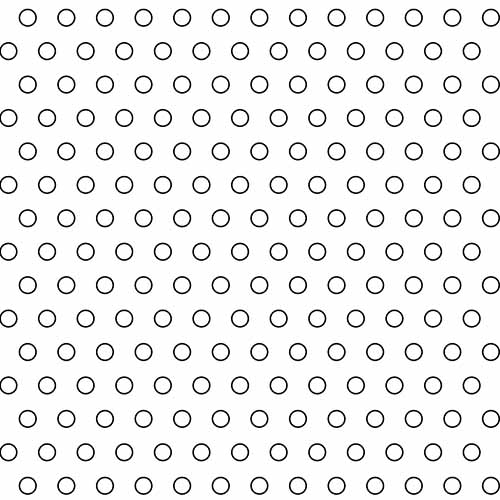

RS035

0.116" x 0.27"
Open Area: 17.0%
Hole Diameter: 0.116
Centers: 0.270
RS035
DWG
DXF
PDF

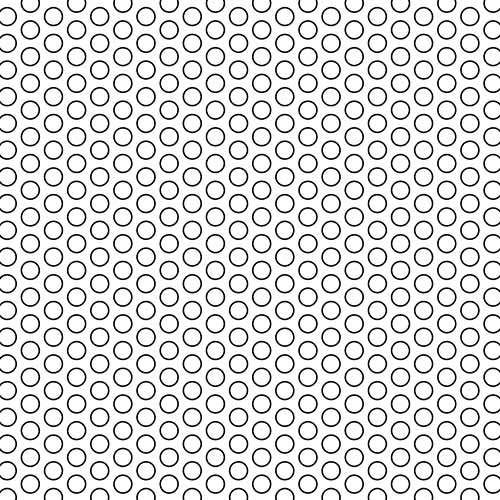

RS043

0.125" x 0.187"
Open Area: 41.0%
Hole Diameter: 0.125
Centers: 0.187
RS043
DWG
DXF
PDF

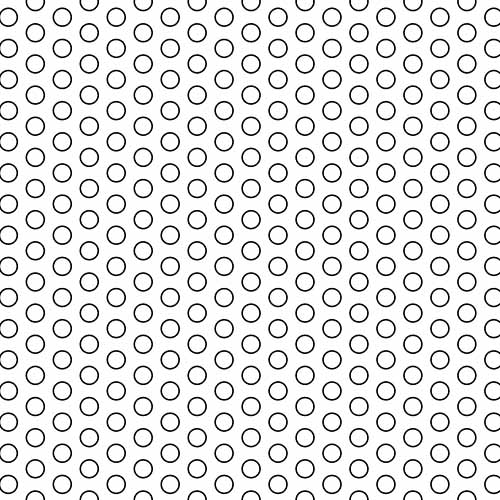

RS042

0.125" x 0.218"
Open Area: 30.0%
Hole Diameter: 0.125
Centers: 0.218
RS042
DWG
DXF
PDF

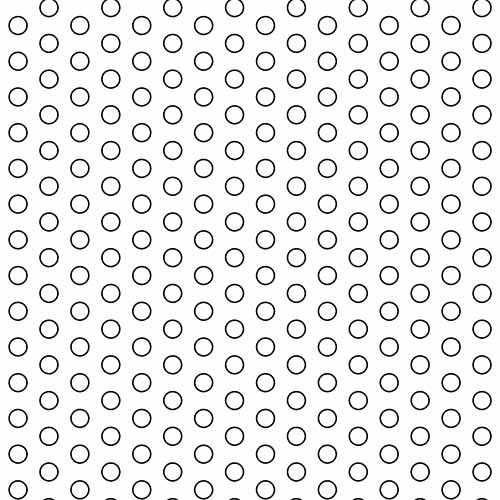

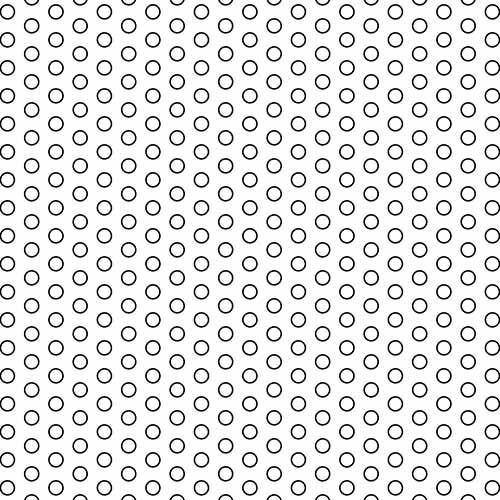

RS041

0.125" x 0.25"
Open Area: 23.0%
Hole Diameter: 0.125
Centers: 0.250
RS041
DWG
DXF
PDF

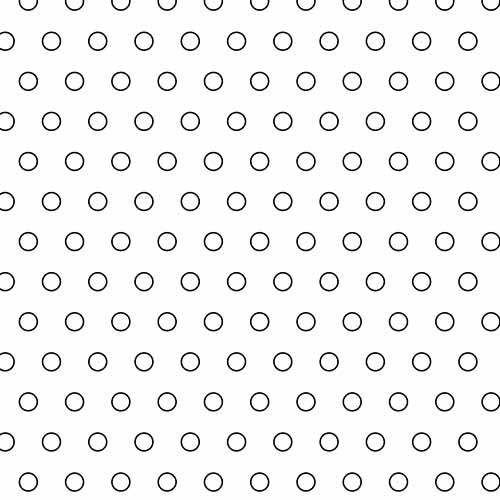

RS040

0.125" x 0.324"
Open Area: 13.0%
Hole Diameter: 0.125
Centers: 0.324
RS040
DWG
DXF
PDF

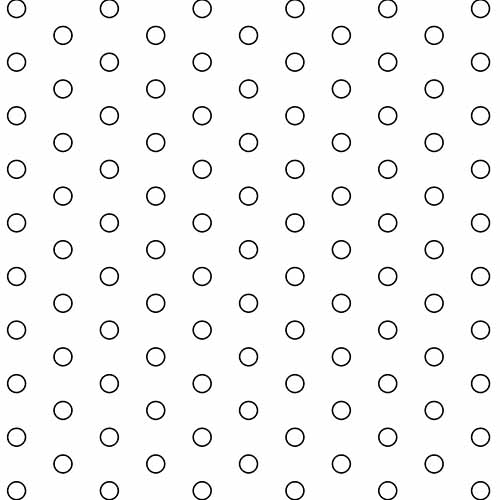

RS039

0.125" x 0.375"
Open Area: 10.0%
Hole Diameter: 0.125
Centers: 0.375
RS039
DWG
DXF
PDF

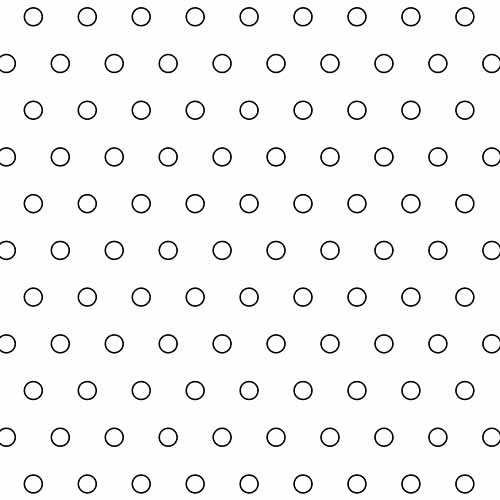

RS038

0.125" x 0.378"
Open Area: 10.0%
Hole Diameter: 0.125
Centers: 0.378
RS038
DWG
DXF
PDF

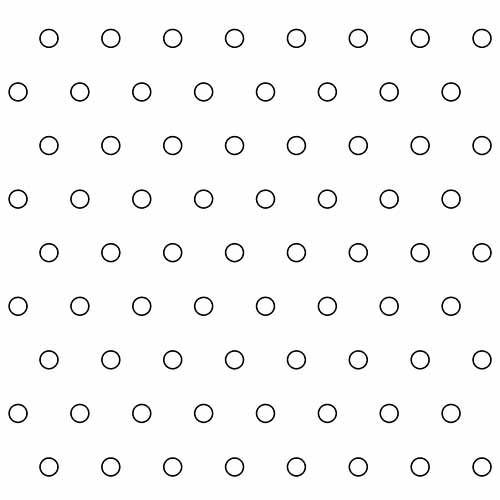

RS037

0.125" x 0.433"
Open Area: 8.0%
Hole Diameter: 0.125
Centers: 0.433
RS037
DWG
DXF
PDF

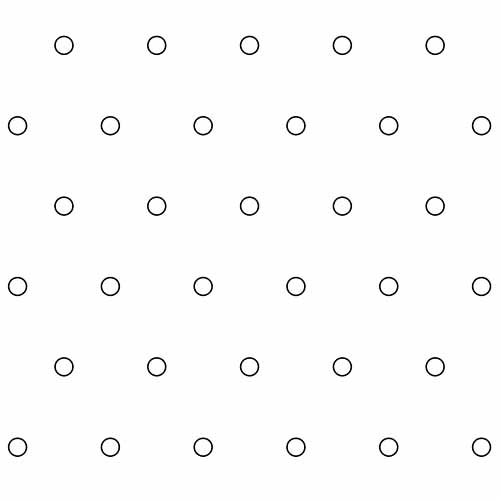

RS218

0.125" x 0.65"
Open Area: 3.0%
Hole Diameter: 0.125
Centers: 0.650
RS218
DWG
DXF
PDF

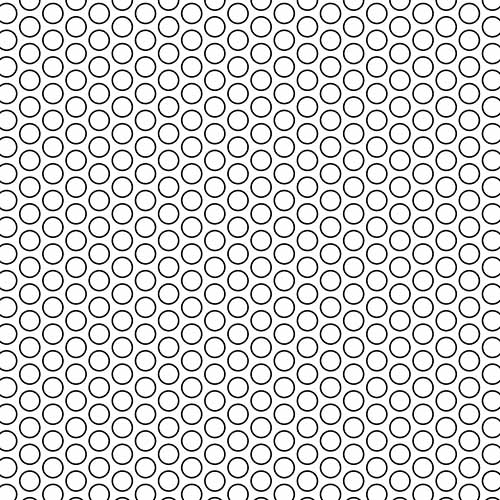

RS049

0.14" x 0.187"
Open Area: 51.0%
Hole Diameter: 0.140
Centers: 0.187
RS049
DWG
DXF
PDF

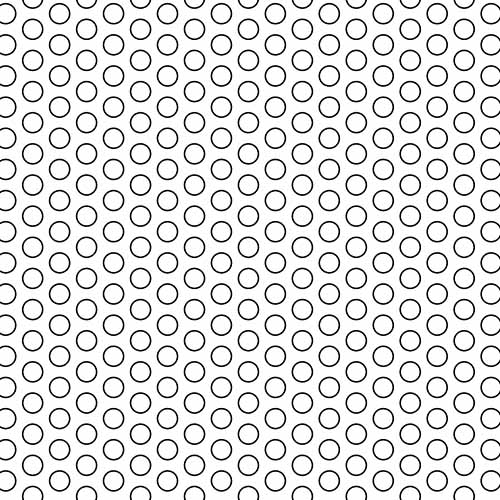

RS048

0.14" x 0.218"
Open Area: 38.0%
Hole Diameter: 0.140
Centers: 0.218
RS048
DWG
DXF
PDF

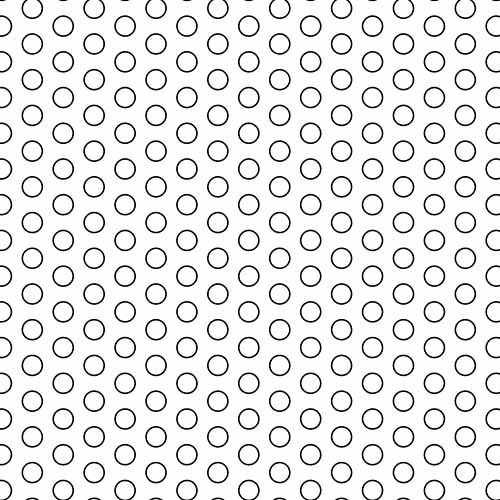

RS047

0.14" x 0.25"
Open Area: 28.0%
Hole Diameter: 0.140
Centers: 0.250
RS047
DWG
DXF
PDF

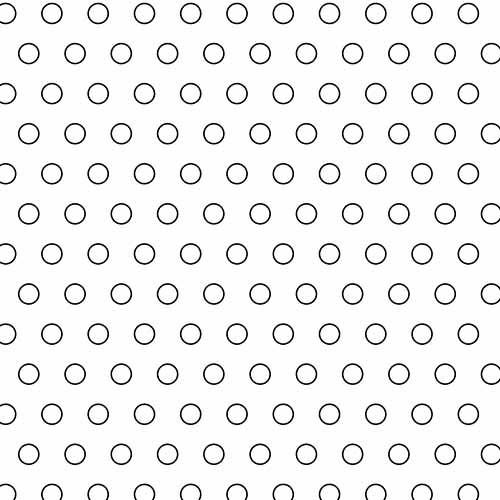

RS046

0.14" x 0.324"
Open Area: 17.0%
Hole Diameter: 0.140
Centers: 0.324
RS046
DWG
DXF
PDF

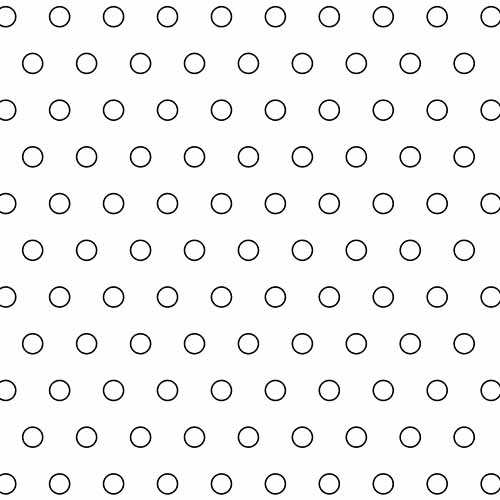

RS045

0.14" x 0.378"
Open Area: 12.0%
Hole Diameter: 0.140
Centers: 0.378
RS045
DWG
DXF
PDF

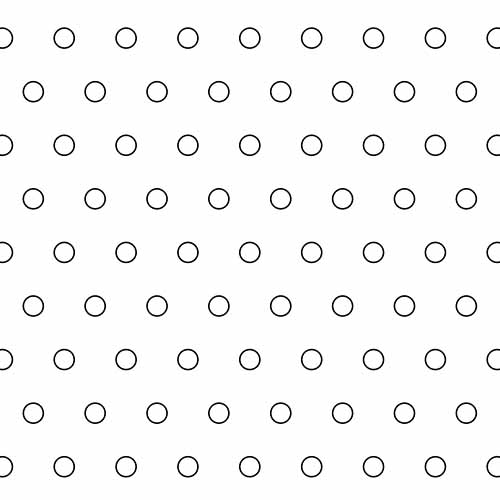

RS044

0.14" x 0.433"
Open Area: 10.0%
Hole Diameter: 0.140
Centers: 0.433
RS044
DWG
DXF
PDF

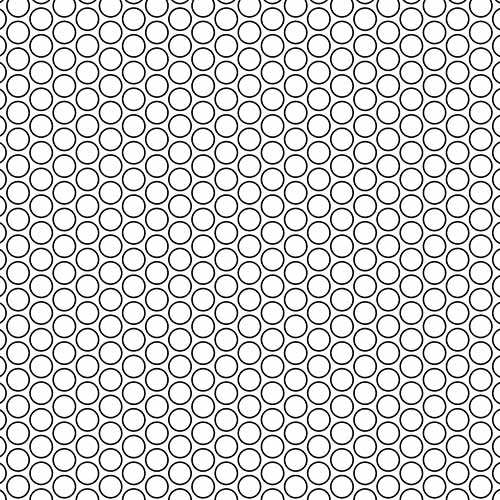

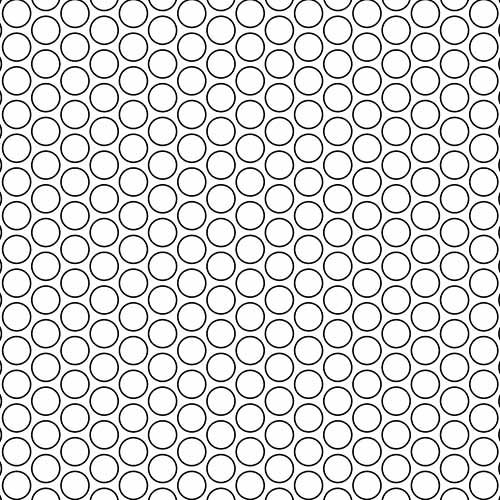

RS059

0.156" x 0.187"
Open Area: 63.0%
Hole Diameter: 0.156
Centers: 0.187
RS059
DWG
DXF
PDF

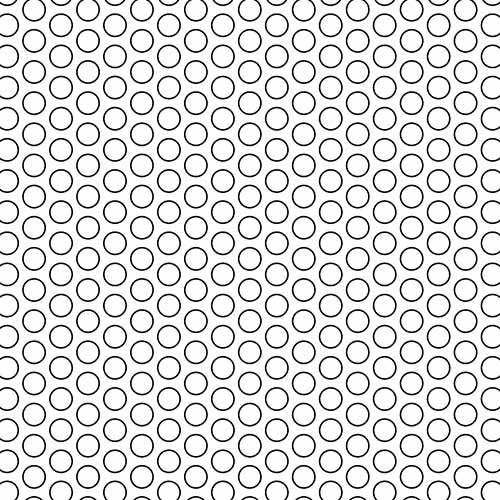

RS058

0.156" x 0.218"
Open Area: 46.0%
Hole Diameter: 0.156
Centers: 0.218
RS058
DWG
DXF
PDF

RS057

0.156" x 0.25"
Open Area: 35.0%
Hole Diameter: 0.156
Centers: 0.250
RS057
DWG
DXF
PDF

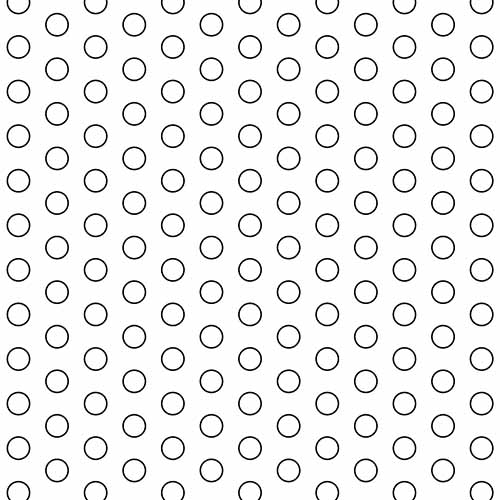

RS056

0.156" x 0.312"
Open Area: 23.0%
Hole Diameter: 0.156
Centers: 0.312
RS056
DWG
DXF
PDF

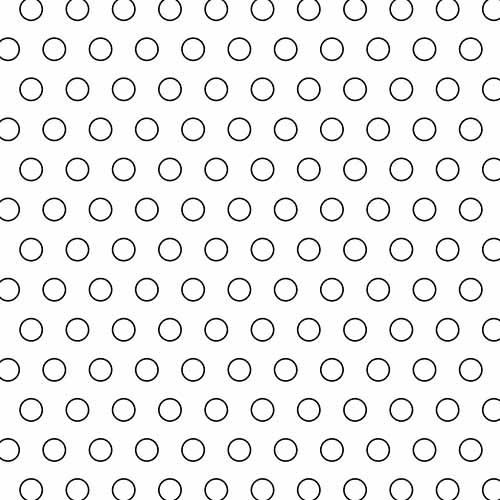

RS055

0.156" x 0.324"
Open Area: 21.0%
Hole Diameter: 0.156
Centers: 0.324
RS055
DWG
DXF
PDF

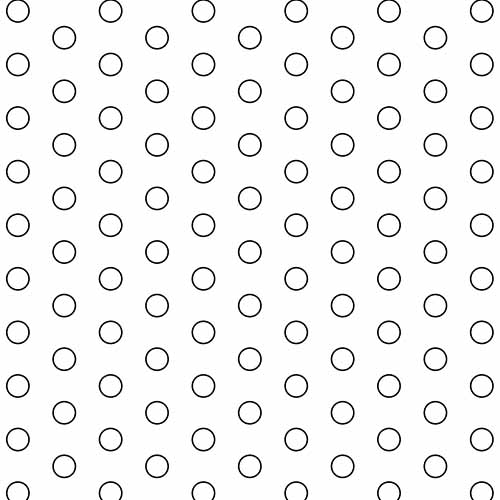

RS054

0.156" x 0.375"
Open Area: 16.0%
Hole Diameter: 0.156
Centers: 0.375
RS054
DWG
DXF
PDF

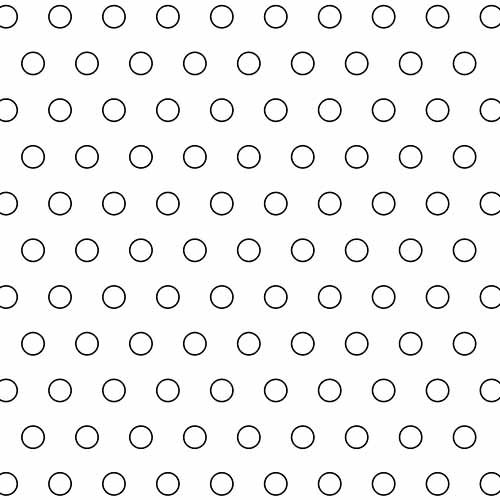

RS053

0.156" x 0.378"
Open Area: 15.0%
Hole Diameter: 0.156
Centers: 0.378
RS053
DWG
DXF
PDF

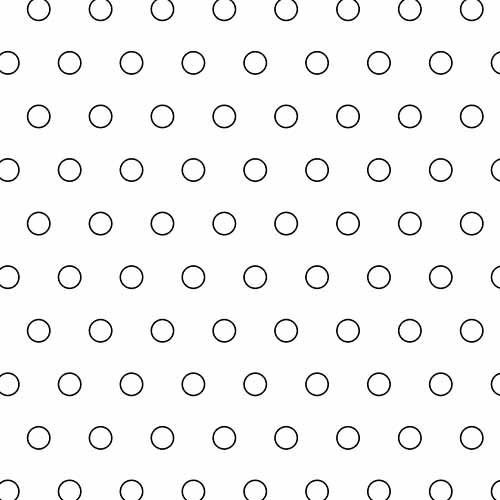

RS052

0.156" x 0.433"
Open Area: 12.0%
Hole Diameter: 0.156
Centers: 0.433
RS052
DWG
DXF
PDF

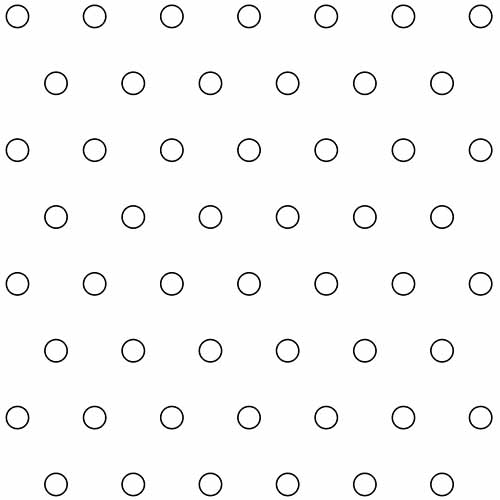

RS051

0.156" x 0.54"
Open Area: 8.0%
Hole Diameter: 0.156
Centers: 0.540
RS051
DWG
DXF
PDF

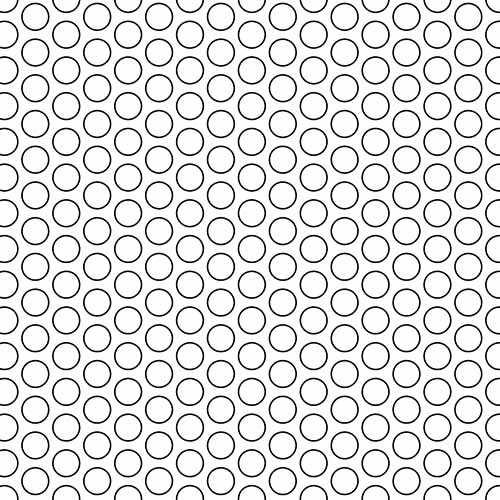

RS068

0.187" x 0.25"
Open Area: 51.0%
Hole Diameter: 0.187
Centers: 0.250
RS068
DWG
DXF
PDF

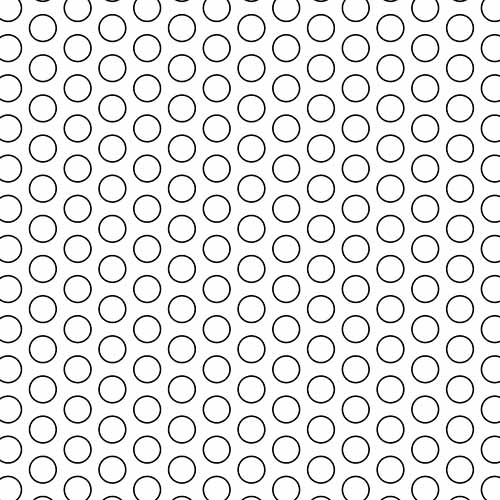

RS067

0.187" x 0.281"
Open Area: 40.0%
Hole Diameter: 0.187
Centers: 0.281
RS067
DWG
DXF
PDF

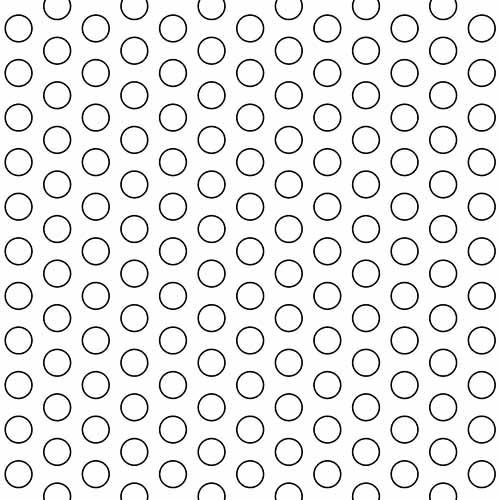

RS066

0.187" x 0.312"
Open Area: 33.0%
Hole Diameter: 0.187
Centers: 0.312
RS066
DWG
DXF
PDF

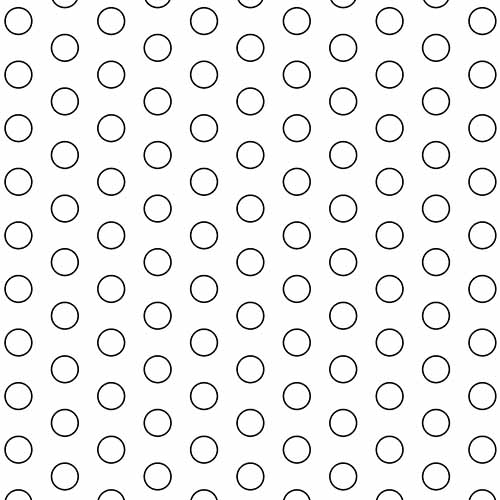

RS065

0.187" x 0.375"
Open Area: 23.0%
Hole Diameter: 0.187
Centers: 0.375
RS065
DWG
DXF
PDF

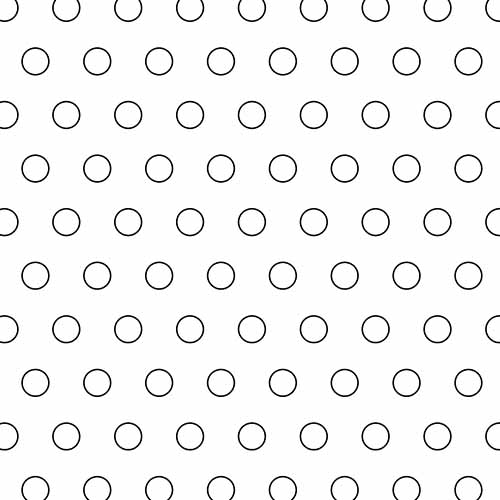

RS064

0.187" x 0.433"
Open Area: 17.0%
Hole Diameter: 0.187
Centers: 0.433
RS064
DWG
DXF
PDF

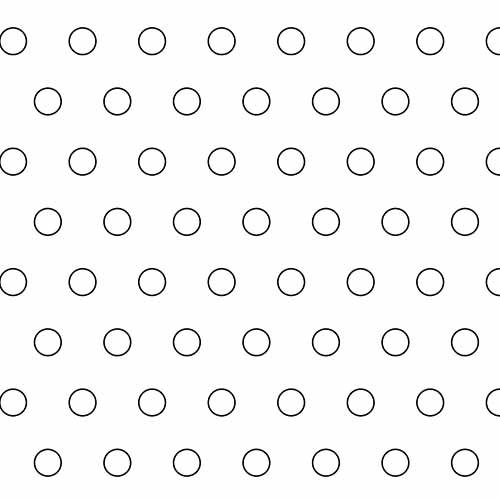

RS063

0.187" x 0.487"
Open Area: 13.0%
Hole Diameter: 0.187
Centers: 0.487
RS063
DWG
DXF
PDF

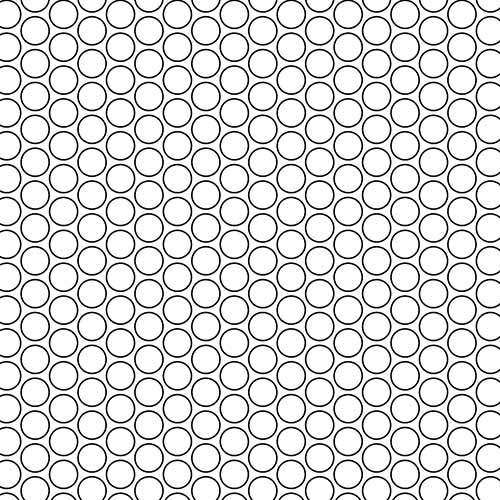

RS069

0.197" x 0.23"
Open Area: 67.0%
Hole Diameter: 0.197
Centers: 0.230
RS069
DWG
DXF
PDF

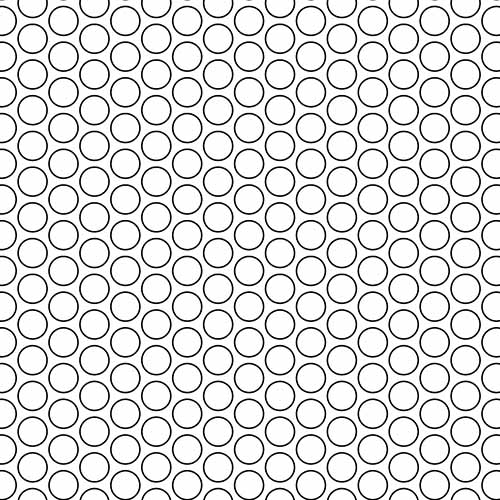

RS231

0.203" x 0.25"
Open Area: 60.0%
Hole Diameter: 0.203
Centers: 0.250
RS231
DWG
DXF
PDF

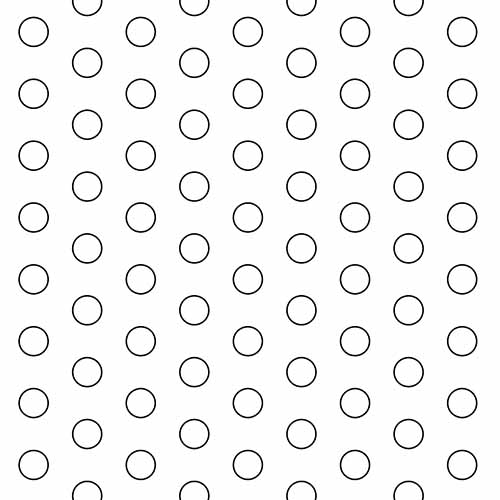

RS229

0.203" x 0.433"
Open Area: 20.0%
Hole Diameter: 0.203
Centers: 0.433
RS229
DWG
DXF
PDF

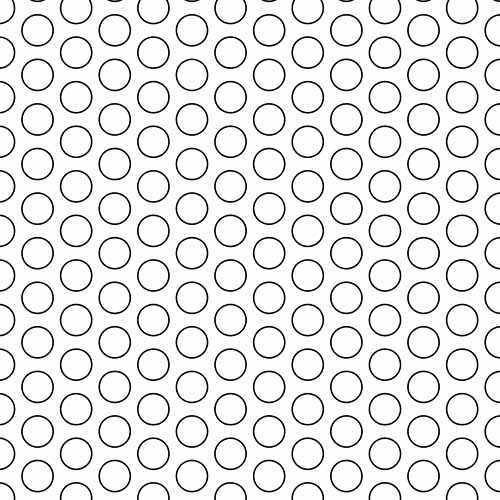

RS071

0.218" x 0.312"
Open Area: 44.0%
Hole Diameter: 0.218
Centers: 0.312
RS071
DWG
DXF
PDF

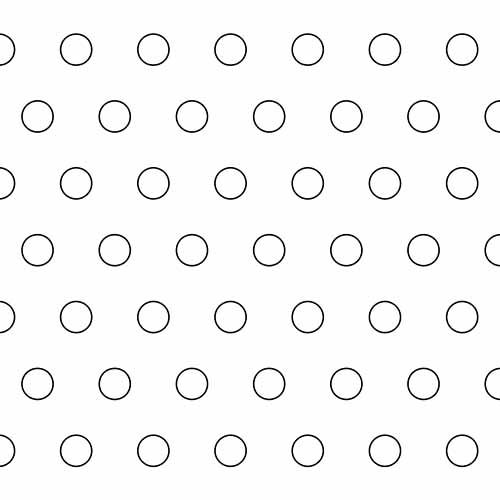

RS070

0.218" x 0.54"
Open Area: 15.0%
Hole Diameter: 0.218
Centers: 0.540
RS070
DWG
DXF
PDF

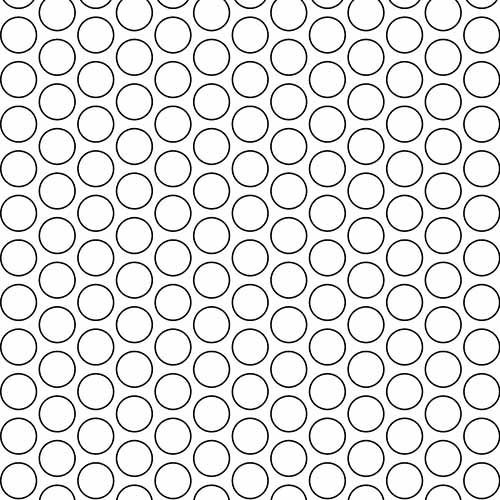

RS078

0.25" x 0.312"
Open Area: 58.0%
Hole Diameter: 0.250
Centers: 0.312
RS078
DWG
DXF
PDF

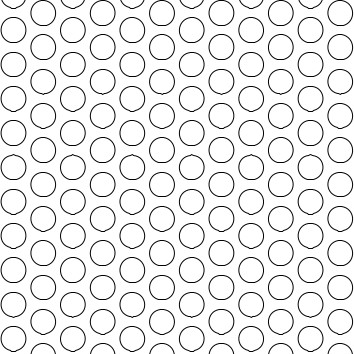

RS268

.250 x .343 Round Staggered
Open Area: 48.0%
Hole Diameter: 0.250
Centers: 0.343
DWG
DXF
PDF

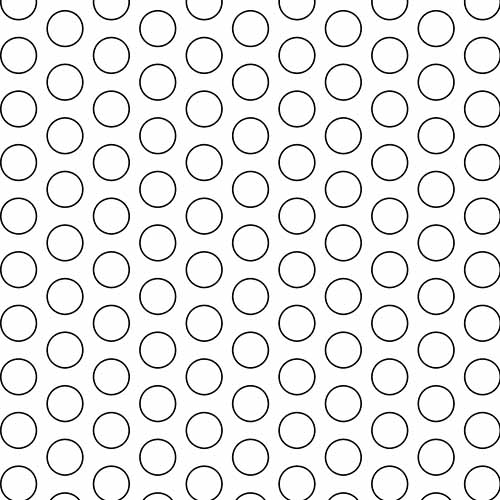

RS077

0.25" x 0.375"
Open Area: 40.0%
Hole Diameter: 0.250
Centers: 0.375
RS077
DWG
DXF
PDF

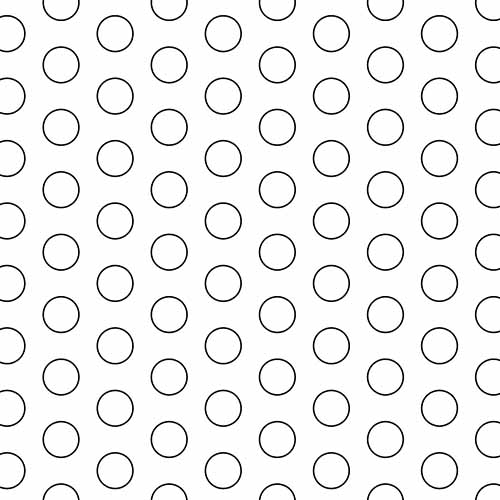

RS076

0.25" x 0.437"
Open Area: 30.0%
Hole Diameter: 0.250
Centers: 0.437
RS076
DWG
DXF
PDF

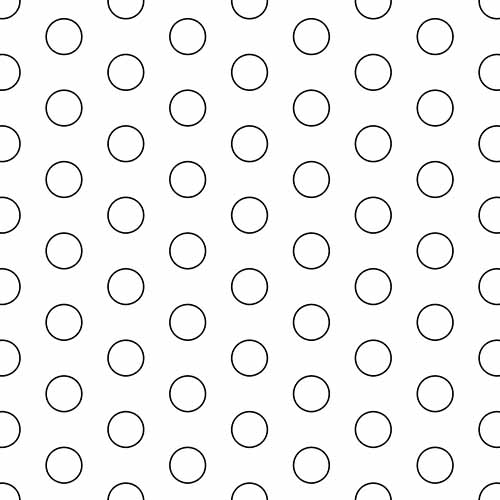

RS075

0.25" x 0.5"
Open Area: 23.0%
Hole Diameter: 0.250
Centers: 0.500
RS075
DWG
DXF
PDF

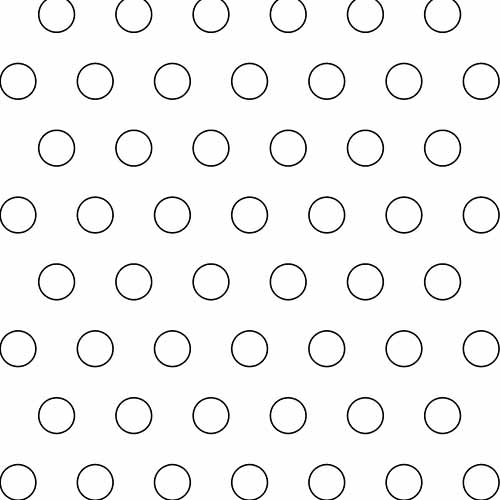

RS074

0.25" x 0.54"
Open Area: 19.0%
Hole Diameter: 0.250
Centers: 0.540
RS074
DWG
DXF
PDF

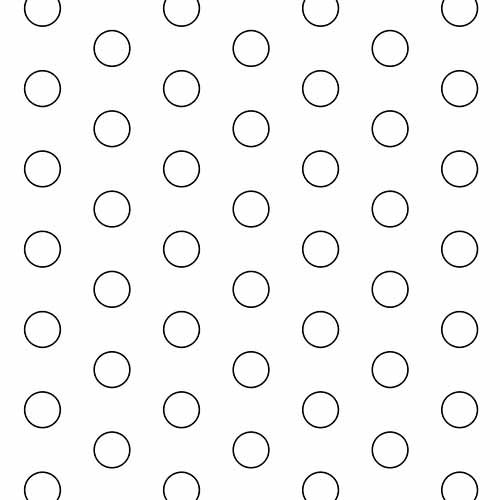

RS233

0.25" x 0.562"
Open Area: 18.0%
Hole Diameter: 0.250
Centers: 0.562
RS233
DWG
DXF
PDF

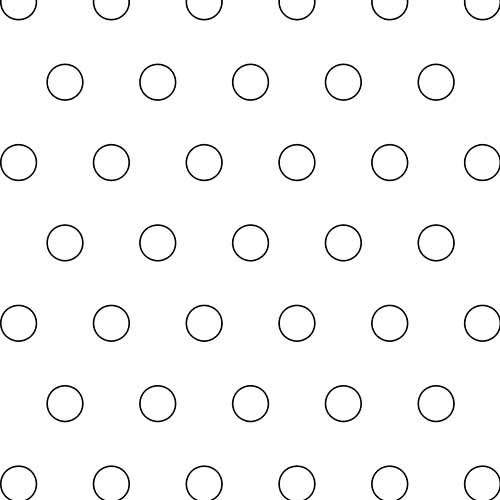

RS073

0.25" x 0.65"
Open Area: 13.0%
Hole Diameter: 0.250
Centers: 0.650
RS073
DWG
DXF
PDF

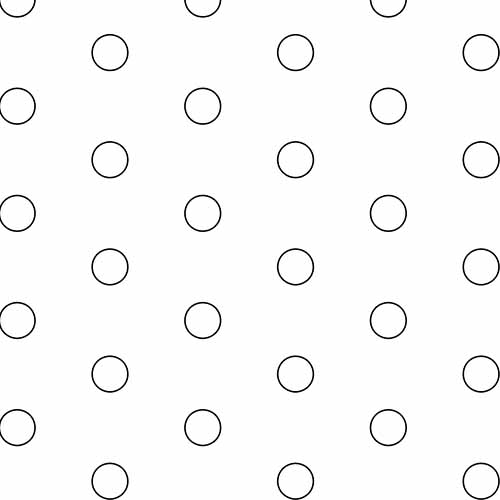

RS234

0.25" x 0.75"
Open Area: 10.0%
Hole Diameter: 0.250
Centers: 0.750
RS234
DWG
DXF
PDF

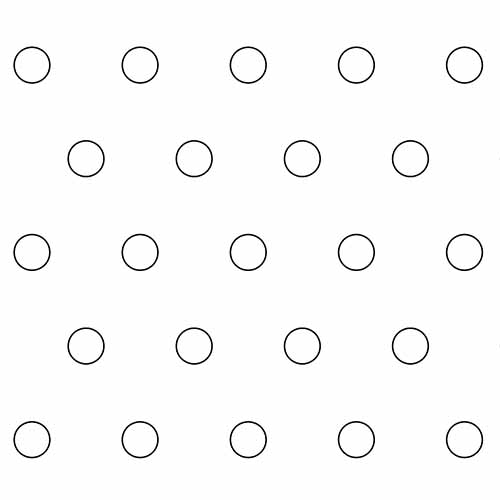

RS237

0.25" x 0.757"
Open Area: 10.0%
Hole Diameter: 0.250
Centers: 0.757
RS237
DWG
DXF
PDF

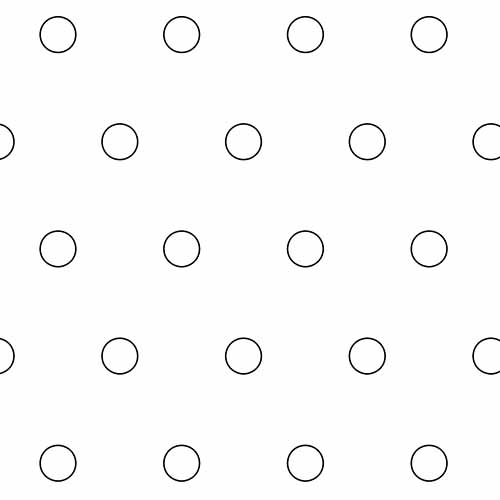

RS072

0.25" x 0.866"
Open Area: 8.0%
Hole Diameter: 0.250
Centers: 0.866
RS072
DWG
DXF
PDF

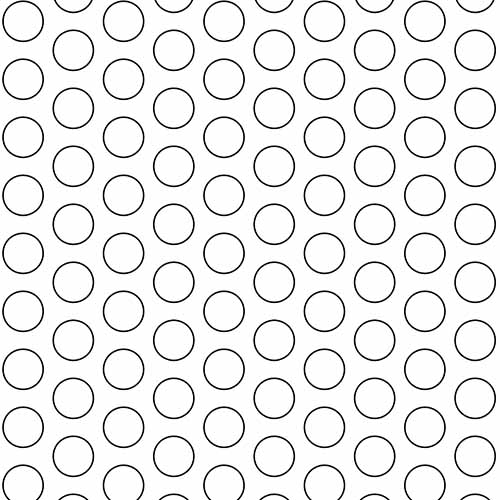

RS080

0.281" x 0.406"
Open Area: 43.0%
Hole Diameter: 0.281
Centers: 0.406
RS080
DWG
DXF
PDF

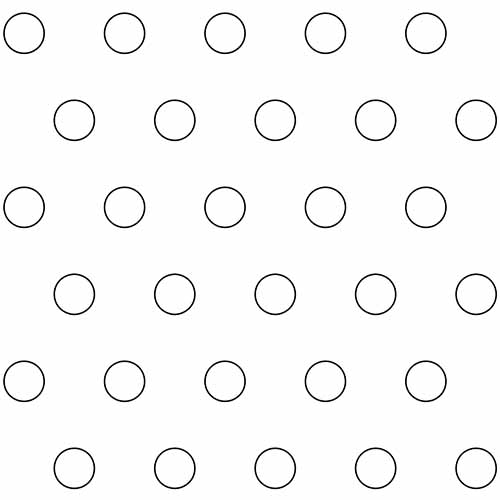

RS238

0.281" x 0.703"
Open Area: 14.0%
Hole Diameter: 0.281
Centers: 0.703
RS238
DWG
DXF
PDF

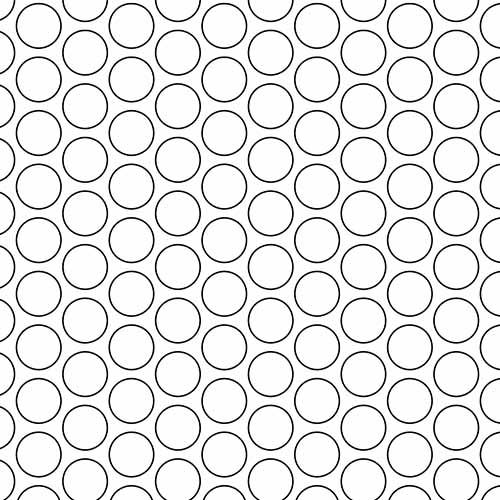

RS086

0.312" x 0.375"
Open Area: 63.0%
Hole Diameter: 0.312
Centers: 0.375
RS086
DWG
DXF
PDF

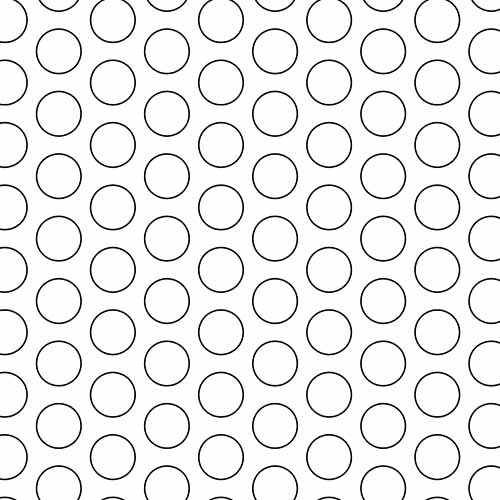

RS085

0.312" x 0.437"
Open Area: 46.0%
Hole Diameter: 0.312
Centers: 0.437
RS085
DWG
DXF
PDF

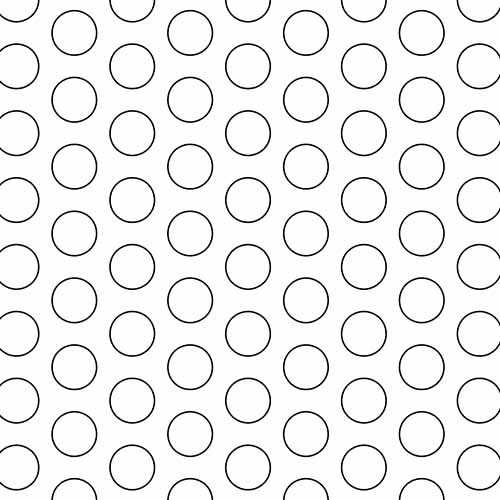

RS239

0.312" x 0.468"
Open Area: 40.0%
Hole Diameter: 0.312
Centers: 0.468
RS239
DWG
DXF
PDF

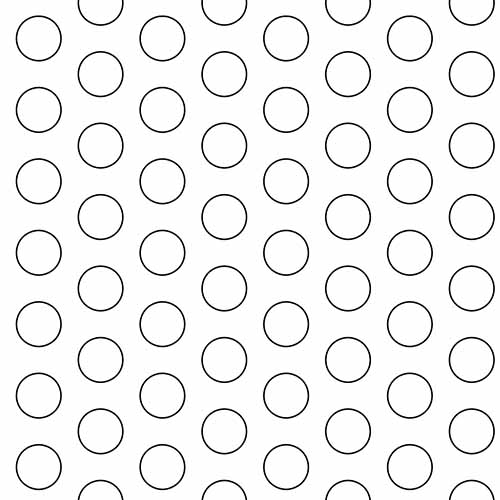

RS084

0.312" x 0.5"
Open Area: 35.0%
Hole Diameter: 0.312
Centers: 0.500
RS084
DWG
DXF
PDF

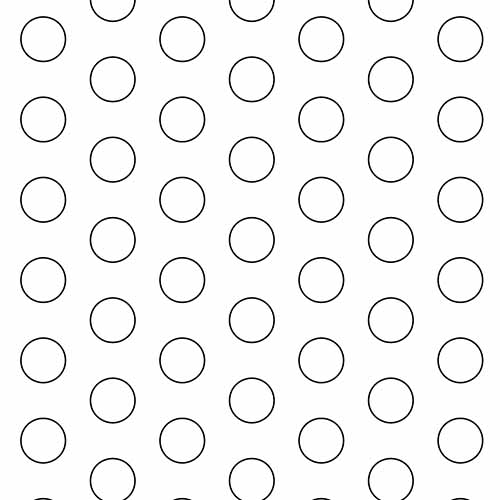

RS083

0.312" x 0.562"
Open Area: 28.0%
Hole Diameter: 0.312
Centers: 0.562
RS083
DWG
DXF
PDF

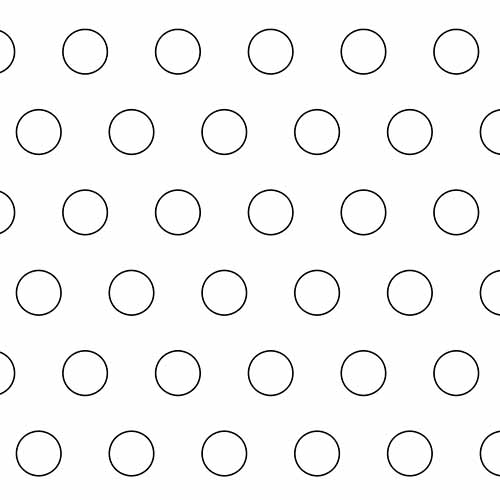

RS082

0.312" x 0.65"
Open Area: 21.0%
Hole Diameter: 0.312
Centers: 0.650
RS082
DWG
DXF
PDF

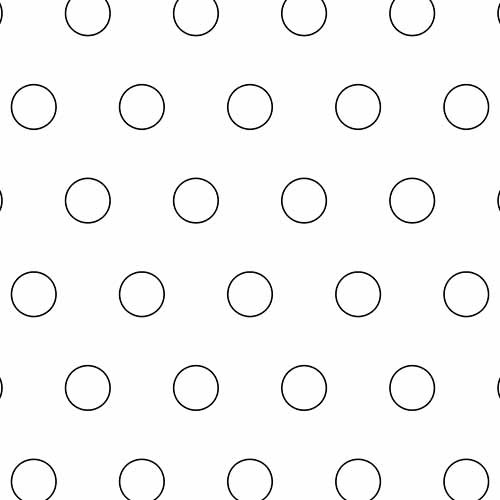

RS244

0.312" x 0.757"
Open Area: 15.0%
Hole Diameter: 0.312
Centers: 0.757
RS244
DWG
DXF
PDF

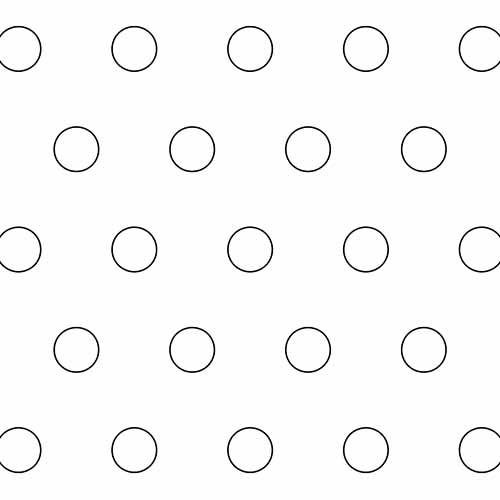

RS240

0.312" x 0.811"
Open Area: 13.0%
Hole Diameter: 0.312
Centers: 0.811
RS240
DWG
DXF
PDF

RS243

0.312" x 0.866"
Open Area: 12.0%
Hole Diameter: 0.312
Centers: 0.866
RS243
DWG
DXF
PDF

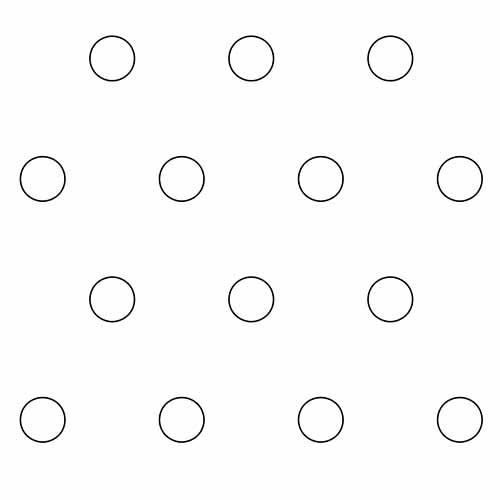

RS242

0.312" x 0.973"
Open Area: 9.0%
Hole Diameter: 0.312
Centers: 0.973
RS242
DWG
DXF
PDF

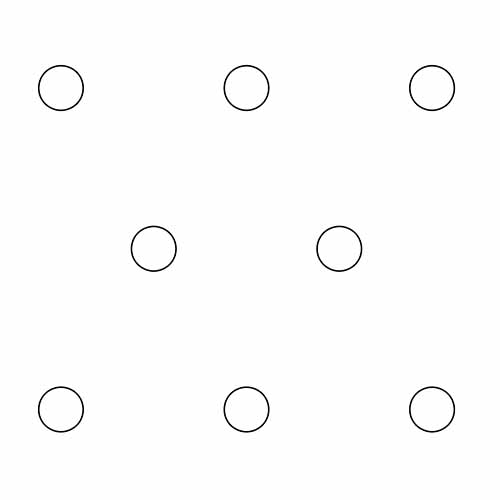

RS241

0.312" x 1.299"
Open Area: 5.0%
Hole Diameter: 0.312
Centers: 1.299
RS241
DWG
DXF
PDF

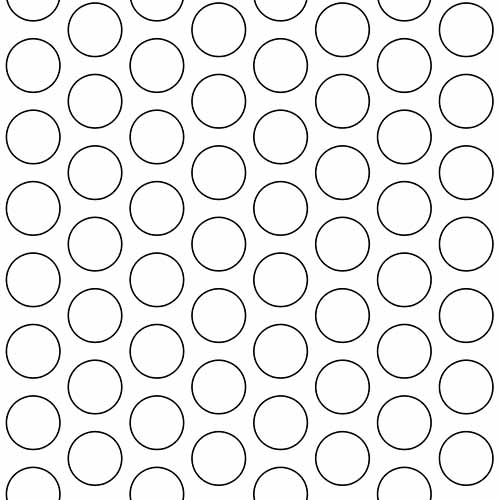

RS090

0.375" x 0.5"
Open Area: 51.0%
Hole Diameter: 0.375
Centers: 0.500
RS090
DWG
DXF
PDF

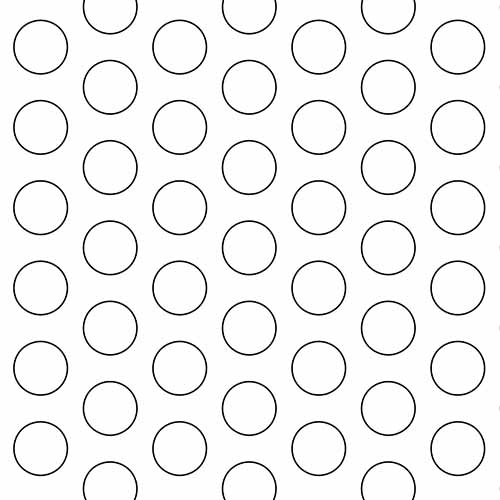

RS089

0.375" x 0.562"
Open Area: 40.0%
Hole Diameter: 0.375
Centers: 0.562
RS089
DWG
DXF
PDF

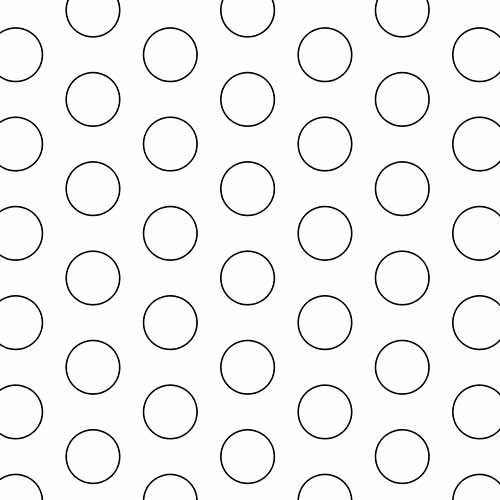

RS252

0.375" x 0.625"
Open Area: 33.0%
Hole Diameter: 0.375
Centers: 0.625
RS252
DWG
DXF
PDF

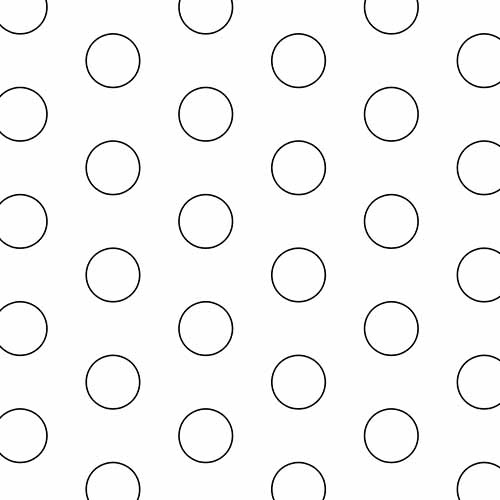

RS087

0.375" x 0.75"
Open Area: 23.0%
Hole Diameter: 0.375
Centers: 0.750
RS087
DWG
DXF
PDF

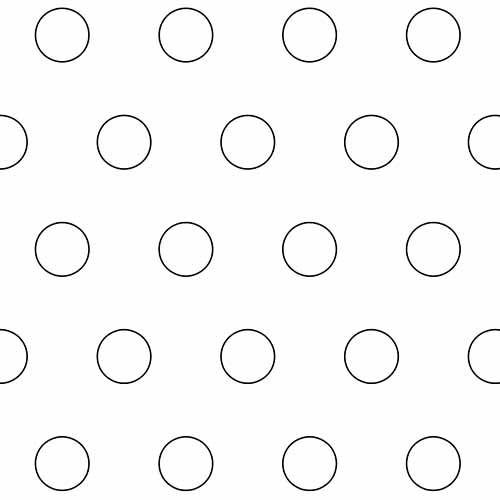

RS251

0.375" x 0.866"
Open Area: 17.0%
Hole Diameter: 0.375
Centers: 0.866
RS251
DWG
DXF
PDF

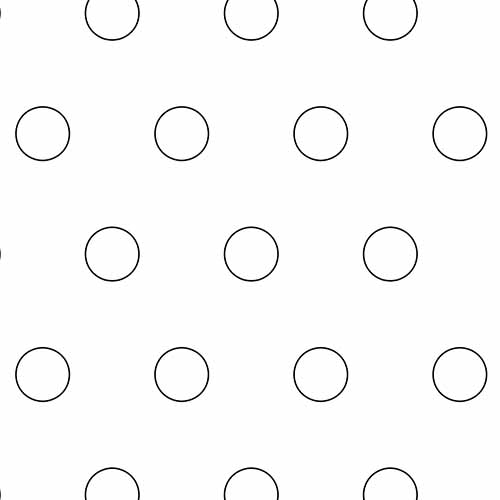

RS253

0.375" x 0.973"
Open Area: 13.0%
Hole Diameter: 0.375
Centers: 0.973
RS253
DWG
DXF
PDF

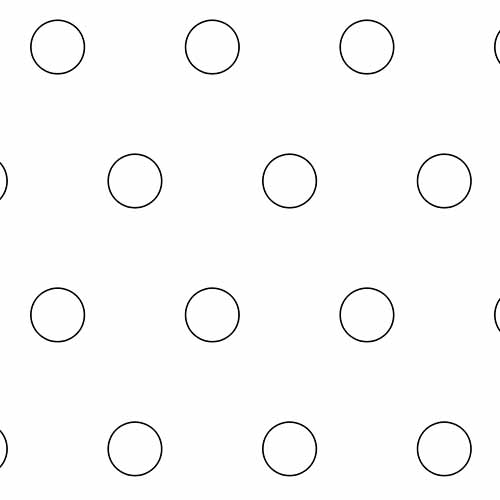

RS254

0.375" x 1.083"
Open Area: 11.0%
Hole Diameter: 0.375
Centers: 1.083
RS254
DWG
DXF
PDF

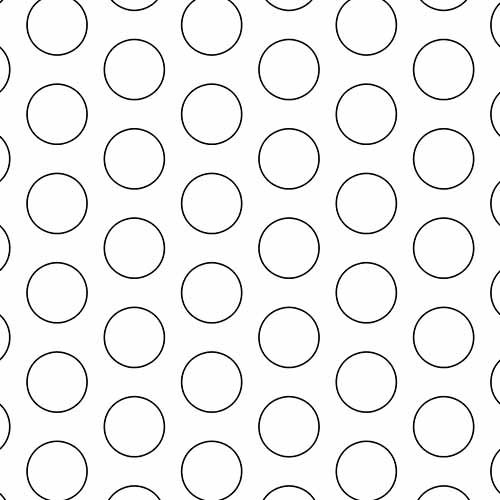

RS258

0.421" x 0.625"
Open Area: 41.0%
Hole Diameter: 0.421
Centers: 0.625
RS258
DWG
DXF
PDF

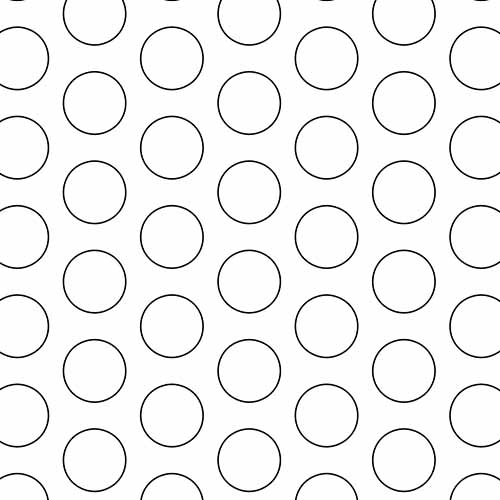

RS092

0.437" x 0.625"
Open Area: 44.0%
Hole Diameter: 0.437
Centers: 0.625
RS092
DWG
DXF
PDF

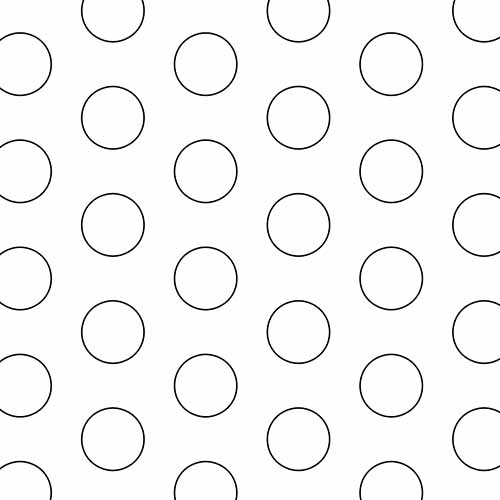

RS091

0.437" x 0.75"
Open Area: 31.0%
Hole Diameter: 0.437
Centers: 0.750
RS091
DWG
DXF
PDF

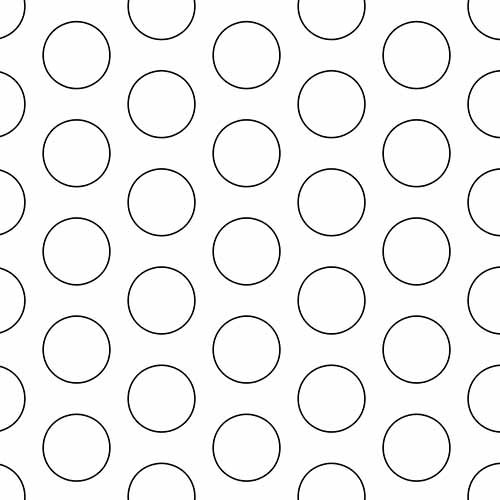

RS259

0.468" x 0.687"
Open Area: 42.0%
Hole Diameter: 0.468
Centers: 0.687
RS259
DWG
DXF
PDF

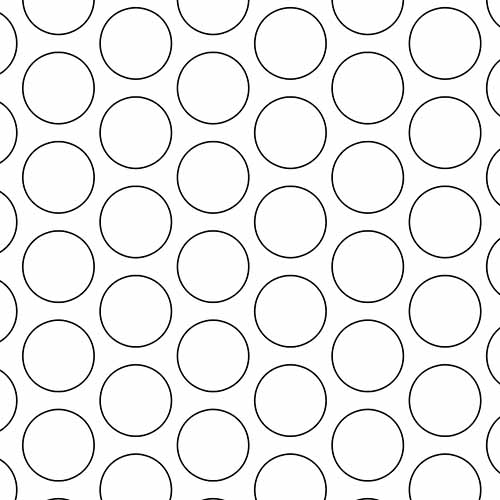

RS097

0.5" x 0.625"
Open Area: 58.0%
Hole Diameter: 0.500
Centers: 0.625
RS097
DWG
DXF
PDF

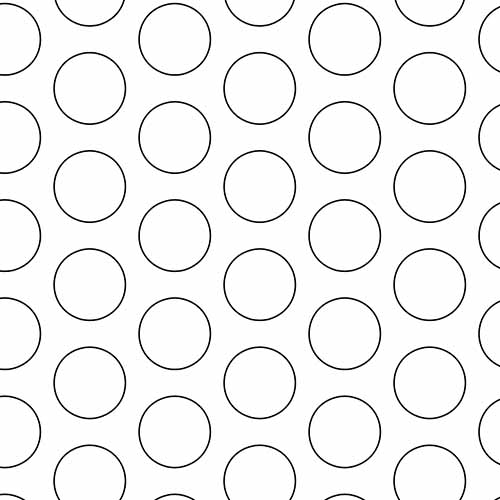

RS096

0.5" x 0.687"
Open Area: 48.0%
Hole Diameter: 0.500
Centers: 0.687
RS096
DWG
DXF
PDF

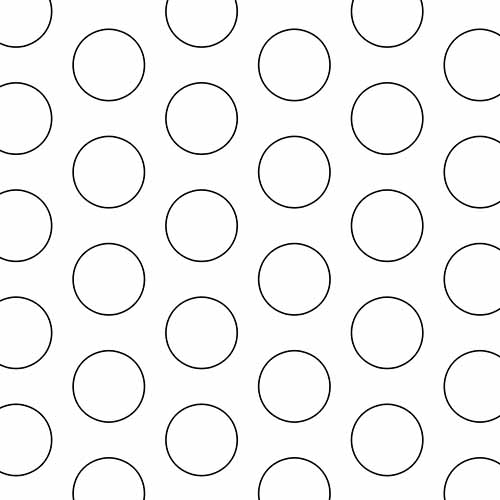

RS095

0.5" x 0.75"
Open Area: 40.0%
Hole Diameter: 0.500
Centers: 0.750
RS095
DWG
DXF
PDF

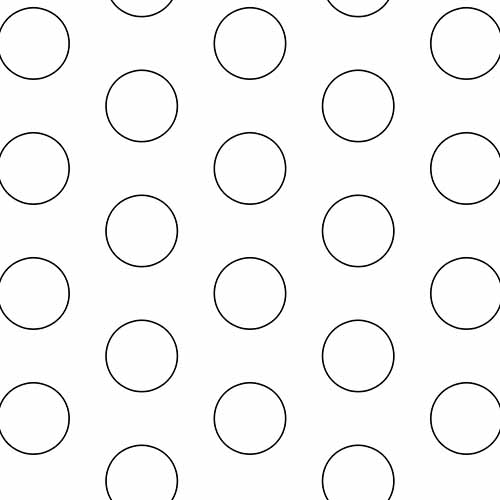

RS094

0.5" x 0.875"
Open Area: 30.0%
Hole Diameter: 0.500
Centers: 0.875
RS094
DWG
DXF
PDF

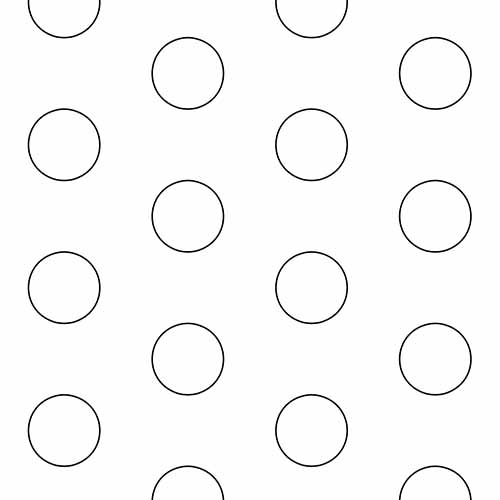

RS260

0.5" x 1"
Open Area: 23.0%
Hole Diameter: 0.500
Centers: 1.000
RS260
DWG
DXF
PDF

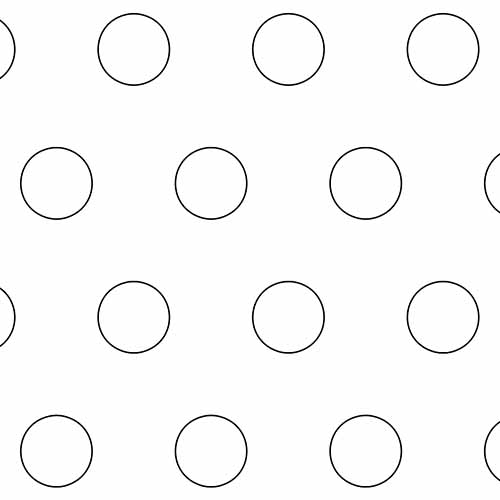

RS262

0.5" x 1.083"
Open Area: 19.0%
Hole Diameter: 0.500
Centers: 1.083
RS262
DWG
DXF
PDF

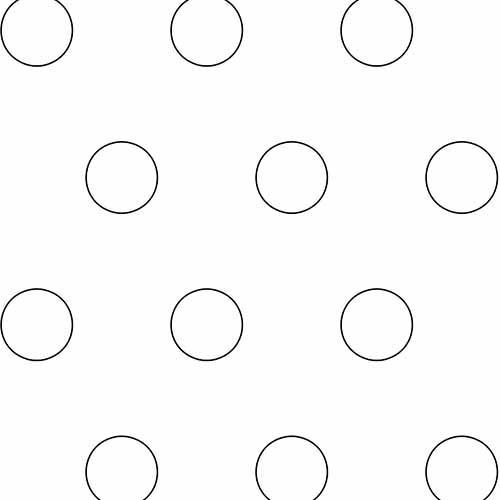

RS093

0.5" x 1.19"
Open Area: 16.0%
Hole Diameter: 0.500
Centers: 1.190
RS093
DWG
DXF
PDF

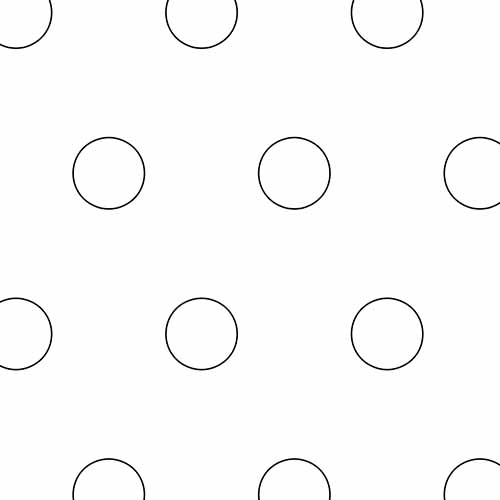

RS261

0.5" x 1.299"
Open Area: 13.0%
Hole Diameter: 0.500
Centers: 1.299
RS261
DWG
DXF
PDF

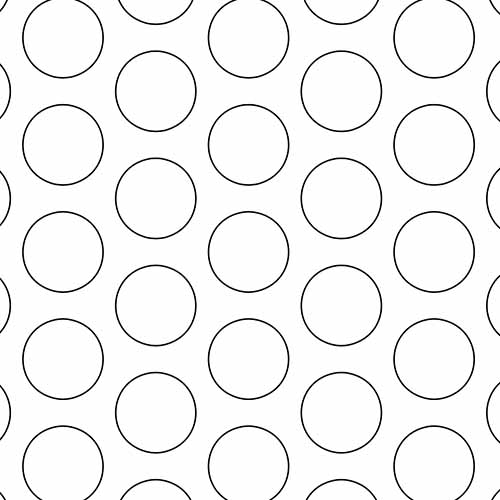

RS263

0.562" x 0.75"
Open Area: 51.0%
Hole Diameter: 0.562
Centers: 0.750
RS263
DWG
DXF
PDF

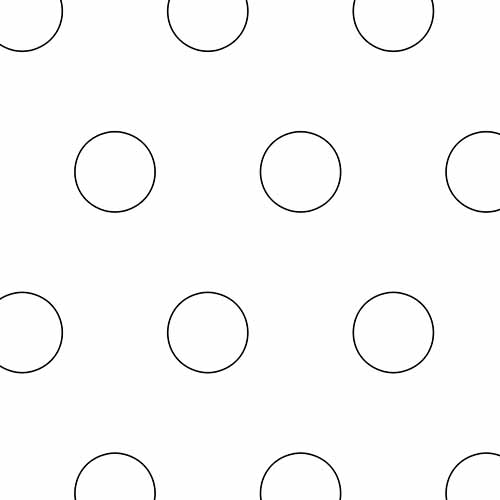

RS264

0.562" x 1.299"
Open Area: 17.0%
Hole Diameter: 0.562
Centers: 1.299
RS264
DWG
DXF
PDF

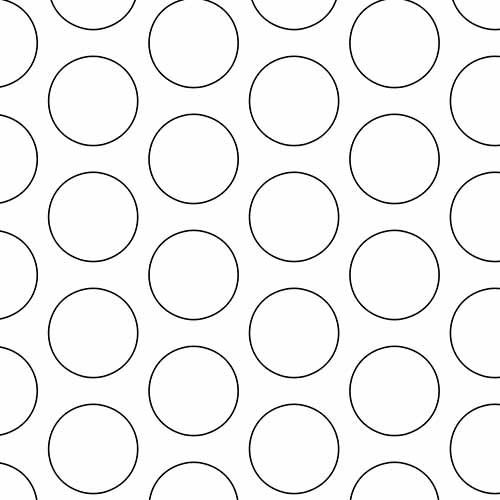

RS100

0.625" x 0.812"
Open Area: 54.0%
Hole Diameter: 0.625
Centers: 0.812
RS100
DWG
DXF
PDF

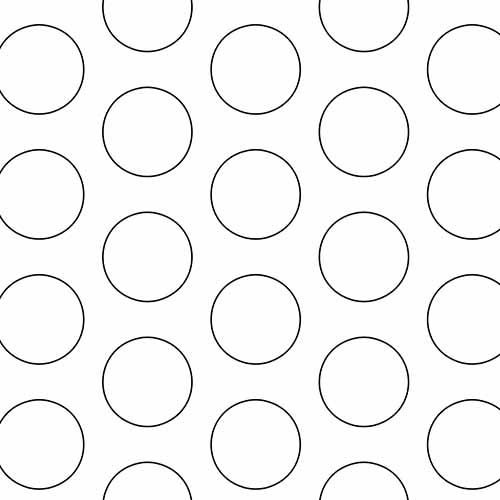

RS099

0.625" x 0.875"
Open Area: 46.0%
Hole Diameter: 0.625
Centers: 0.875
RS099
DWG
DXF
PDF

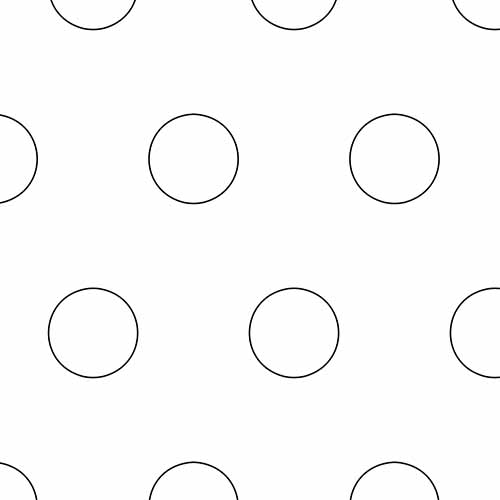

RS098

0.625" x 1.406"
Open Area: 18.0%
Hole Diameter: 0.625
Centers: 1.406
RS098
DWG
DXF
PDF

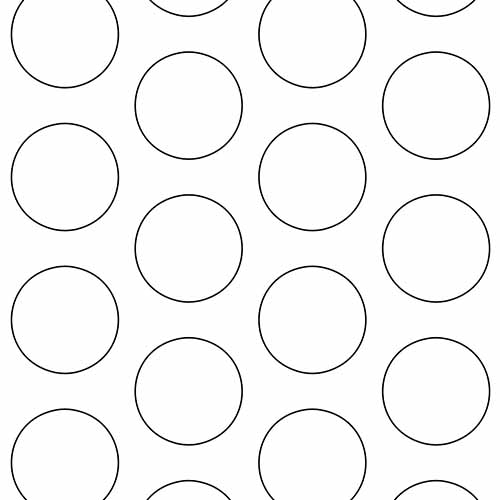

RS104

0.75" x 1"
Open Area: 51.0%
Hole Diameter: 0.750
Centers: 1.000
RS104
DWG
DXF
PDF

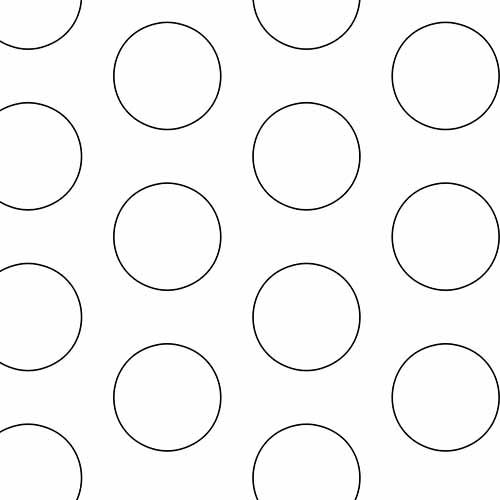

RS103

0.75" x 1.125"
Open Area: 40.0%
Hole Diameter: 0.750
Centers: 1.125
RS103
DWG
DXF
PDF

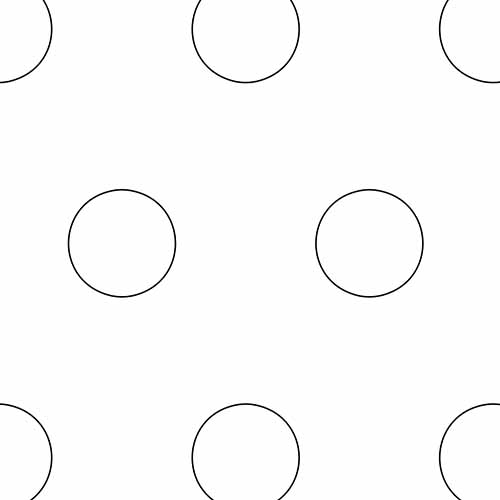

RS102

0.75" x 1.732"
Open Area: 17.0%
Hole Diameter: 0.750
Centers: 1.732
RS102
DWG
DXF
PDF

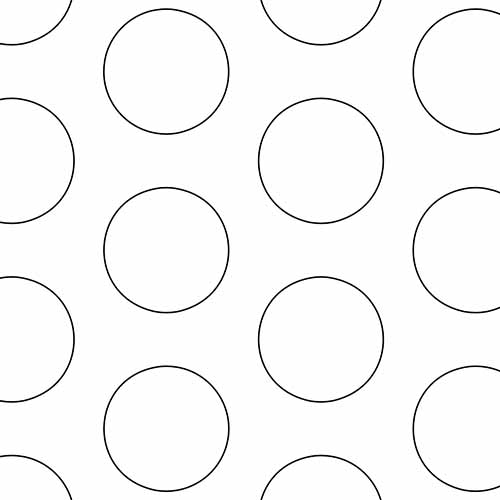

RS106

0.875" x 1.25"
Open Area: 44.0%
Hole Diameter: 0.875
Centers: 1.250
RS106
DWG
DXF
PDF

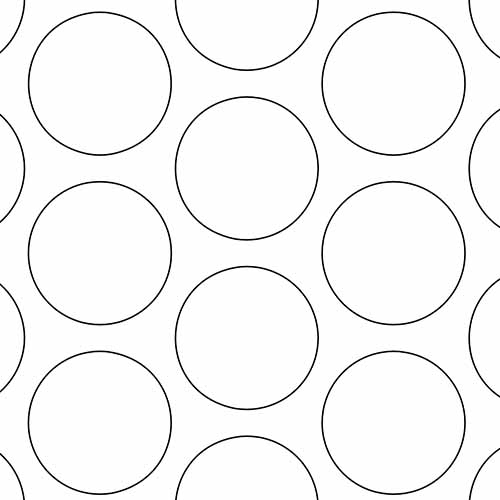

RS267

1" x 1.187"
Open Area: 64.0%
Hole Diameter: 1.000
Centers: 1.187
RS267
DWG
DXF
PDF

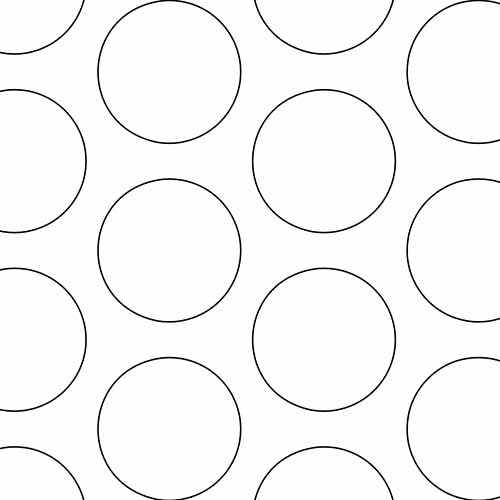

RS109

1" x 1.25"
Open Area: 58.0%
Hole Diameter: 1.000
Centers: 1.250
RS109
DWG
DXF
PDF

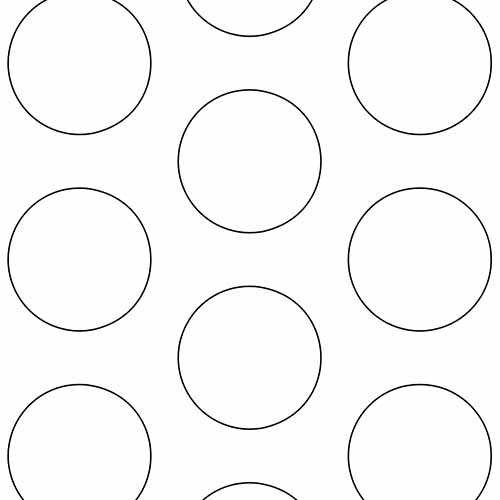

RS108

1" x 1.375"
Open Area: 48.0%
Hole Diameter: 1.000
Centers: 1.375
RS108
DWG
DXF
PDF

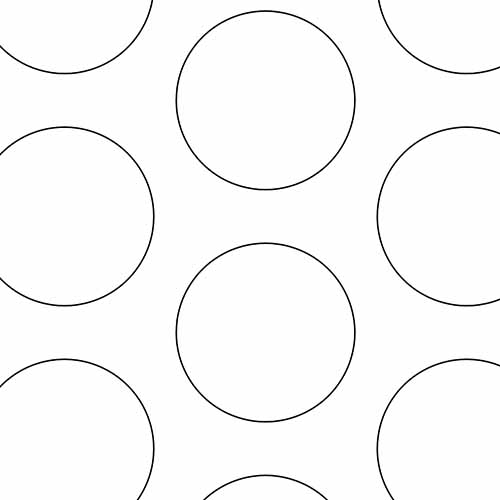

RS111

1.25" x 1.625"
Open Area: 54.0%
Hole Diameter: 1.250
Centers: 1.625
RS111
DWG
DXF
PDF

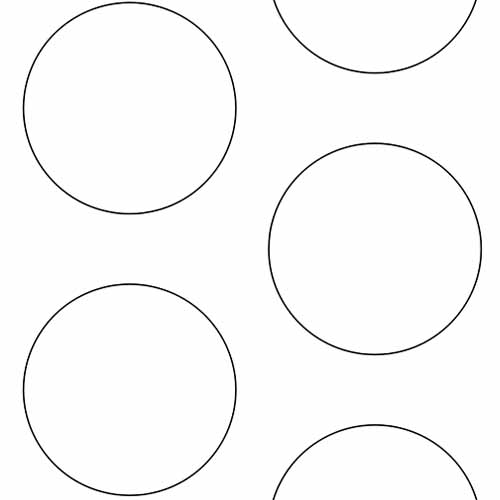

RS112

1.5" x 2"
Open Area: 51.0%
Hole Diameter: 1.500
Centers: 2.000
RS112
DWG
DXF
PDF

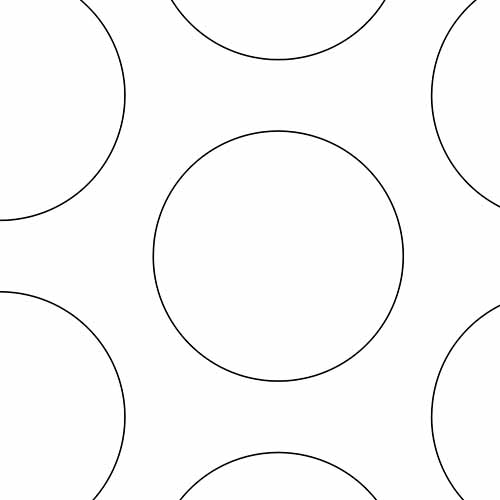

RS113

1.75" x 2.25"
Open Area: 55.0%
Hole Diameter: 1.750
Centers: 2.250
RS113
DWG
DXF
PDF

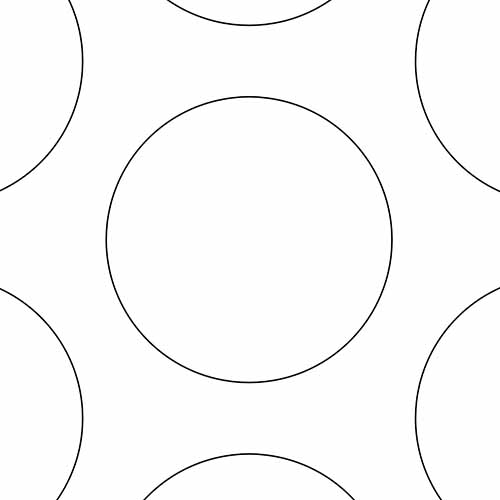

RS115

2" x 2.5"
Open Area: 58.0%
Hole Diameter: 2.000
Centers: 2.500
RS115
DWG
DXF
PDF

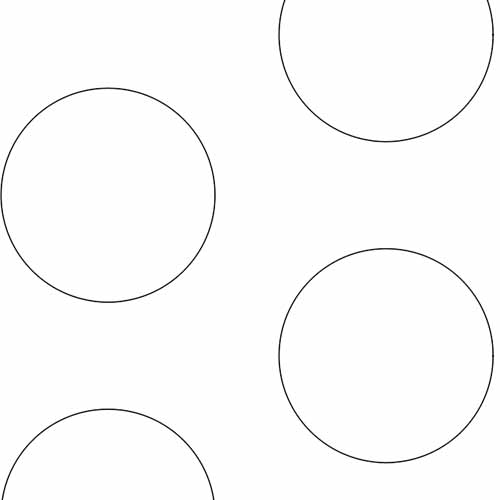

RS114

2" x 3"
Open Area: 40.0%
Hole Diameter: 2.000
Centers: 3.000
RS114
DWG
DXF
PDF

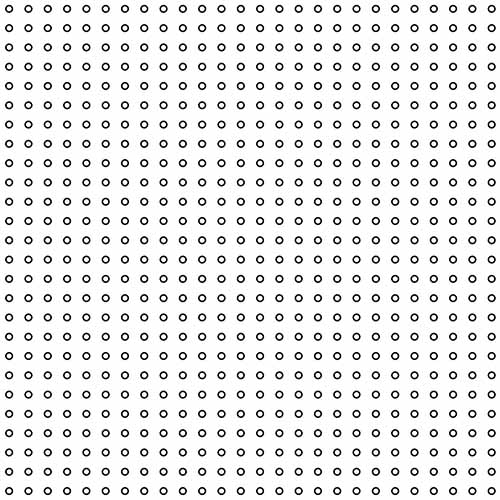

RST130

0.046" x 0.135"
Open Area: 9.0%
Hole Diameter: 0.046
Centers: 0.135
DWG
DXF
PDF

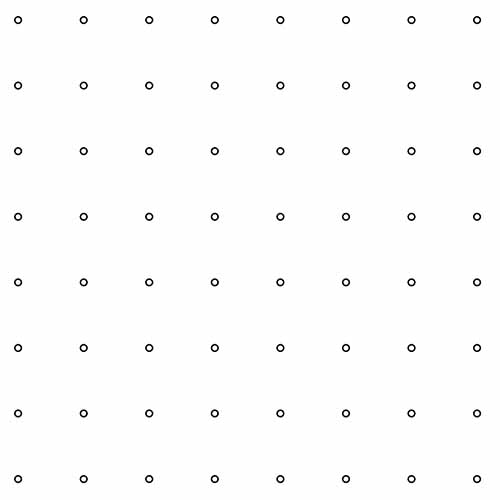

RST131

0.046" x 0.459"
Open Area: 1.0%
Hole Diameter: 0.046
Centers: 0.459
DWG
DXF
PDF

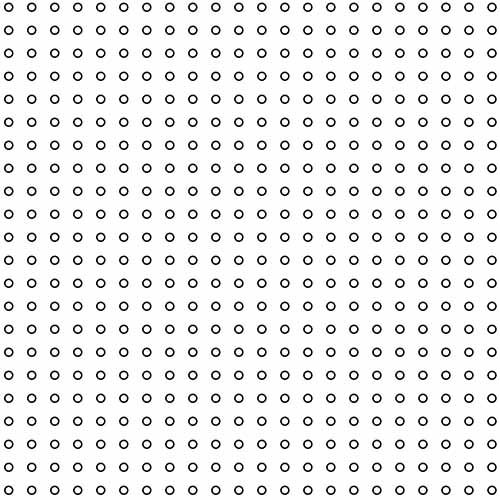

RST160

0.055" x 0.161"
Open Area: 9.0%
Hole Diameter: 0.055
Centers: 0.161
DWG
DXF
PDF

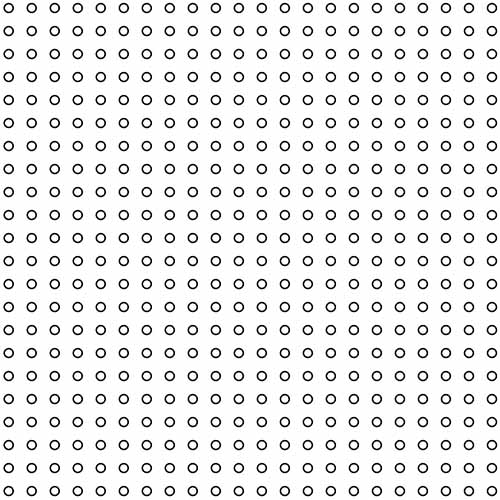

RST101

0.062" x 0.161"
Open Area: 12.0%
Hole Diameter: 0.062
Centers: 0.161
DWG
DXF
PDF

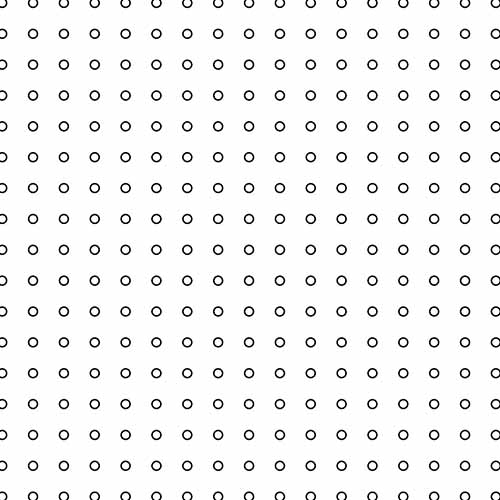

RST100

0.062" x 0.216"
Open Area: 6.0%
Hole Diameter: 0.062
Centers: 0.216
DWG
DXF
PDF

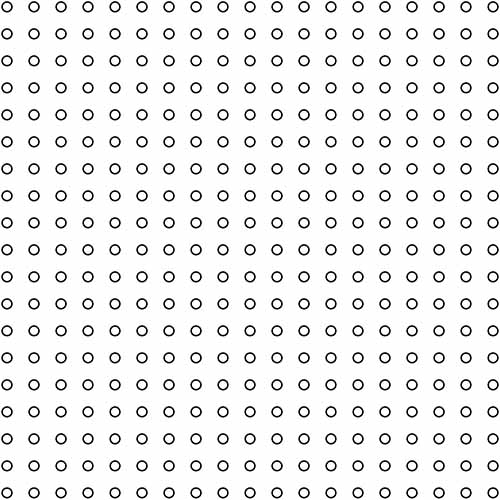

RST133

0.068" x 0.189"
Open Area: 10.0%
Hole Diameter: 0.068
Centers: 0.189
RST133
DWG
DXF
PDF

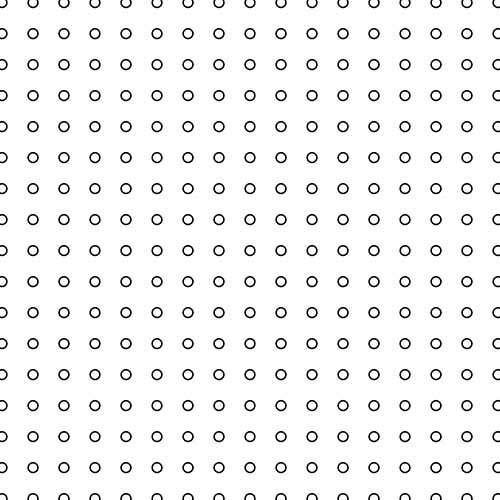

RST102

0.068" x 0.217"
Open Area: 8.0%
Hole Diameter: 0.068
Centers: 0.217
RST102
DWG
DXF
PDF

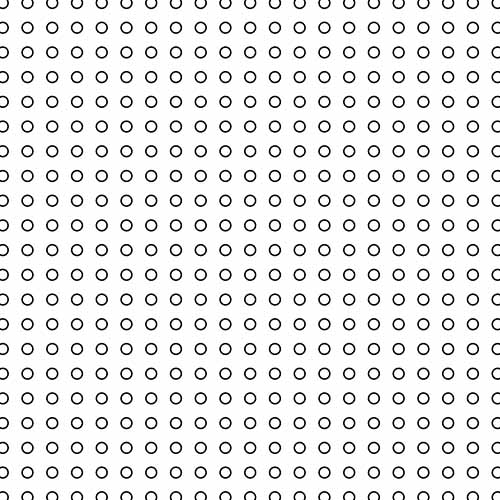

RST103

0.075" x 0.173"
Open Area: 15.0%
Hole Diameter: 0.075
Centers: 0.173
RST103
DWG
DXF
PDF

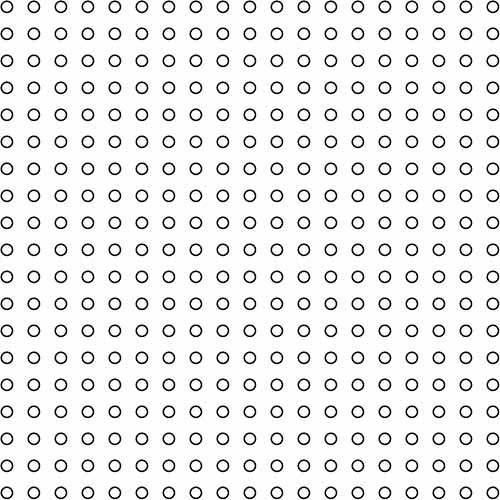

RST104

0.078" x 0.189"
Open Area: 13.0%
Hole Diameter: 0.078
Centers: 0.189
RST104
DWG
DXF
PDF

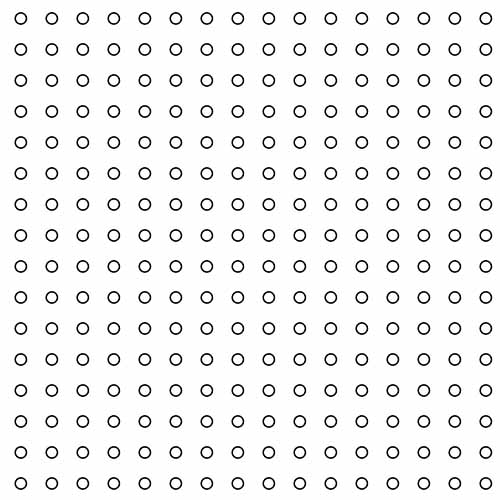

RST135

0.078" x 0.217"
Open Area: 10.0%
Hole Diameter: 0.078
Centers: 0.217
RST135
DWG
DXF
PDF

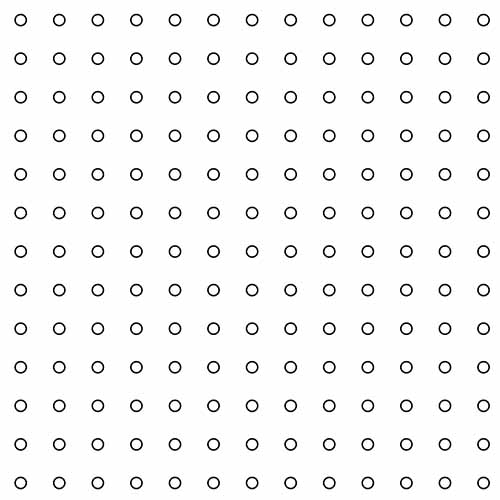

RST134

0.078" x 0.27"
Open Area: 7.0%
Hole Diameter: 0.078
Centers: 0.270
RST134
DWG
DXF
PDF

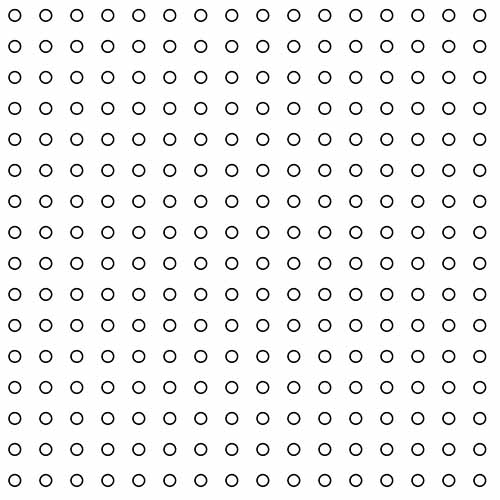

RST136

0.081" x 0.217"
Open Area: 11.0%
Hole Diameter: 0.081
Centers: 0.217
RST136
DWG
DXF
PDF

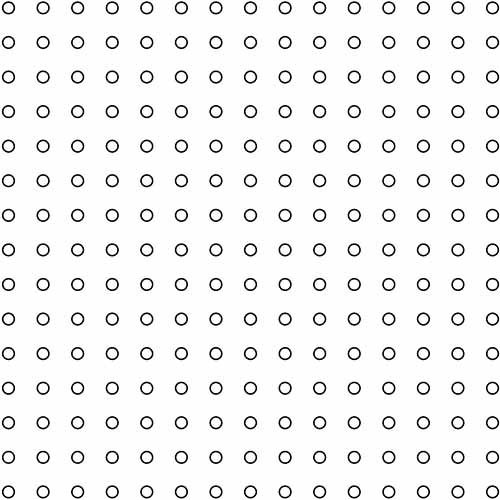

RST137

0.081" x 0.242"
Open Area: 9.0%
Hole Diameter: 0.081
Centers: 0.242
RST137
DWG
DXF
PDF

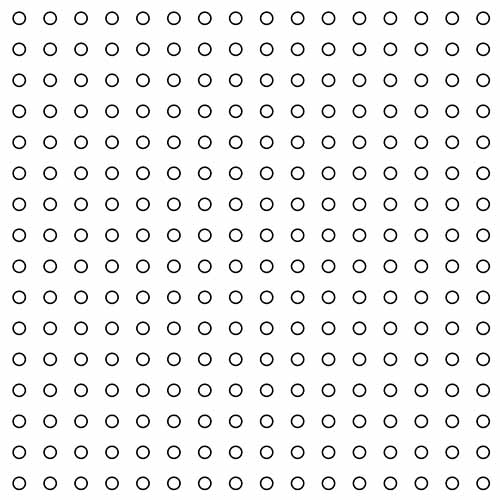

RST138

0.085" x 0.217"
Open Area: 12.0%
Hole Diameter: 0.085
Centers: 0.217
RST138
DWG
DXF
PDF

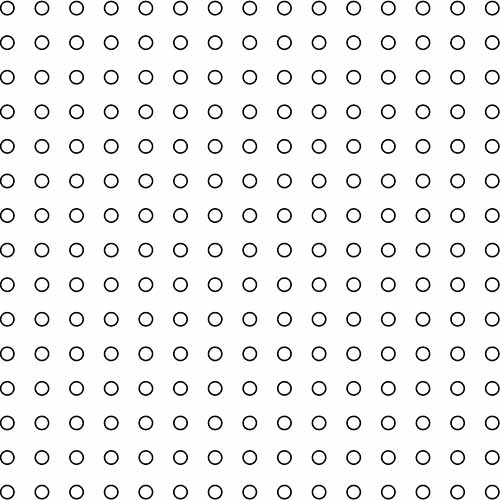

RST146

0.093" x 0.242"
Open Area: 12.0%
Hole Diameter: 0.093
Centers: 0.242
RST146
DWG
DXF
PDF

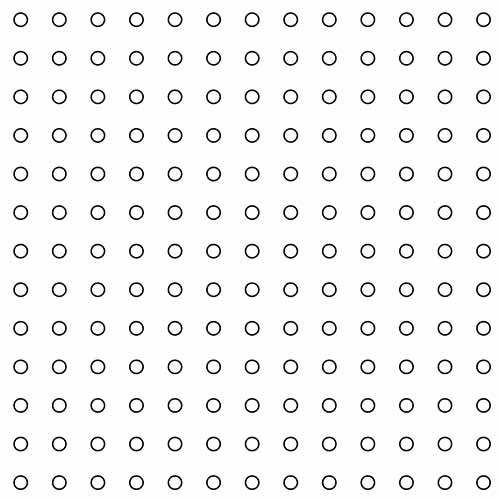

RST107

0.093" x 0.27"
Open Area: 9.0%
Hole Diameter: 0.093
Centers: 0.270
RST107
DWG
DXF
PDF

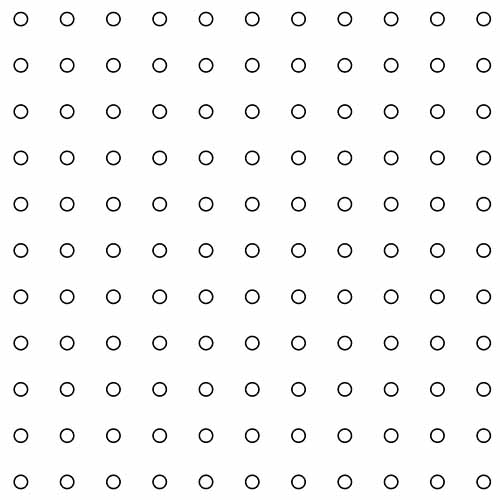

RST106

0.093" x 0.324"
Open Area: 6.0%
Hole Diameter: 0.093
Centers: 0.324
RST106
DWG
DXF
PDF

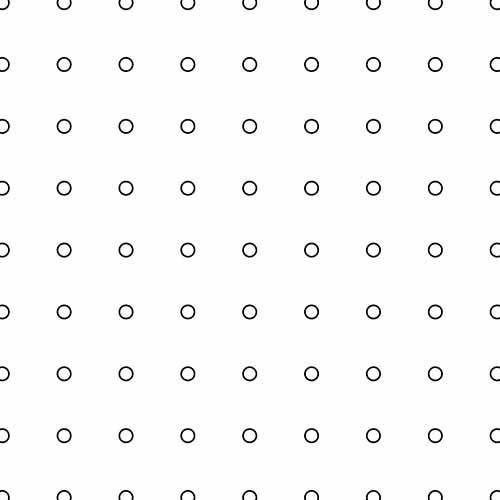

RST105

0.093" x 0.433"
Open Area: 3.0%
Hole Diameter: 0.093
Centers: 0.433
RST105
DWG
DXF
PDF

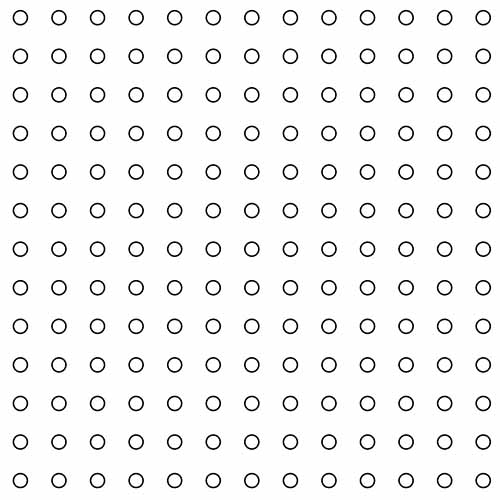

RST140

0.098" x 0.27"
Open Area: 10.0%
Hole Diameter: 0.098
Centers: 0.270
RST140
DWG
DXF
PDF

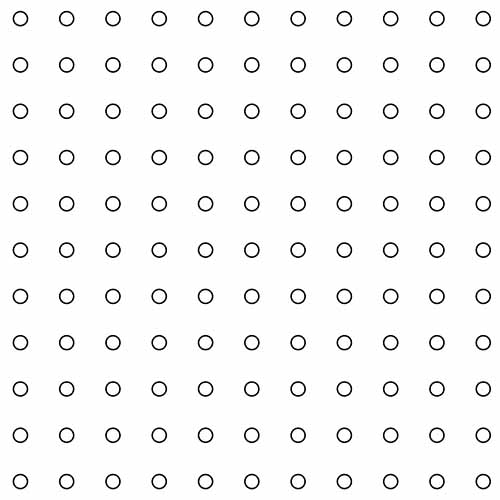

RST139

0.098" x 0.324"
Open Area: 7.0%
Hole Diameter: 0.098
Centers: 0.324
RST139
DWG
DXF
PDF

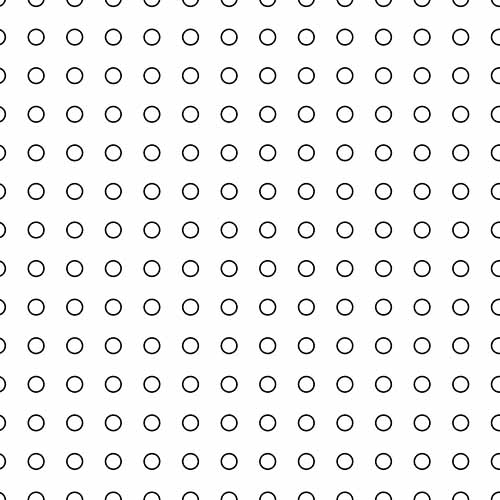

RST108

0.109" x 0.27"
Open Area: 13.0%
Hole Diameter: 0.109
Centers: 0.270
RST108
DWG
DXF
PDF

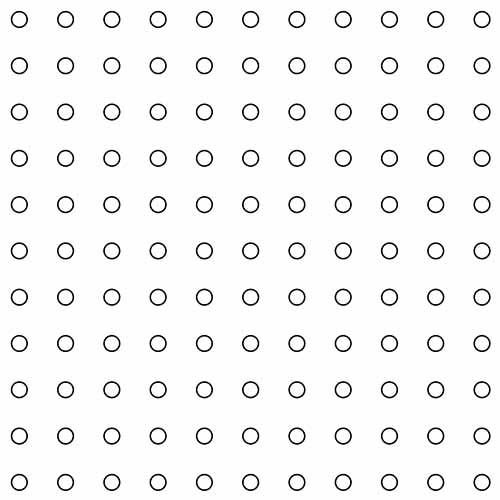

RST141

0.109" x 0.324"
Open Area: 9.0%
Hole Diameter: 0.109
Centers: 0.324
RST141
DWG
DXF
PDF

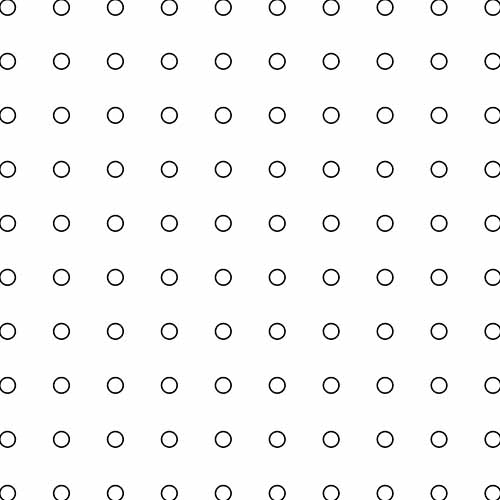

RST142

0.109" x 0.378"
Open Area: 7.0%
Hole Diameter: 0.109
Centers: 0.378
RST142
DWG
DXF
PDF

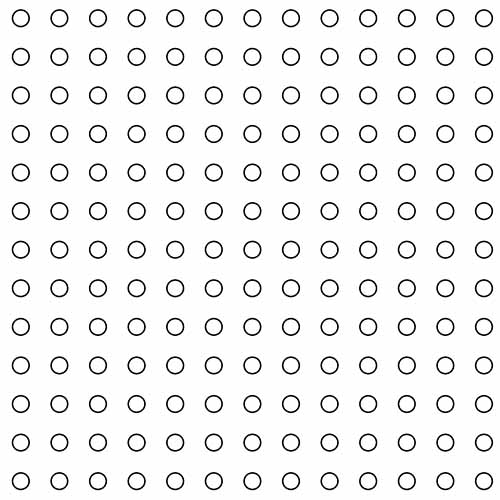

RST109

0.116" x 0.27"
Open Area: 15.0%
Hole Diameter: 0.116
Centers: 0.270
RST109
DWG
DXF
PDF

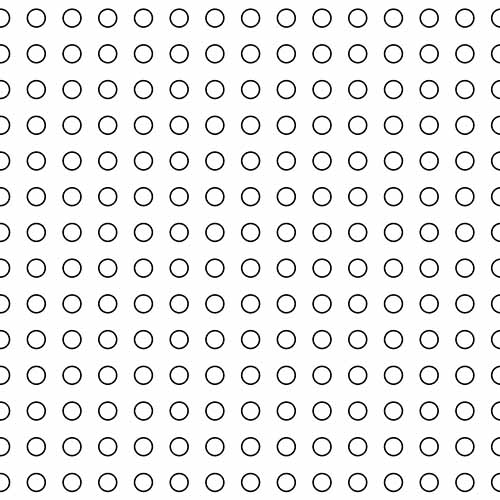

RST003

0.125" x 0.25"
Open Area: 20.0%
Hole Diameter: 0.125
Centers: 0.250
RST003
DWG
DXF
PDF

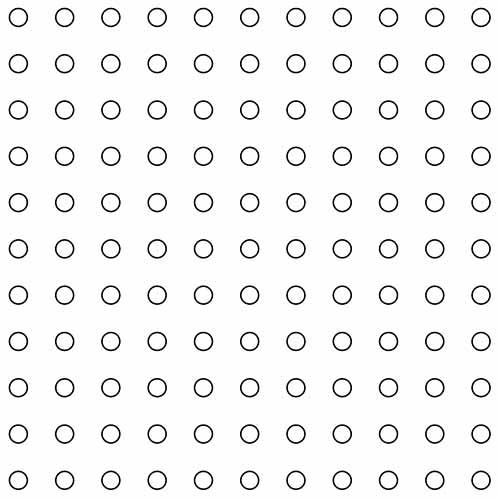

RST112

0.125" x 0.324"
Open Area: 12.0%
Hole Diameter: 0.125
Centers: 0.324
RST112
DWG
DXF
PDF

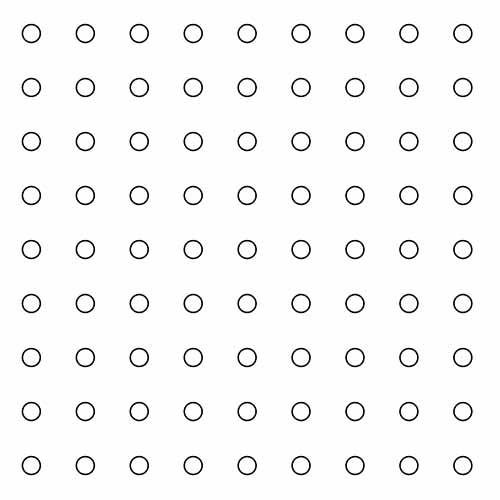

RST111

0.125" x 0.378"
Open Area: 9.0%
Hole Diameter: 0.125
Centers: 0.378
RST111
DWG
DXF
PDF

RST110

0.125" x 0.433"
Open Area: 7.0%
Hole Diameter: 0.125
Centers: 0.433

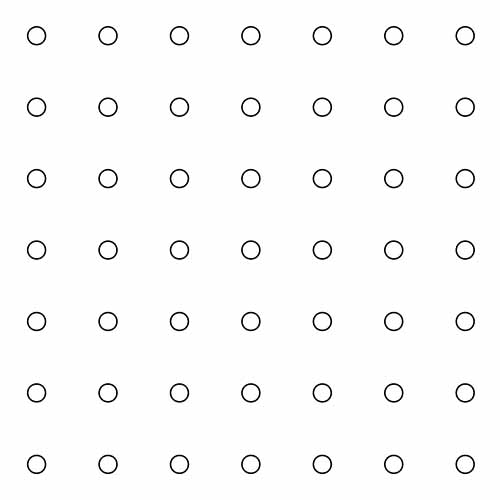

RST002

0.125" x 0.5"
Open Area: 5.0%
Hole Diameter: 0.125
Centers: 0.500
RST002
DWG
DXF
PDF

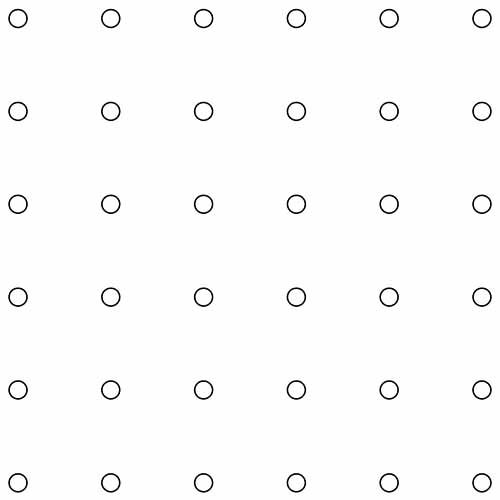

RST143

0.125" x 0.65"
Open Area: 3.0%
Hole Diameter: 0.125
Centers: 0.650
RST143
DWG
DXF
PDF

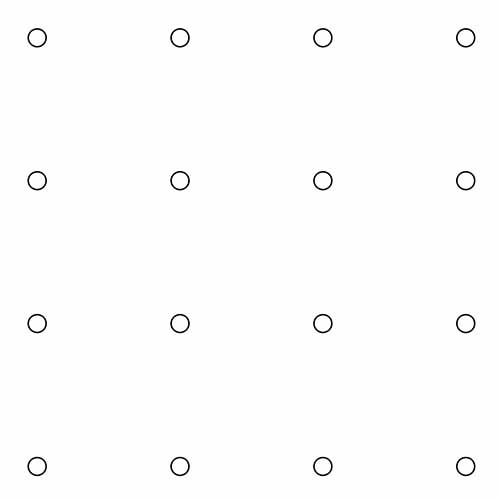

RST001

0.125" x 1"
Open Area: 1.0%
Hole Diameter: 0.125
Centers: 1.000
RST001
DWG
DXF
PDF

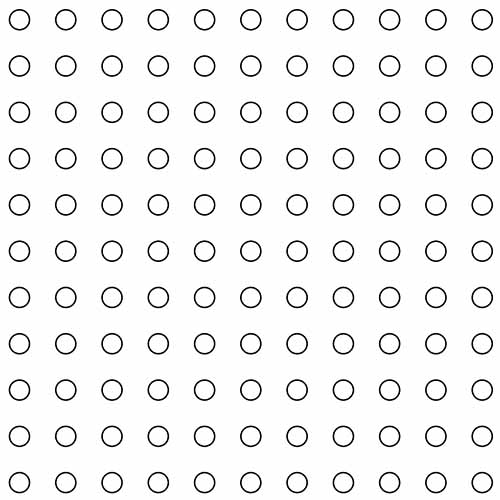

RST115

0.14" x 0.324"
Open Area: 15.0%
Hole Diameter: 0.140
Centers: 0.324
RST115
DWG
DXF
PDF

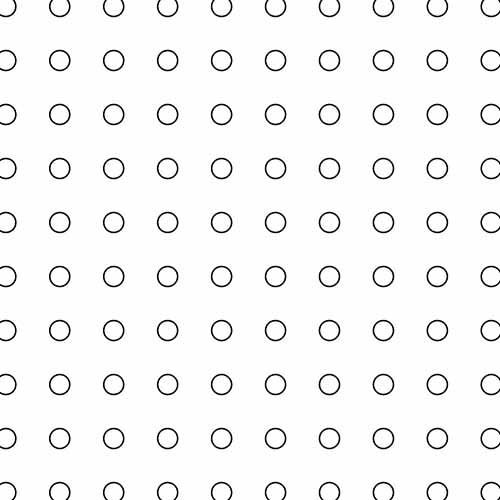

RST114

0.14" x 0.378"
Open Area: 11.0%
Hole Diameter: 0.140
Centers: 0.378
RST114
DWG
DXF
PDF

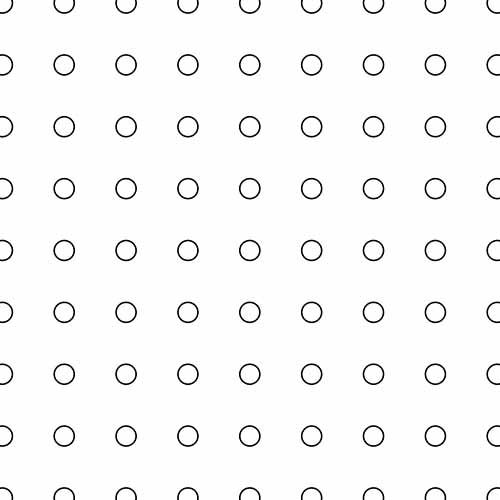

RST113

0.14" x 0.433"
Open Area: 8.0%
Hole Diameter: 0.140
Centers: 0.433
RST113
DWG
DXF
PDF

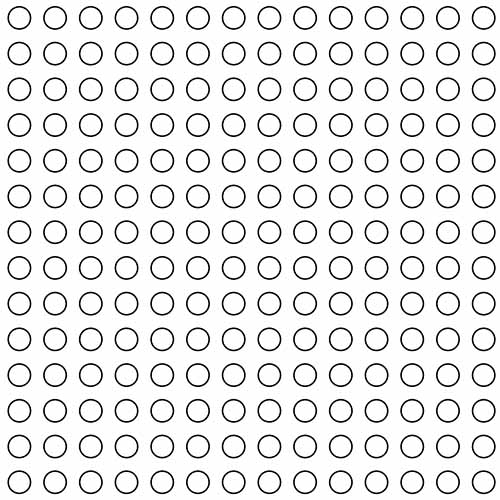

RST020

0.156" x 0.25"
Open Area: 31.0%
Hole Diameter: 0.156
Centers: 0.250
RST020
DWG
DXF
PDF

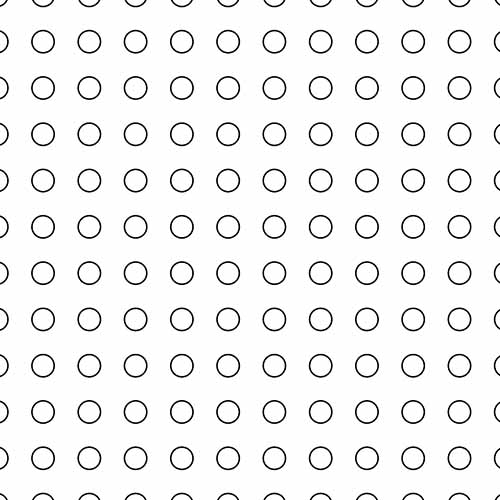

RST119

0.156" x 0.324"
Open Area: 18.0%
Hole Diameter: 0.156
Centers: 0.324
RST119
DWG
DXF
PDF

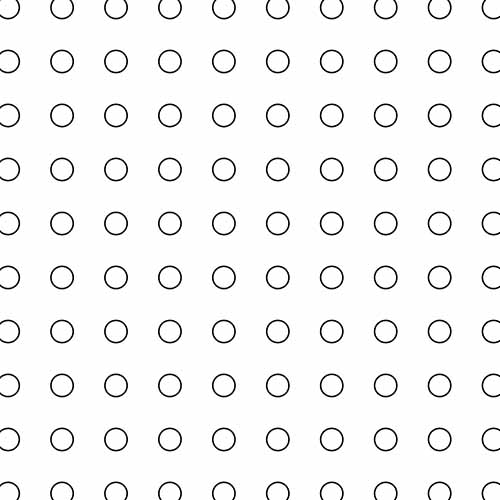

RST118

0.156" x 0.378"
Open Area: 13.0%
Hole Diameter: 0.156
Centers: 0.378
RST118
DWG
DXF
PDF

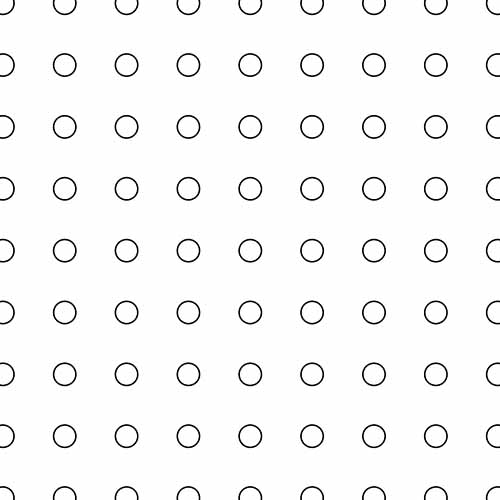

RST117

0.156" x 0.433"
Open Area: 10.0%
Hole Diameter: 0.156
Centers: 0.433
RST117
DWG
DXF
PDF

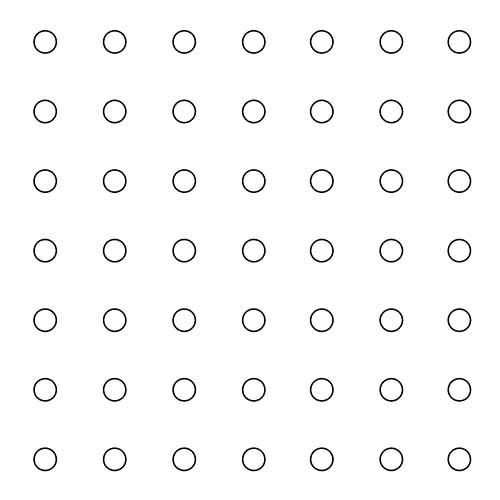

RST144

0.156" x 0.487"
Open Area: 8.0%
Hole Diameter: 0.156
Centers: 0.487
RST144
DWG
DXF
PDF

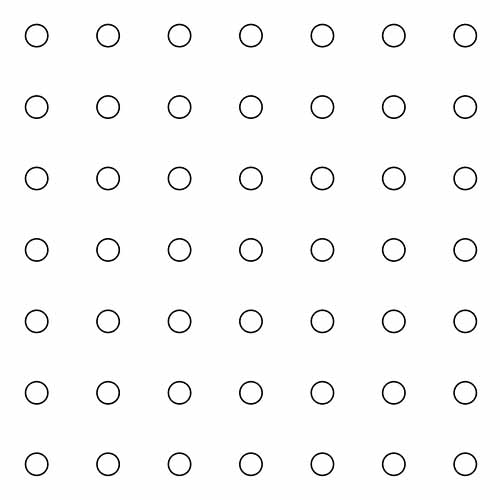

RST019

0.156" x 0.5"
Open Area: 8.0%
Hole Diameter: 0.156
Centers: 0.500
RST019
DWG
DXF
PDF

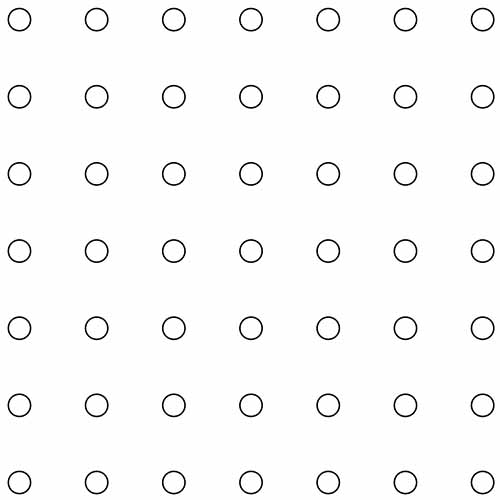

RST116

0.156" x 0.54"
Open Area: 7.0%
Hole Diameter: 0.156
Centers: 0.540
RST116
DWG
DXF
PDF

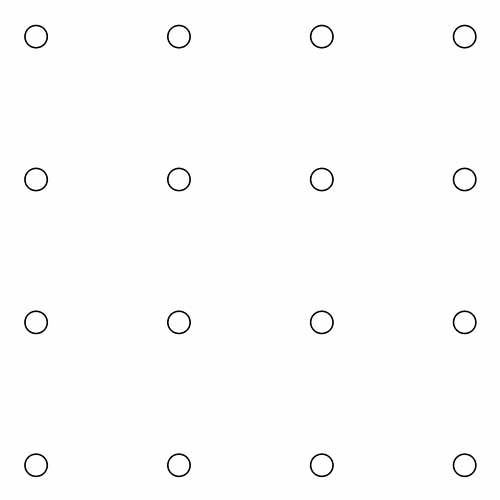

RST018

0.156" x 1"
Open Area: 2.0%
Hole Diameter: 0.156
Centers: 1.000
RST018
DWG
DXF
PDF

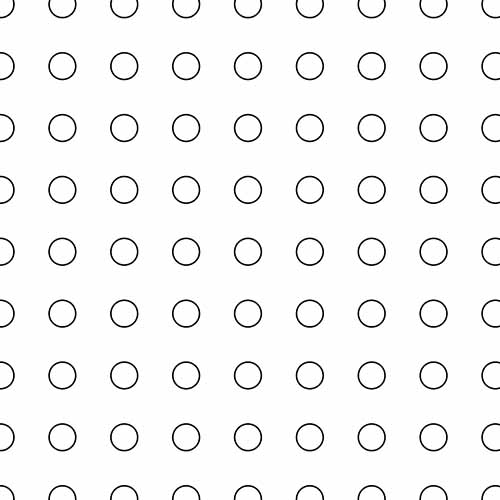

RST121

0.187" x 0.433"
Open Area: 15.0%
Hole Diameter: 0.187
Centers: 0.433
RST121
DWG
DXF
PDF

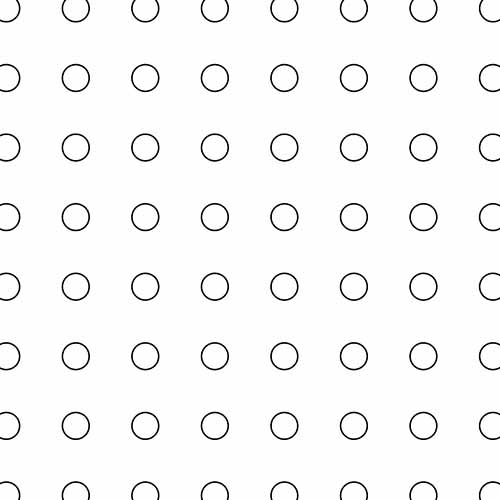

RST120

0.187" x 0.487"
Open Area: 12.0%
Hole Diameter: 0.187
Centers: 0.487
RST120
DWG
DXF
PDF

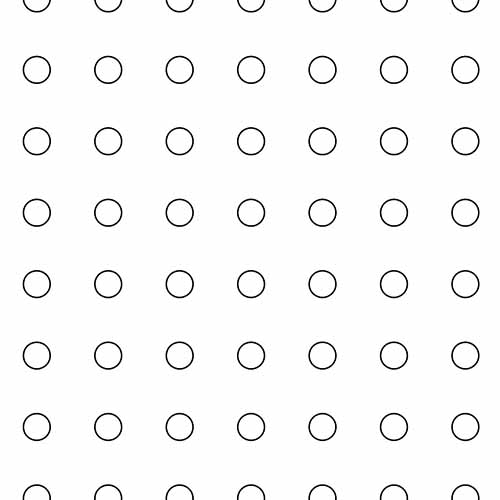

RST011

0.187" x 0.5"
Open Area: 11.0%
Hole Diameter: 0.187
Centers: 0.500
RST011
DWG
DXF
PDF

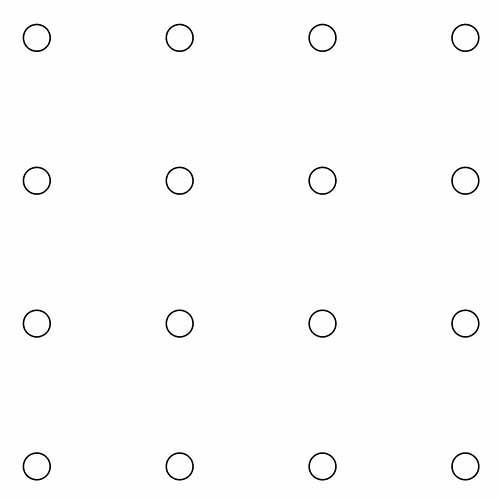

RST010

0.187" x 1"
Open Area: 3.0%
Hole Diameter: 0.187
Centers: 1.000
RST010
DWG
DXF
PDF

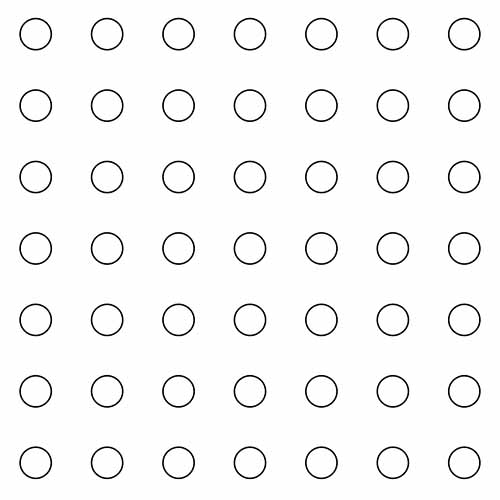

RST005

0.218" x 0.5"
Open Area: 15.0%
Hole Diameter: 0.218
Centers: 0.500
RST005
DWG
DXF
PDF

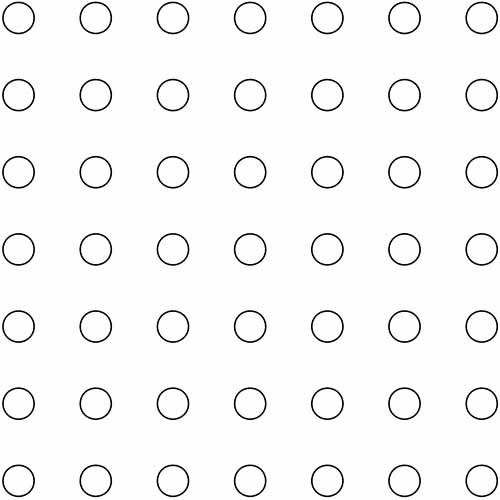

RST122

0.218" x 0.54"
Open Area: 13.0%
Hole Diameter: 0.218
Centers: 0.540
RST122
DWG
DXF
PDF

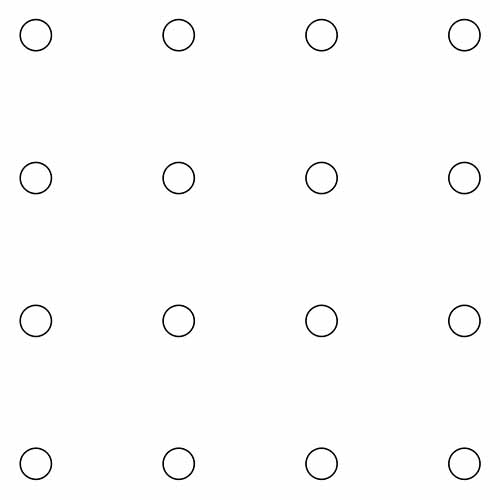

RST004

0.218" x 1"
Open Area: 4.0%
Hole Diameter: 0.218
Centers: 1.000
RST004
DWG
DXF
PDF

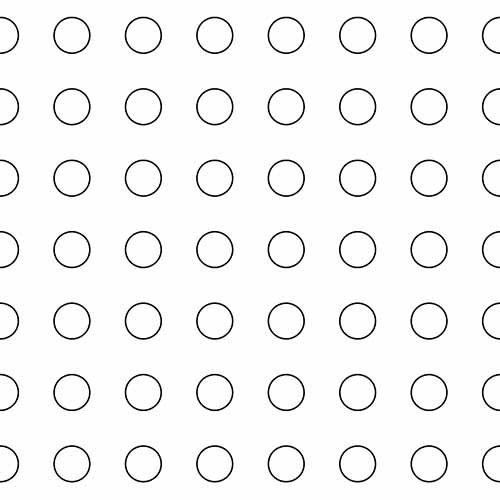

RST007

0.25" x 0.5"
Open Area: 20.0%
Hole Diameter: 0.250
Centers: 0.500
RST007
DWG
DXF
PDF

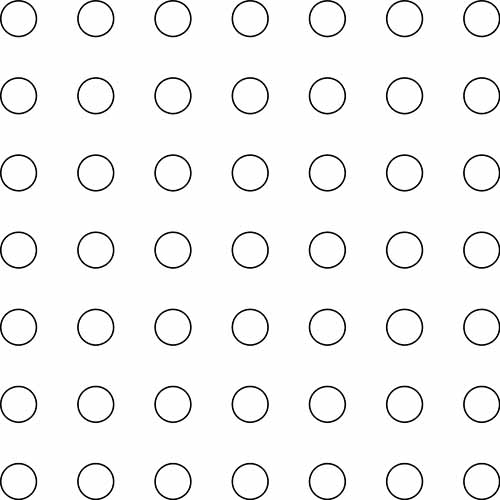

RST125

0.25" x 0.54"
Open Area: 17.0%
Hole Diameter: 0.250
Centers: 0.540
RST125
DWG
DXF
PDF

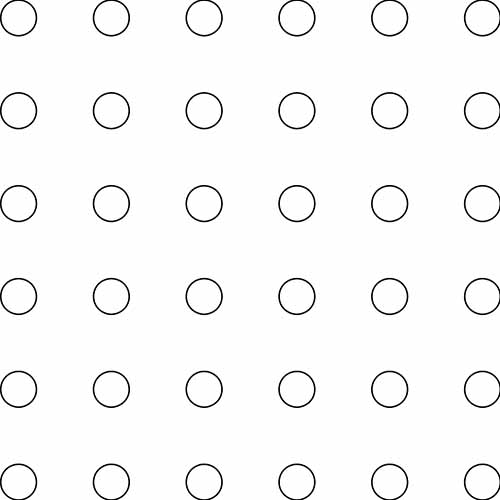

RST124

0.25" x 0.65"
Open Area: 12.0%
Hole Diameter: 0.250
Centers: 0.650
RST124
DWG
DXF
PDF

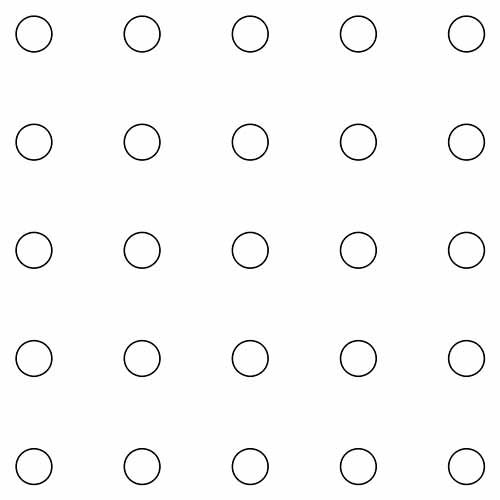

RST147

0.25" x 0.757"
Open Area: 9.0%
Hole Diameter: 0.250
Centers: 0.757
RST147
DWG
DXF
PDF

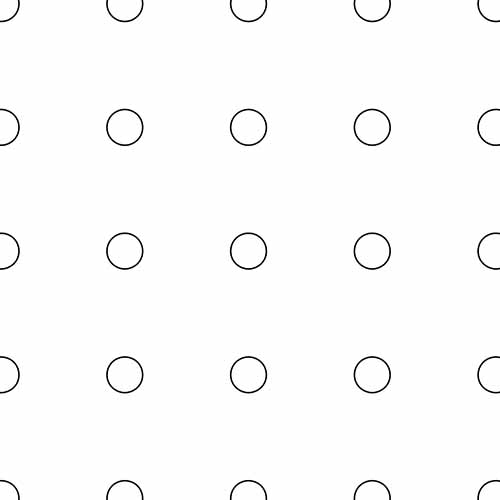

RST123

0.25" x 0.866"
Open Area: 7.0%
Hole Diameter: 0.250
Centers: 0.866
RST123
DWG
DXF
PDF

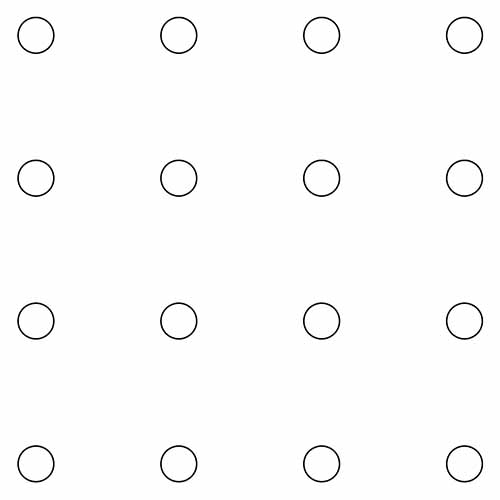

RST006

0.25" x 1"
Open Area: 5.0%
Hole Diameter: 0.250
Centers: 1.000
RST006
DWG
DXF
PDF

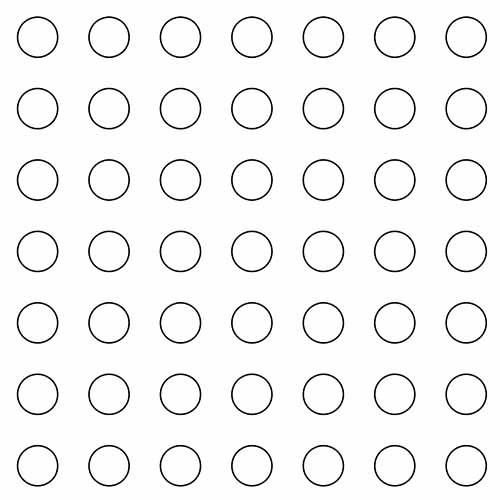

RST009

0.281" x 0.5"
Open Area: 25.0%
Hole Diameter: 0.281
Centers: 0.500
RST009
DWG
DXF
PDF

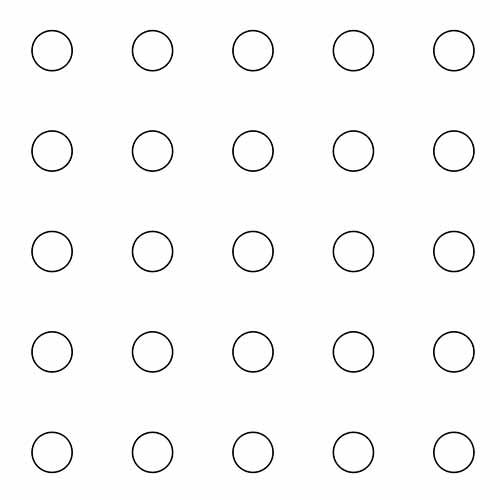

RST148

0.281" x 0.703"
Open Area: 13.0%
Hole Diameter: 0.281
Centers: 0.703
RST148
DWG
DXF
PDF

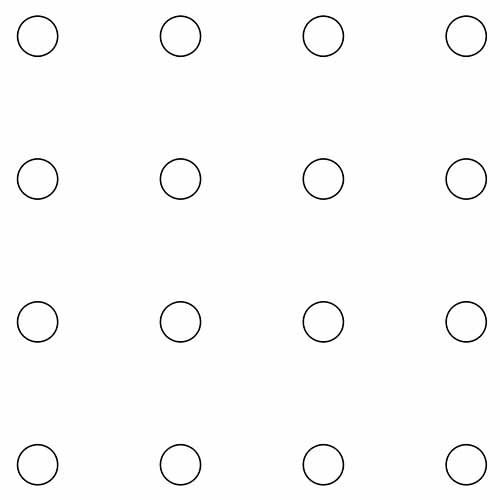

RST008

0.281" x 1"
Open Area: 6.0%
Hole Diameter: 0.281
Centers: 1.000
RST008
DWG
DXF
PDF

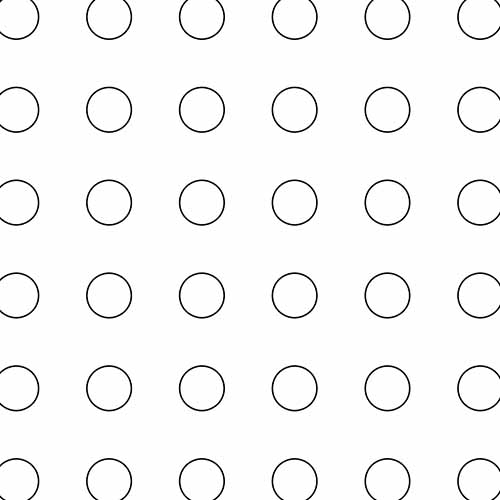

RST126

0.312" x 0.65"
Open Area: 18.0%
Hole Diameter: 0.312
Centers: 0.650
RST126
DWG
DXF
PDF

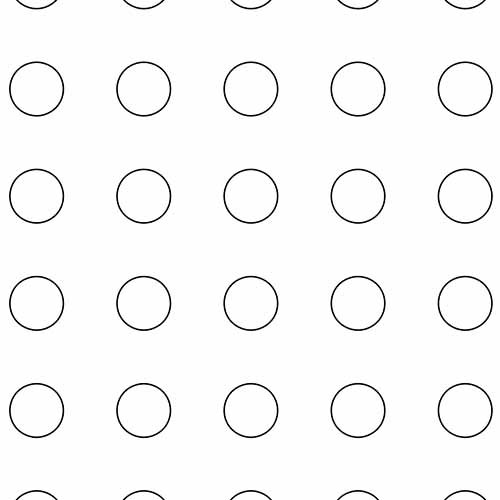

RST022

0.312" x 0.75"
Open Area: 20.0%
Hole Diameter: 0.312
Centers: 0.750
RST022
DWG
DXF
PDF

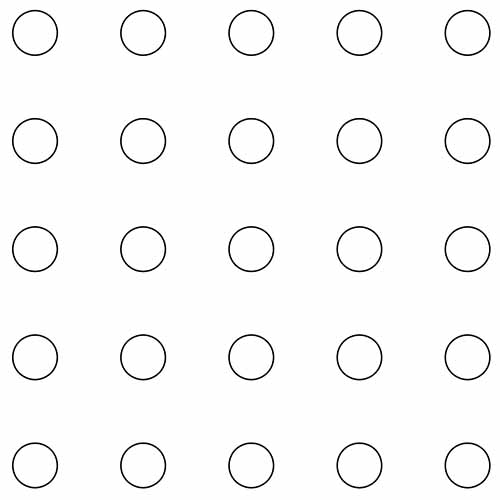

RST153

0.312" x 0.757"
Open Area: 13.0%
Hole Diameter: 0.312
Centers: 0.757
RST153
DWG
DXF
PDF

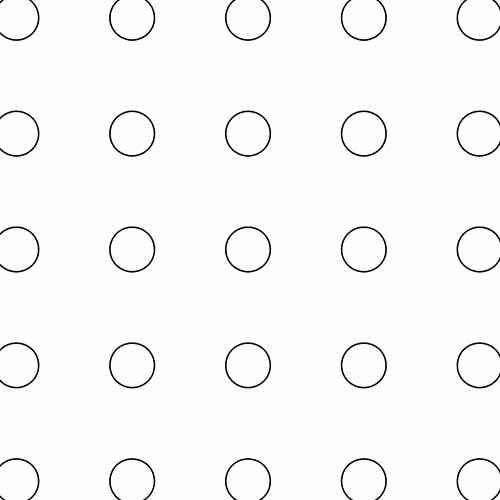

RST149

0.312" x 0.811"
Open Area: 12.0%
Hole Diameter: 0.312
Centers: 0.811
RST149
DWG
DXF
PDF

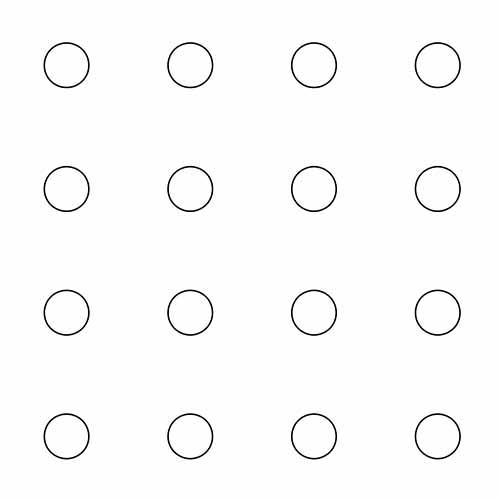

RST152

0.312" x 0.866"
Open Area: 10.0%
Hole Diameter: 0.312
Centers: 0.866
RST152
DWG
DXF
PDF

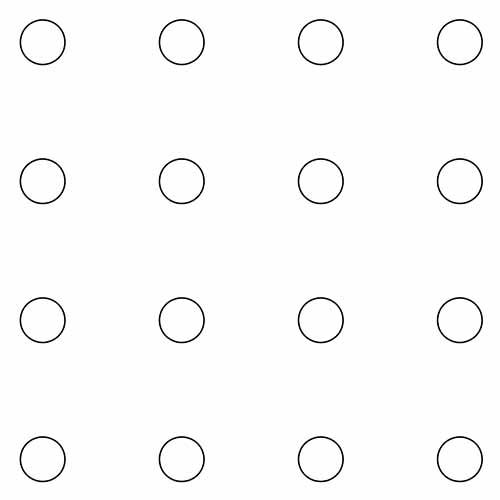

RST151

0.312" x 0.973"
Open Area: 8.0%
Hole Diameter: 0.312
Centers: 0.973
RST151
DWG
DXF
PDF

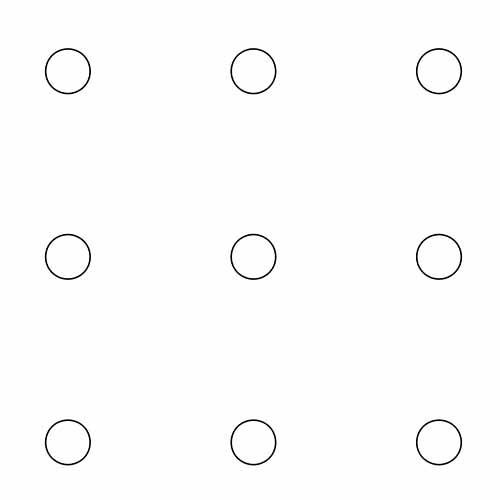

RST150

0.312" x 1.299"
Open Area: 4.0%
Hole Diameter: 0.312
Centers: 1.299
RST150
DWG
DXF
PDF

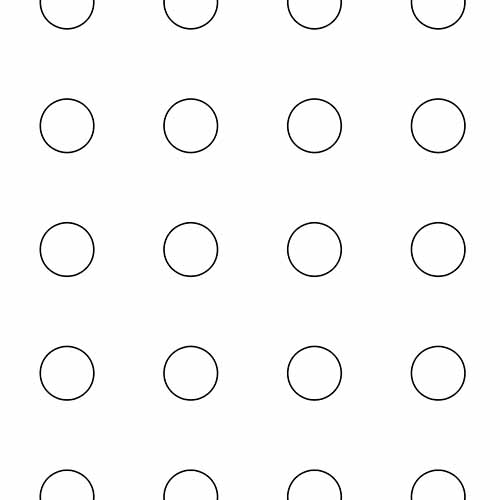

RST154

0.375" x 0.866"
Open Area: 15.0%
Hole Diameter: 0.375
Centers: 0.866
RST154
DWG
DXF
PDF

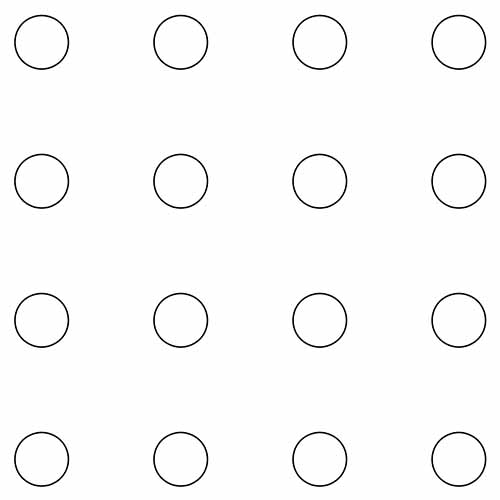

RST155

0.375" x 0.973"
Open Area: 12.0%
Hole Diameter: 0.375
Centers: 0.973
RST155
DWG
DXF
PDF

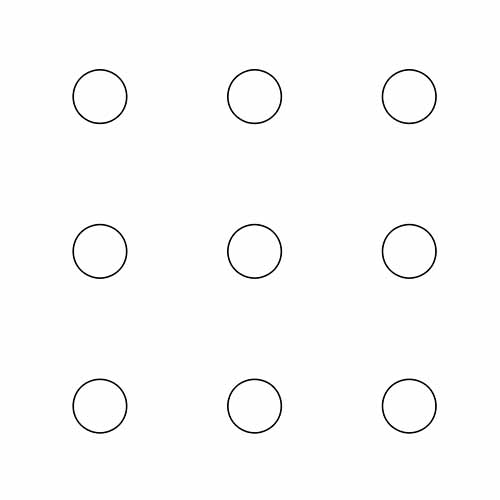

RST156

0.375" x 1.083"
Open Area: 9.0%
Hole Diameter: 0.375
Centers: 1.083
RST156
DWG
DXF
PDF

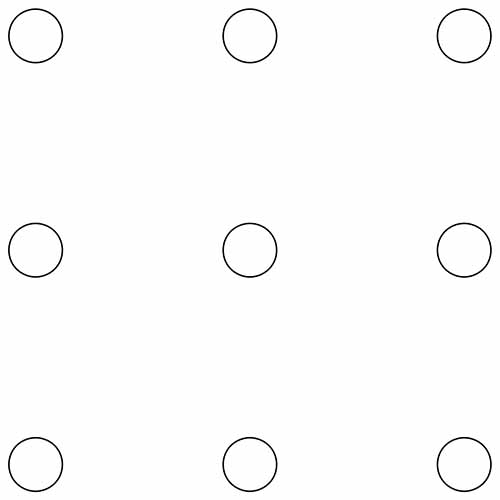

RST021

0.375" x 1.5"
Open Area: 5.0%
Hole Diameter: 0.375
Centers: 1.500
RST021
DWG
DXF
PDF

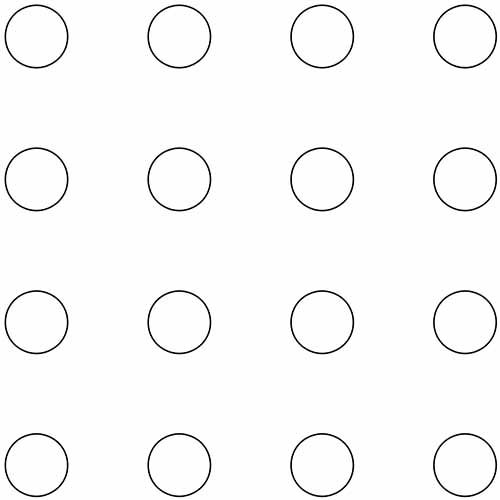

RST024

0.437" x 1"
Open Area: 15.0%
Hole Diameter: 0.437
Centers: 1.000
RST024
DWG
DXF
PDF

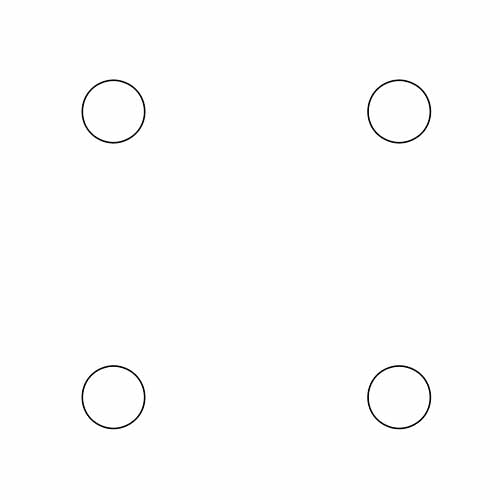

RST023

0.437" x 2"
Open Area: 4.0%
Hole Diameter: 0.437
Centers: 2.000
RST023
DWG
DXF
PDF

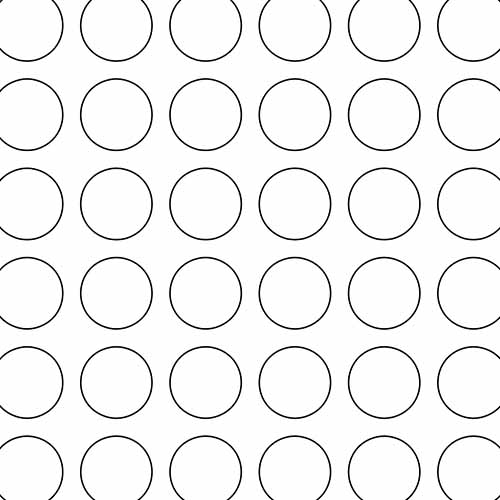

RST026

0.5" x 0.625"
Open Area: 50.0%
Hole Diameter: 0.500
Centers: 0.625
RST026
DWG
DXF
PDF

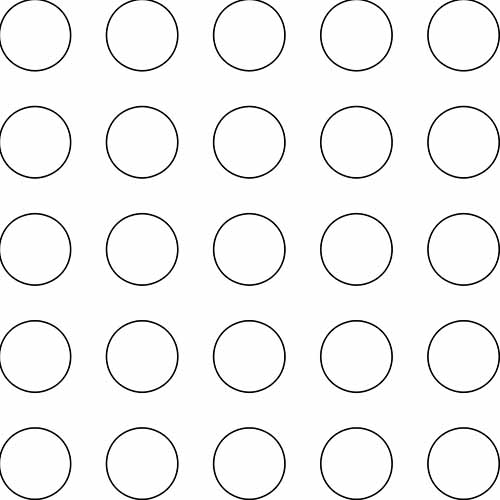

RST015

0.5" x 0.75"
Open Area: 35.0%
Hole Diameter: 0.500
Centers: 0.750
RST015
DWG
DXF
PDF

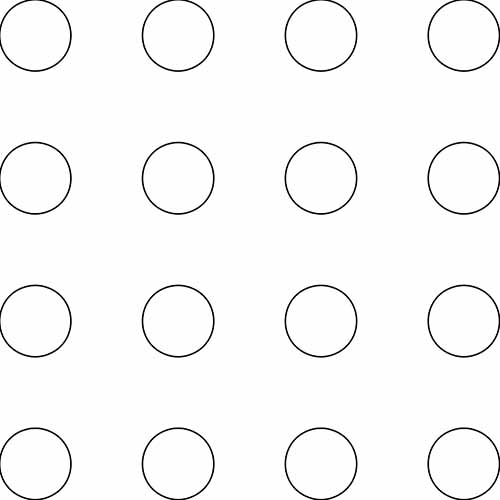

RST014

0.5" x 1"
Open Area: 20.0%
Hole Diameter: 0.500
Centers: 1.000
RST014
DWG
DXF
PDF

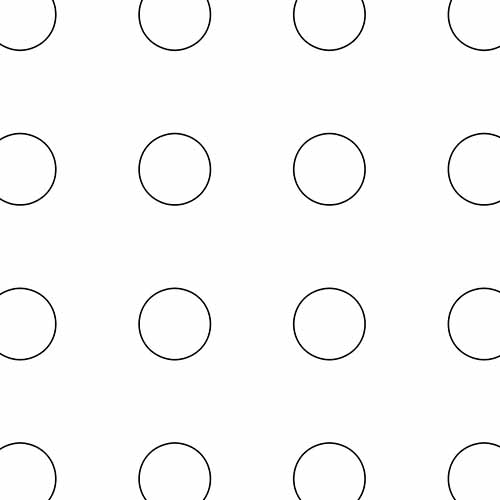

RST158

0.5" x 1.083"
Open Area: 17.0%
Hole Diameter: 0.500
Centers: 1.083
RST158
DWG
DXF
PDF

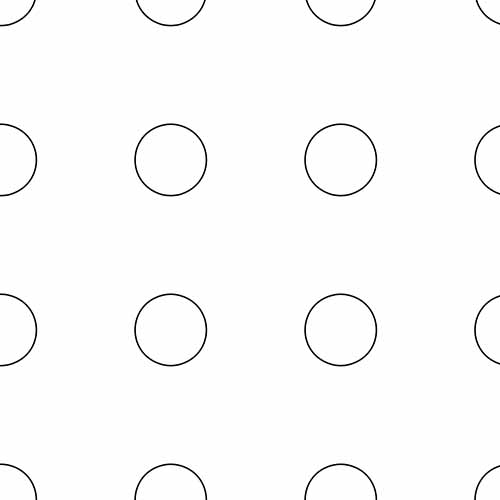

RST127

0.5" x 1.19"
Open Area: 14.0%
Hole Diameter: 0.500
Centers: 1.190
RST127
DWG
DXF
PDF

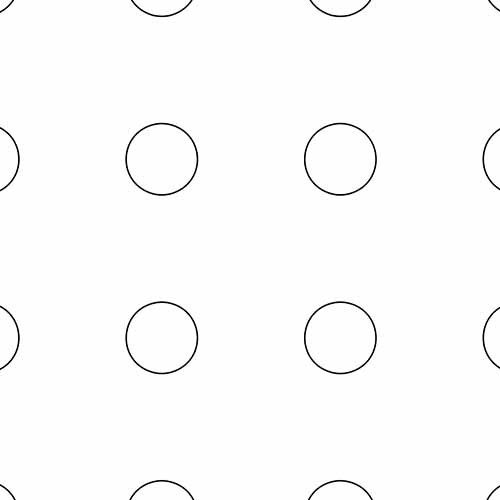

RST025

0.5" x 1.25"
Open Area: 13.0%
Hole Diameter: 0.500
Centers: 1.250
RST025
DWG
DXF
PDF

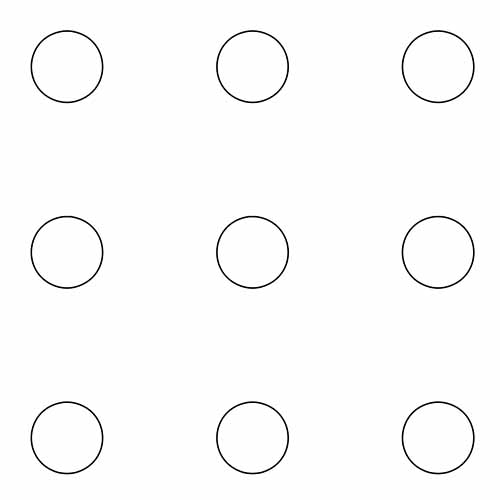

RST157

0.5" x 1.299"
Open Area: 12.0%
Hole Diameter: 0.500
Centers: 1.299
RST157
DWG
DXF
PDF

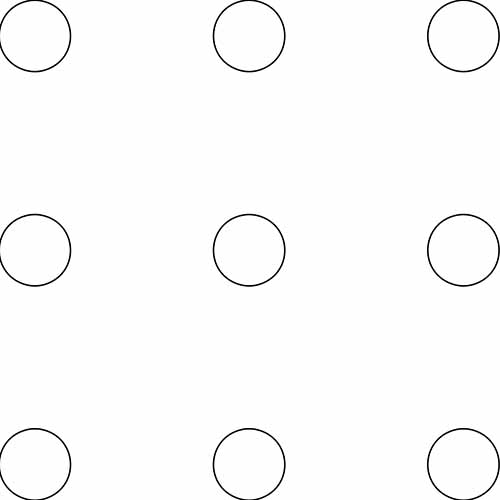

RST013

0.5" x 1.5"
Open Area: 9.0%
Hole Diameter: 0.500
Centers: 1.500
RST013
DWG
DXF
PDF

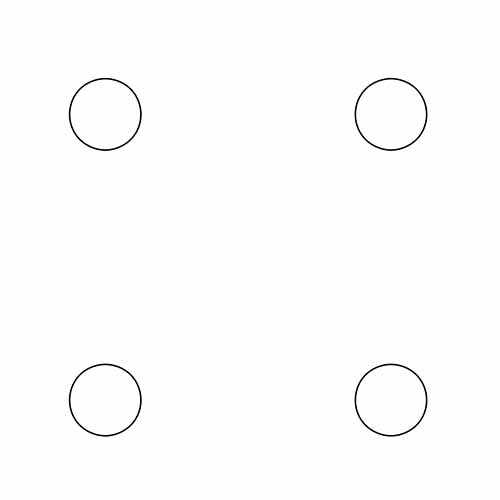

RST012

0.5" x 2"
Open Area: 5.0%
Hole Diameter: 0.500
Centers: 2.000
RST012
DWG
DXF
PDF

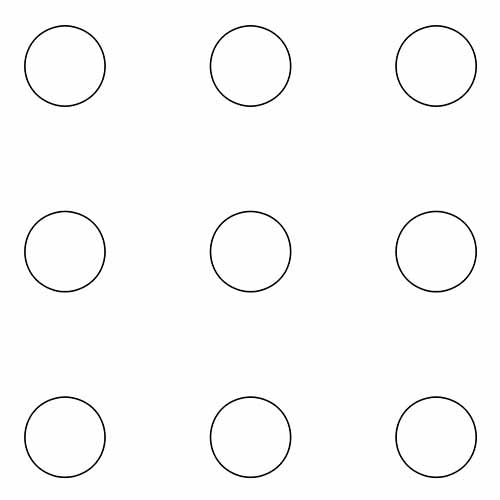

RST159

0.562" x 1.299"
Open Area: 15.0%
Hole Diameter: 0.562
Centers: 1.299
RST159
DWG
DXF
PDF

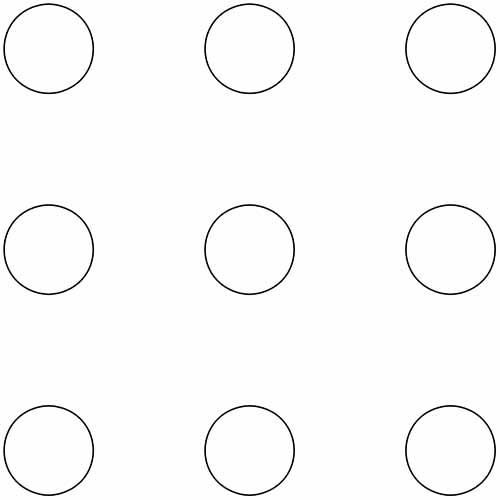

RST128

0.625" x 1.406"
Open Area: 16.0%
Hole Diameter: 0.625
Centers: 1.406
RST128
DWG
DXF
PDF

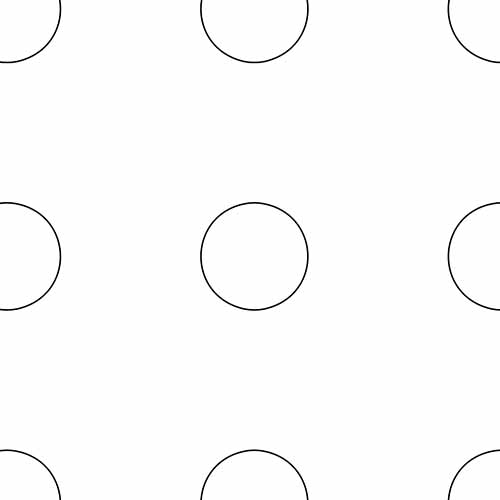

RST129

0.75" x 1.732"
Open Area: 15.0%
Hole Diameter: 0.750
Centers: 1.732
RST129
DWG
DXF
PDF

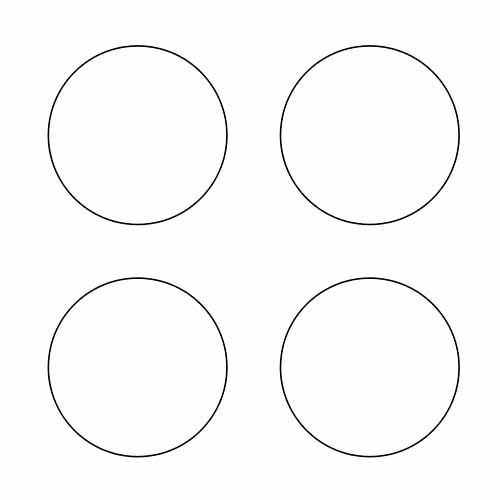

RST016

1.25" x 1.625"
Open Area: 47.0%
Hole Diameter: 1.250
Centers: 1.625
RST016
DWG
DXF
PDF

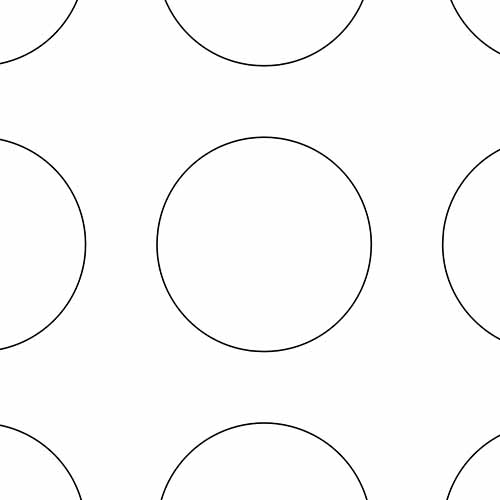

RST017

1.5" x 2"
Open Area: 44.0%
Hole Diameter: 1.500
Centers: 2.000
RST017
DWG
DXF
PDF

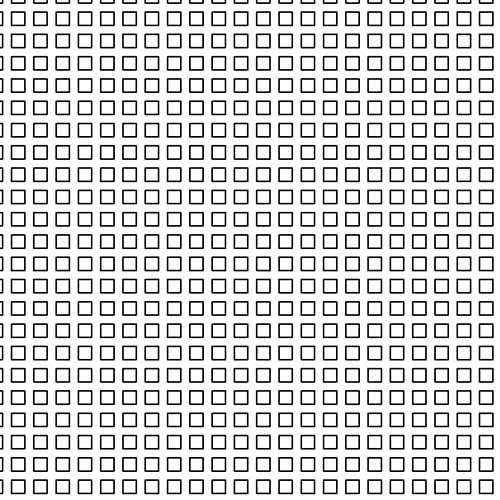

SQ203

0.093" x 0.156"
Open Area: 36.0%
Hole Diameter: 0.093
Centers: 0.156
DWG
DXF
PDF

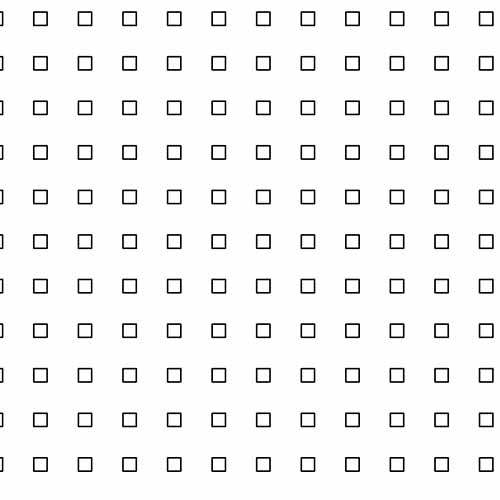

SQ202

0.093" x 0.312"
Open Area: 9.0%
Hole Diameter: 0.093
Centers: 0.312
DWG
DXF
PDF

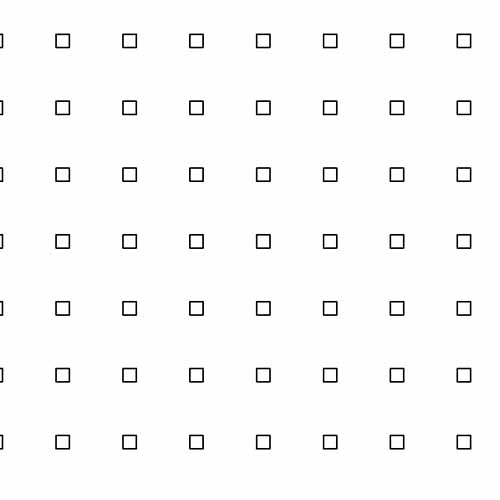

SQ201

0.093" x 0.468"
Open Area: 4.0%
Hole Diameter: 0.093
Centers: 0.468
SQ201
DWG
DXF
PDF

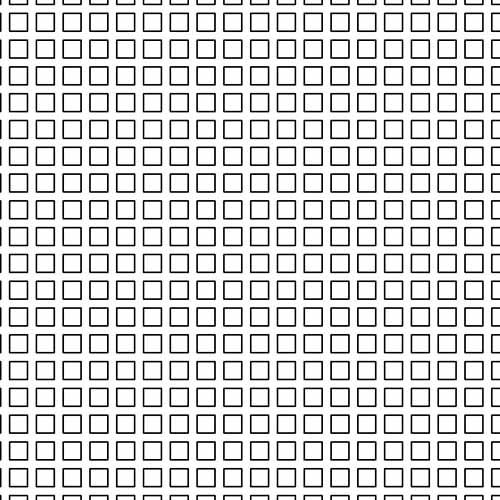

SQ222

0.125" x 0.187"
Open Area: 45.0%
Hole Diameter: 0.125
Centers: 0.187
SQ222
DWG
DXF
PDF

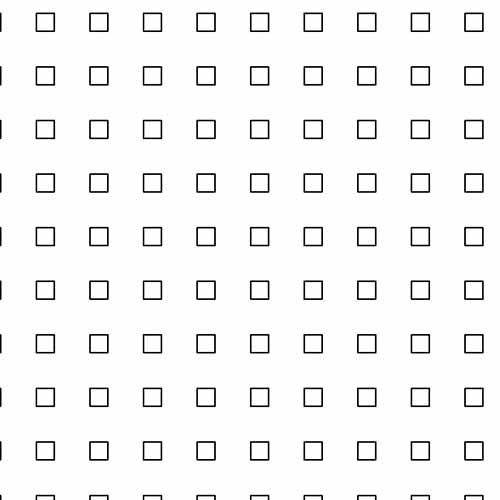

SQ221

0.125" x 0.375"
Open Area: 11.0%
Hole Diameter: 0.125
Centers: 0.375
SQ221
DWG
DXF
PDF

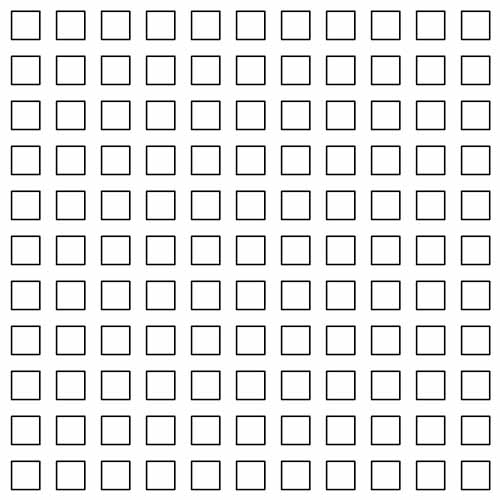

SQ218

0.197" x 0.315"
Open Area: 39.0%
Hole Diameter: 0.197
Centers: 0.315
SQ218
DWG
DXF
PDF

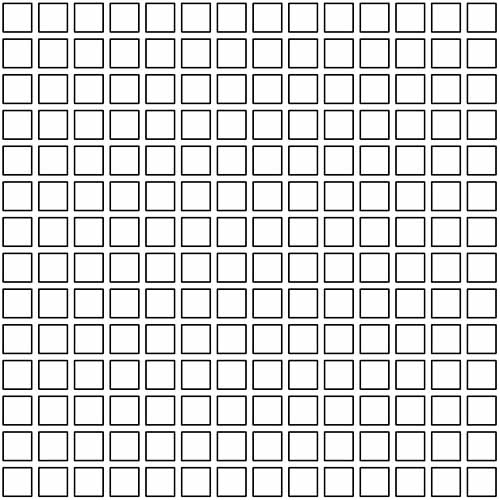

SQ002

0.2" x 0.25"
Open Area: 64.0%
Hole Diameter: 0.200
Centers: 0.250
DWG
DXF
PDF

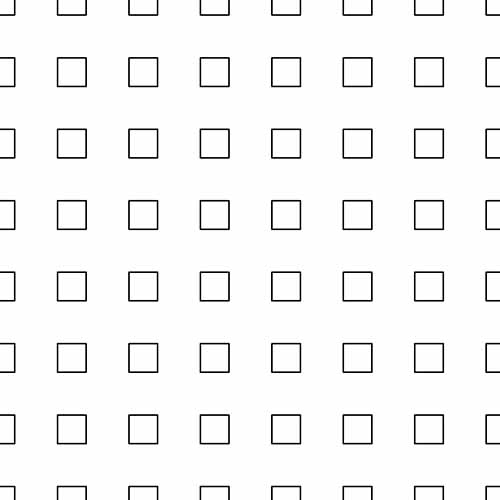

SQ001

0.2" x 0.5"
Open Area: 16.0%
Hole Diameter: 0.200
Centers: 0.500
SQ001
DWG
DXF
PDF

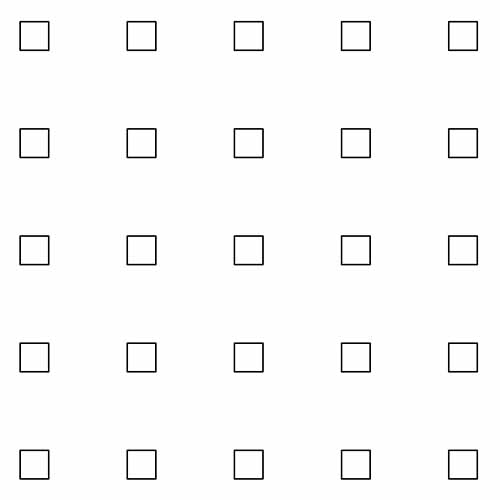

SQ204

0.2" x 0.75"
Open Area: 7.0%
Hole Diameter: 0.200
Centers: 0.750
SQ204
DWG
DXF
PDF

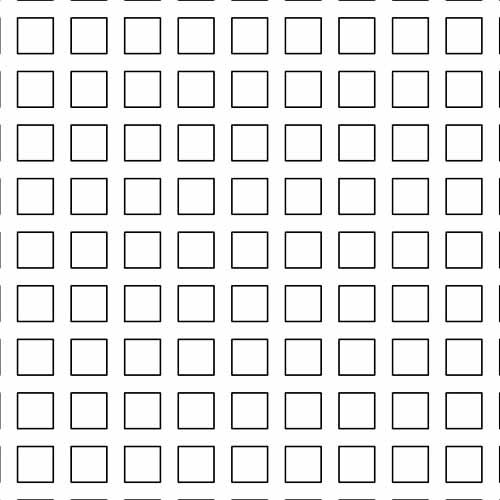

SQ005

0.25" x 0.375"
Open Area: 45.0%
Hole Diameter: 0.250
Centers: 0.375
SQ005
DWG
DXF
PDF

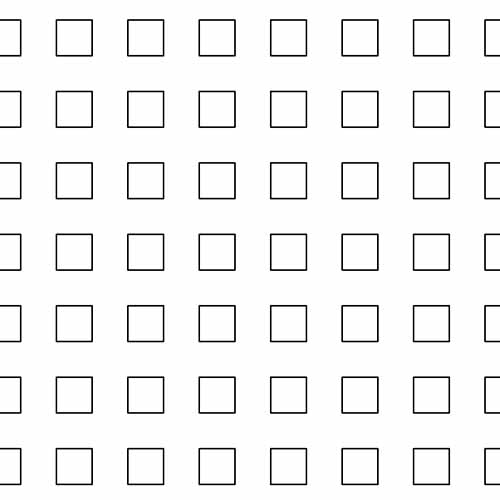

SQ208

0.25" x 0.5"
Open Area: 25.0%
Hole Diameter: 0.250
Centers: 0.500
SQ208
DWG
DXF
PDF

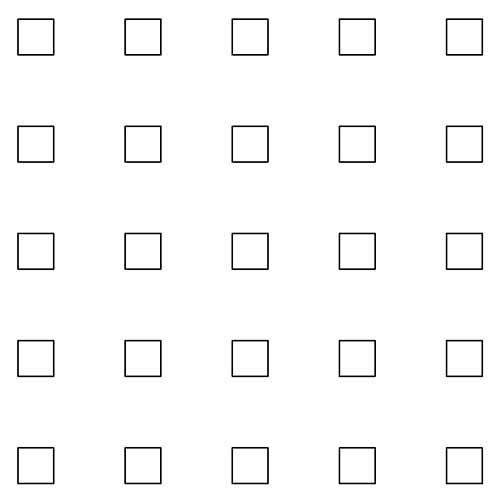

SQ003

0.25" x 0.75"
Open Area: 11.0%
Hole Diameter: 0.250
Centers: 0.750
SQ003
DWG
DXF
PDF

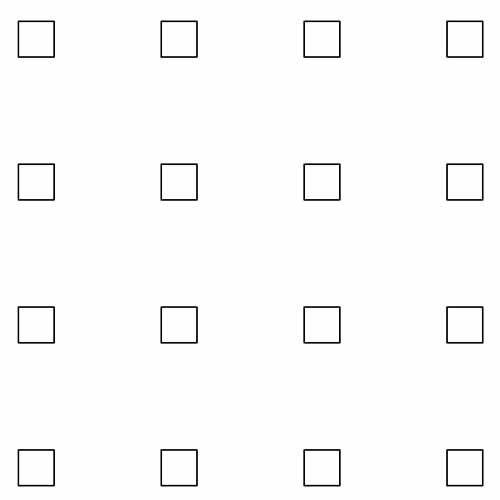

SQ207

0.25" x 1"
Open Area: 6.0%
Hole Diameter: 0.250
Centers: 1.000
SQ207
DWG
DXF
PDF

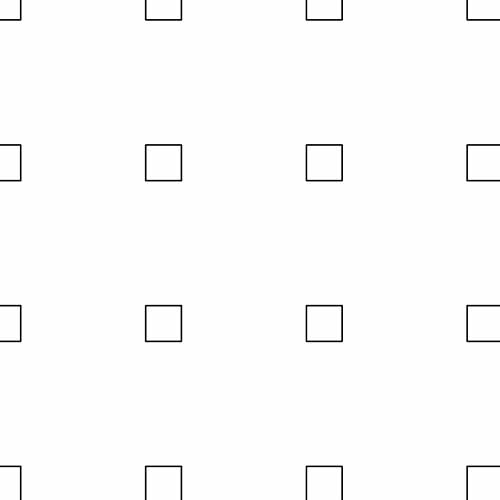

SQ205

0.25" x 1.125"
Open Area: 5.0%
Hole Diameter: 0.250
Centers: 1.125
SQ205
DWG
DXF
PDF

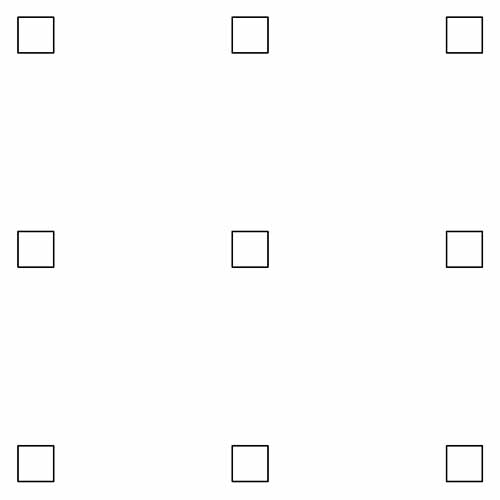

SQ206

0.25" x 1.5"
Open Area: 3.0%
Hole Diameter: 0.250
Centers: 1.500
SQ206
DWG
DXF
PDF

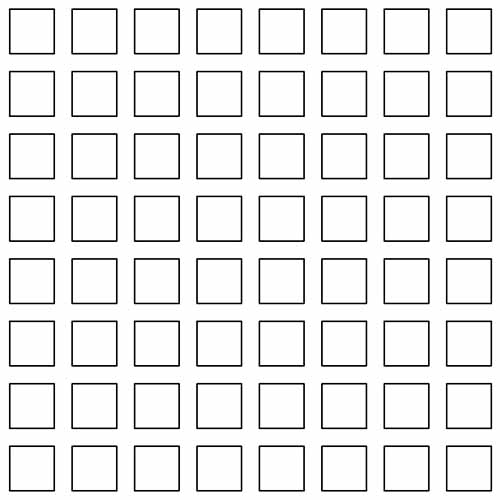

SQ008

0.312" x 0.437"
Open Area: 51.0%
Hole Diameter: 0.312
Centers: 0.437
SQ008
DWG
DXF
PDF

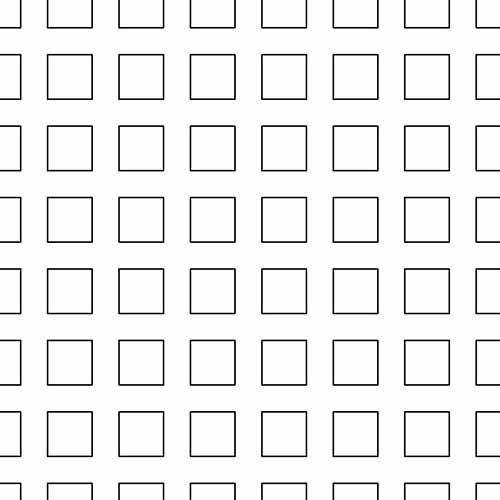

SQ212

0.312" x 0.5"
Open Area: 39.0%
Hole Diameter: 0.312
Centers: 0.500
SQ212
DWG
DXF
PDF

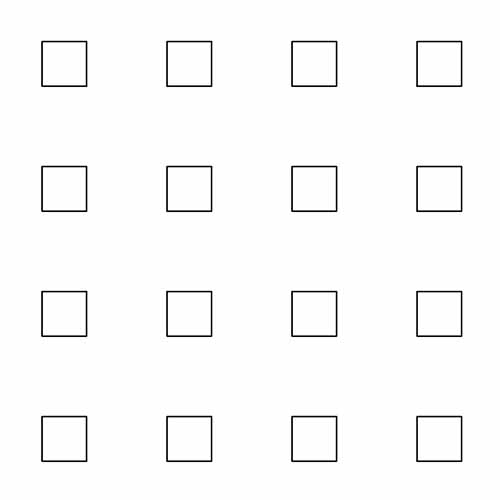

SQ007

0.312" x 0.875"
Open Area: 13.0%
Hole Diameter: 0.312
Centers: 0.875
SQ007
DWG
DXF
PDF

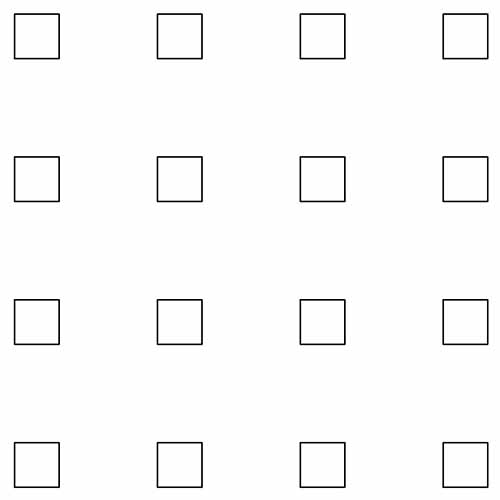

SQ211

0.312" x 1"
Open Area: 10.0%
Hole Diameter: 0.312
Centers: 1.000
SQ211
DWG
DXF
PDF

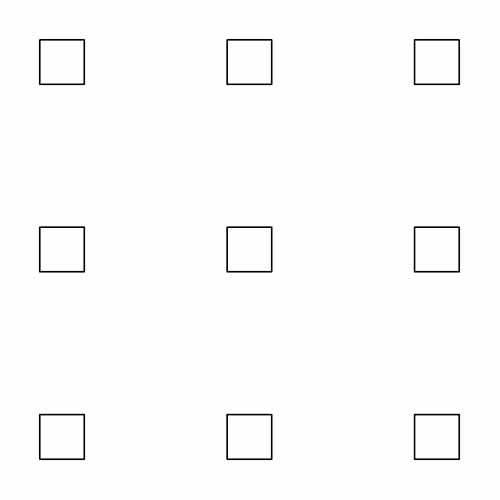

SQ209

0.312" x 1.312"
Open Area: 6.0%
Hole Diameter: 0.312
Centers: 1.312
SQ209
DWG
DXF
PDF

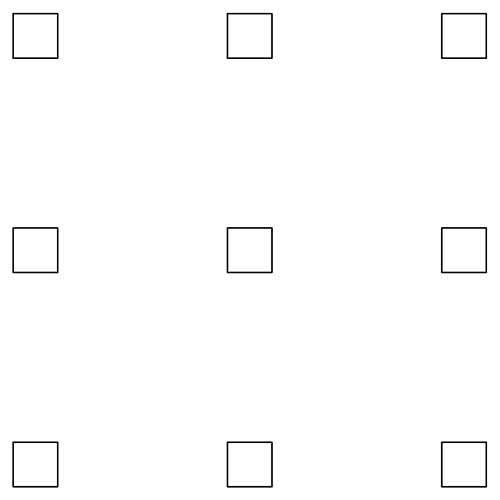

SQ210

0.312" x 1.5"
Open Area: 4.0%
Hole Diameter: 0.312
Centers: 1.500
SQ210
DWG
DXF
PDF

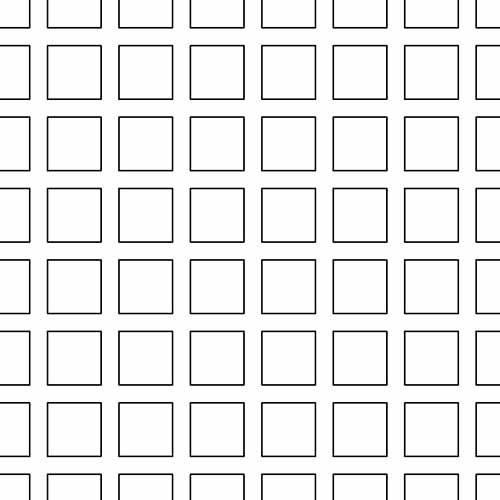

SQ010

0.375" x 0.5"
Open Area: 56.0%
Hole Diameter: 0.375
Centers: 0.500
SQ010
DWG
DXF
PDF

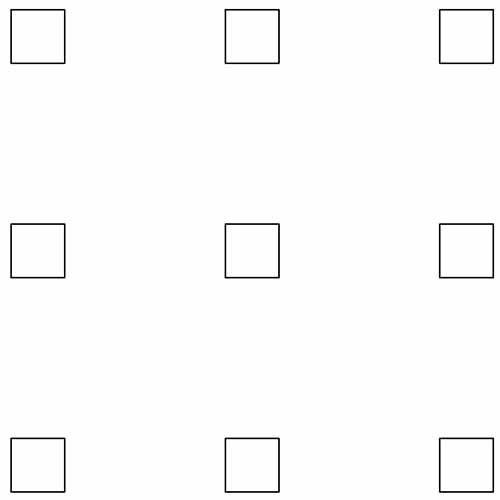

SQ213

0.375" x 1.5"
Open Area: 4.0%
Hole Diameter: 0.375
Centers: 1.500
SQ213
DWG
DXF
PDF

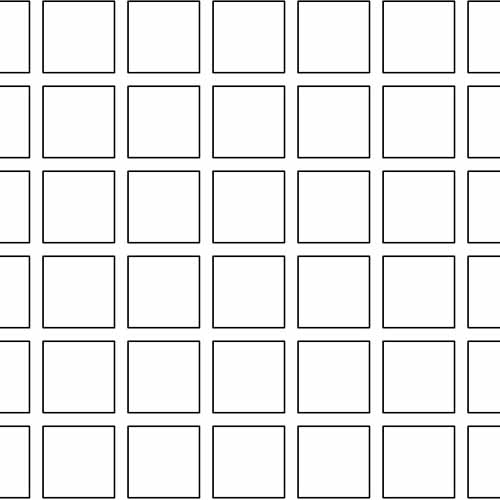

SQ219

0.5" x 0.595"
Open Area: 70.0%
Hole Diameter: 0.500
Centers: 0.595
SQ219
DWG
DXF
PDF

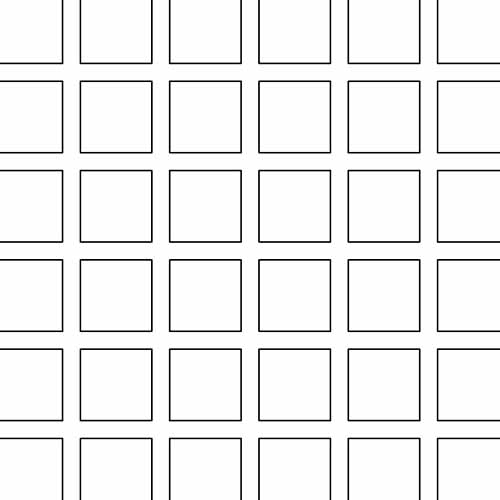

SQ016

0.5" x 0.625"
Open Area: 64.0%
Hole Diameter: 0.500
Centers: 0.625
SQ016
DWG
DXF
PDF

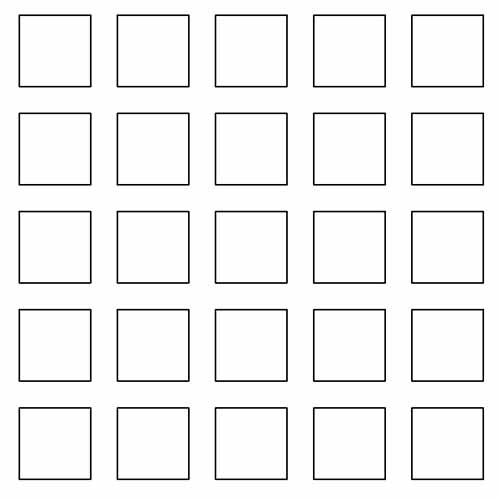

SQ015

0.5" x 0.687"
Open Area: 53.0%
Hole Diameter: 0.500
Centers: 0.687
SQ015
DWG
DXF
PDF

SQ014

0.5" x 0.75"
Open Area: 44.0%
Hole Diameter: 0.500
Centers: 0.750
SQ014
DWG
DXF
PDF

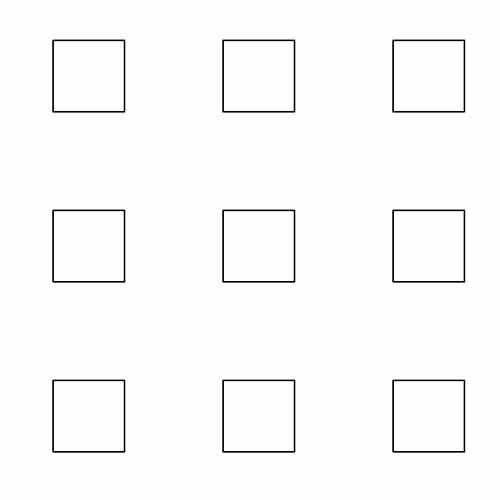

SQ220

0.5" x 1.19"
Open Area: 18.0%
Hole Diameter: 0.500
Centers: 1.190
SQ220
DWG
DXF
PDF

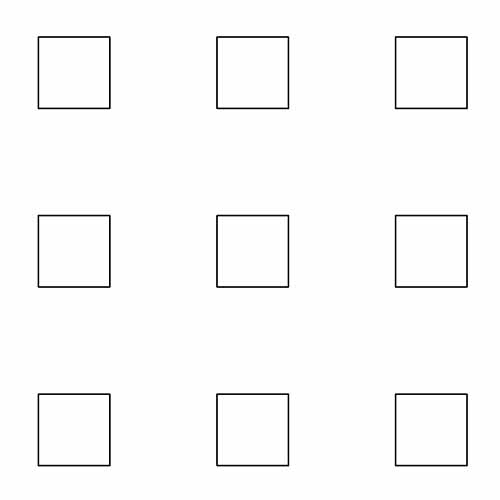

SQ013

0.5" x 1.25"
Open Area: 16.0%
Hole Diameter: 0.500
Centers: 1.250
SQ013
DWG
DXF
PDF

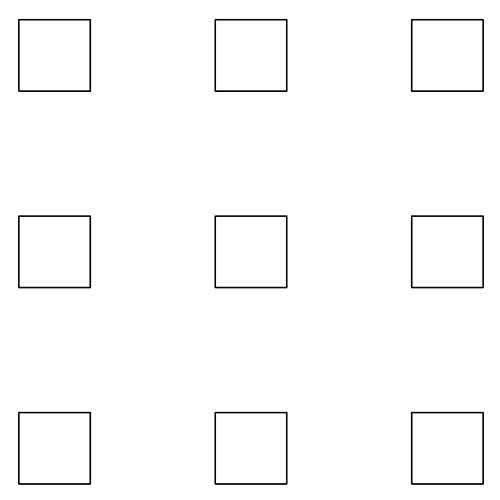

SQ012

0.5" x 1.375"
Open Area: 13.0%
Hole Diameter: 0.500
Centers: 1.375
SQ012
DWG
DXF
PDF

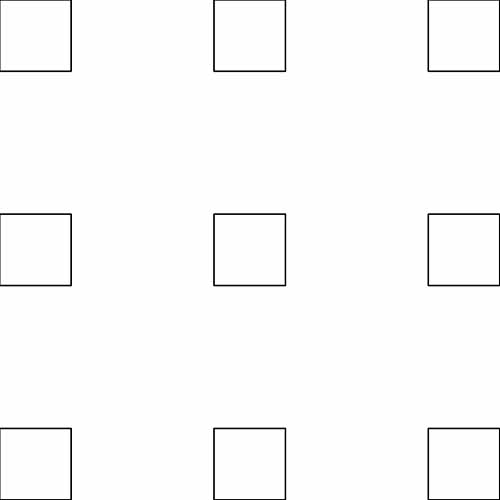

SQ011

0.5" x 1.5"
Open Area: 11.0%
Hole Diameter: 0.500
Centers: 1.500
SQ011
DWG
DXF
PDF

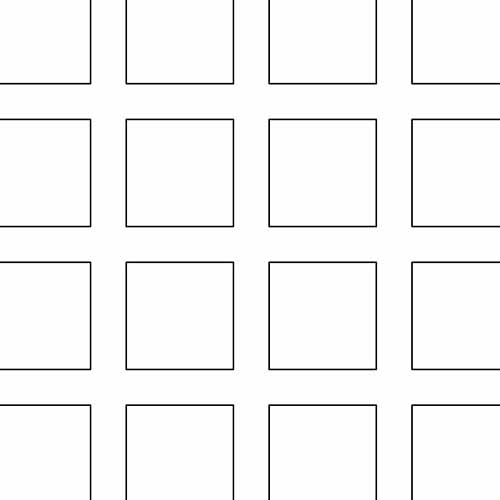

SQ018

0.75" x 1"
Open Area: 56.0%
Hole Diameter: 0.750
Centers: 1.000
SQ018
DWG
DXF
PDF

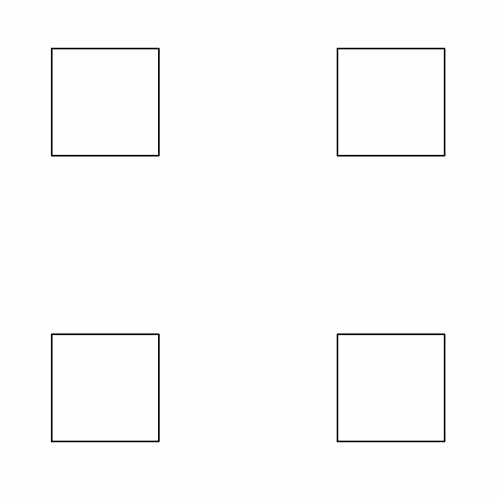

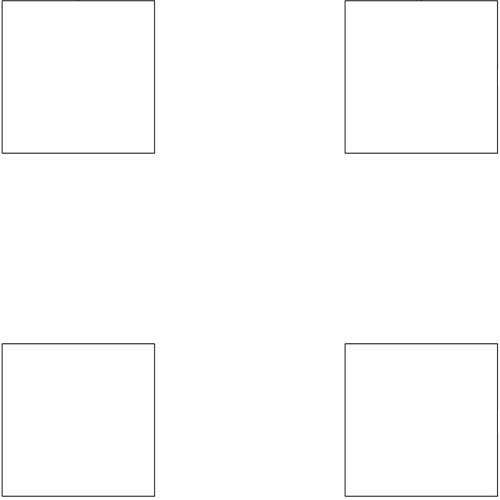

SQ017

0.75" x 2"
Open Area: 14.0%
Hole Diameter: 0.750
Centers: 2.000
SQ017
DWG
DXF
PDF

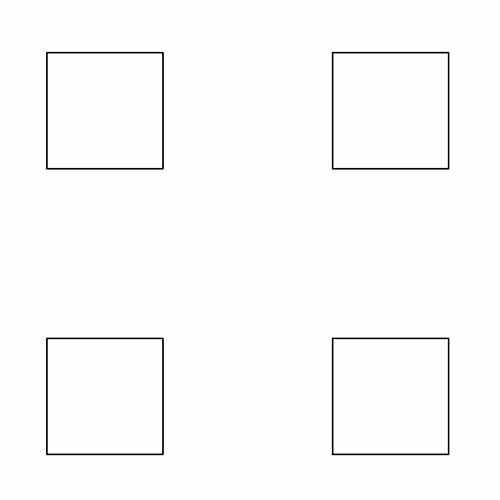

SQ214

0.812" x 2"
Open Area: 17.0%
Hole Diameter: 0.812
Centers: 2.000
SQ214
DWG
DXF
PDF

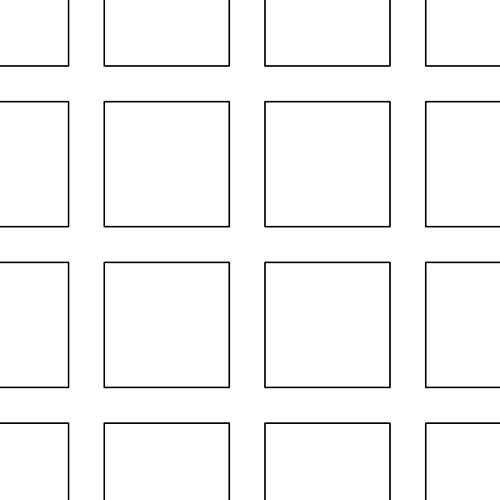

SQ020

0.875" x 1.125"
Open Area: 60.0%
Hole Diameter: 0.875
Centers: 1.125
SQ020
DWG
DXF
PDF

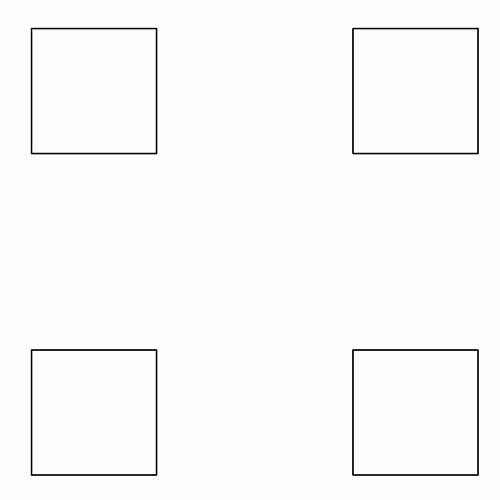

SQ019

0.875" x 2.25"
Open Area: 15.0%
Hole Diameter: 0.875
Centers: 2.250
SQ019
DWG
DXF
PDF

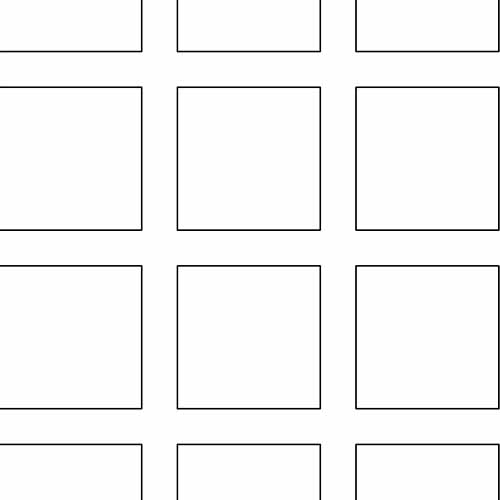

SQ022

1" x 1.25"
Open Area: 64.0%
Hole Diameter: 1.000
Centers: 1.250
SQ022
DWG
DXF
PDF

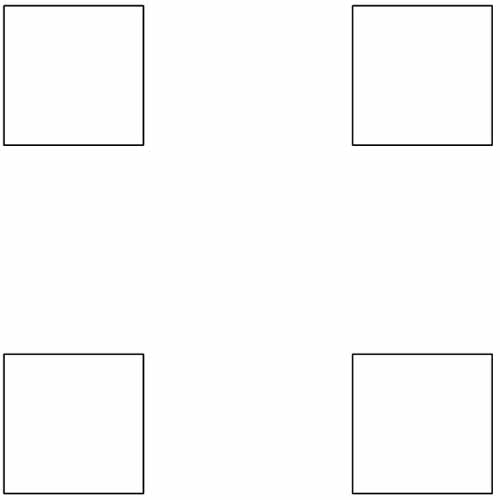

SQ021

1" x 2.5"
Open Area: 16.0%
Hole Diameter: 1.000
Centers: 2.500
SQ021
DWG
DXF
PDF

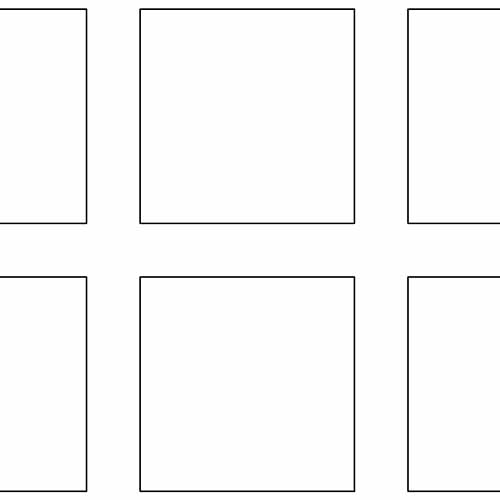

SQ216

1.5" x 1.875"
Open Area: 64.0%
Hole Diameter: 1.500
Centers: 1.875
SQ216
DWG
DXF
PDF

SQ217

2" x 4.5"
Open Area: 20.0%
Hole Diameter: 2.000
Centers: 4.500
SQ217
DWG
DXF
PDF

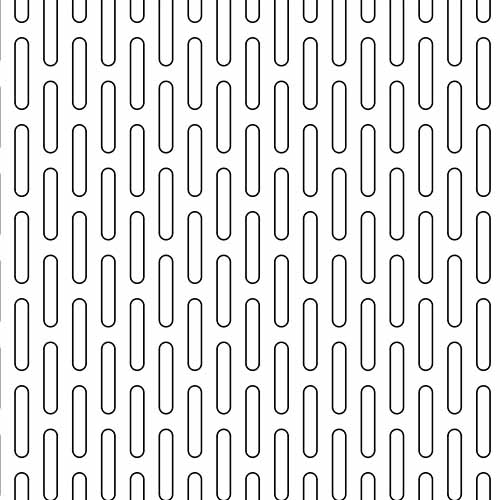

SL002

0.093 x 0.500 RD. END
Open Area: 35.0%
Hole Diameter: 0.093
Centers: 0.500
SL002
DWG
DXF
PDF

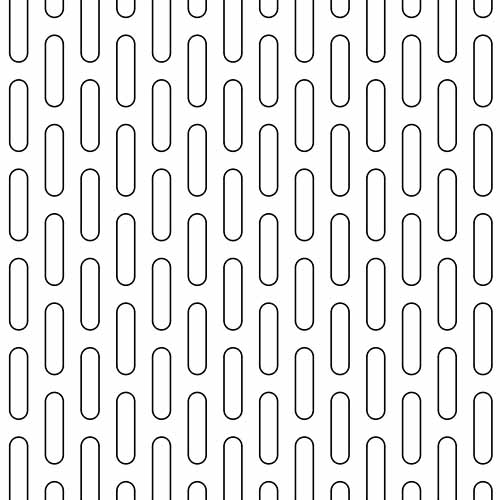

SL014

0.125 X 0.500 RD. END
Open Area: 39.0%
Hole Diameter: 0.125
Centers: 0.500
SL014
DWG
DXF
PDF

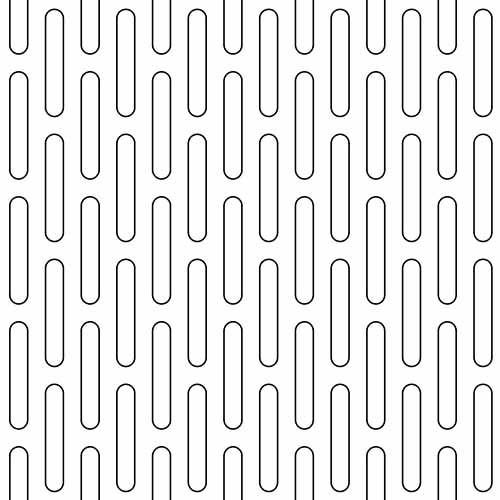

SL003

0.125 X 0.750 RD. END
Open Area: 38.0%
Hole Diameter: 0.125
Centers: 0.750
SL003
DWG
DXF
PDF

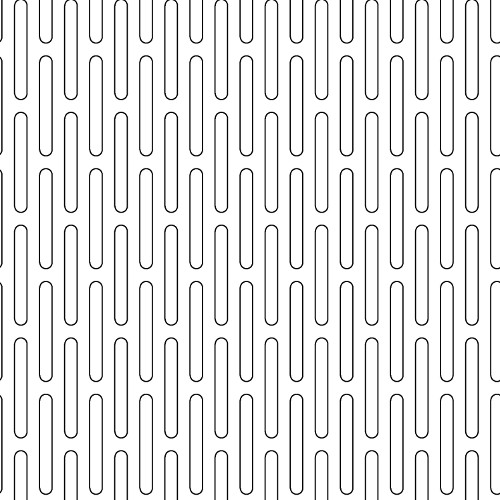

SL015

0.125 x 1.000 Slot Staggered
Open Area: 44.0%
Hole Diameter: 0.125
Centers: 1.000
DWG
DXF
PDF

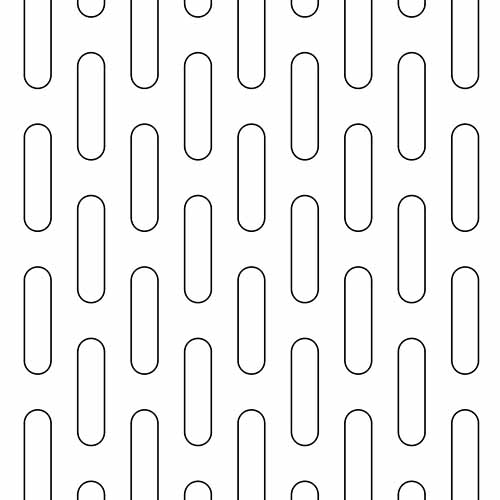

SL007

0.187 X 0.750 RD. END
Open Area: 35.0%
Hole Diameter: 0.187
Centers: 0.750
SL007
DWG
DXF
PDF

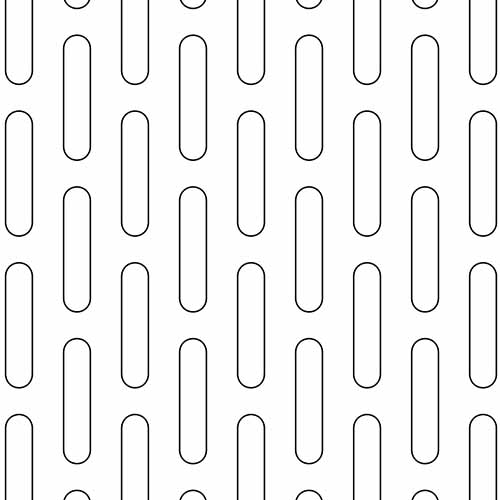

SL011

0.187 X 0.875 RD. END
Open Area: 40.0%
Hole Diameter: 0.187
Centers: 0.875
SL011
DWG
DXF
PDF

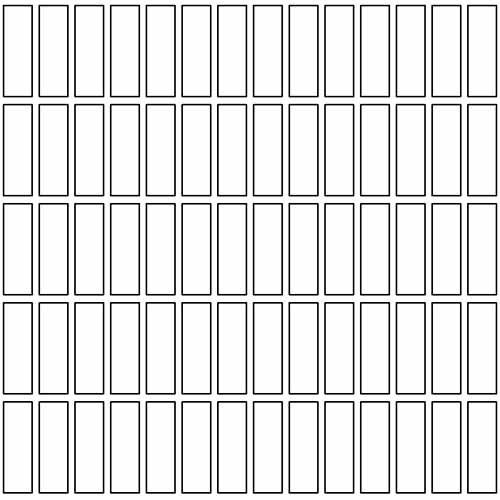

SL004

0.200 X 0.637 SQ. END
Open Area: 75.0%
Hole Diameter: 0.200
Centers: 0.637
SL004
DWG
DXF
PDF

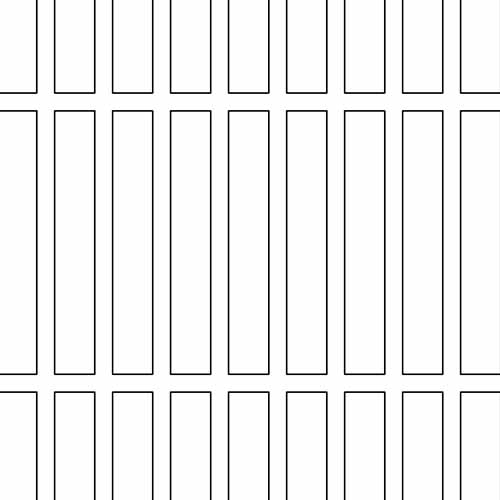

SL006

0.281 X 1.843 SQ. END
Open Area: 62.0%
Hole Diameter: 0.281
Centers: 1.843
SL006
DWG
DXF
PDF

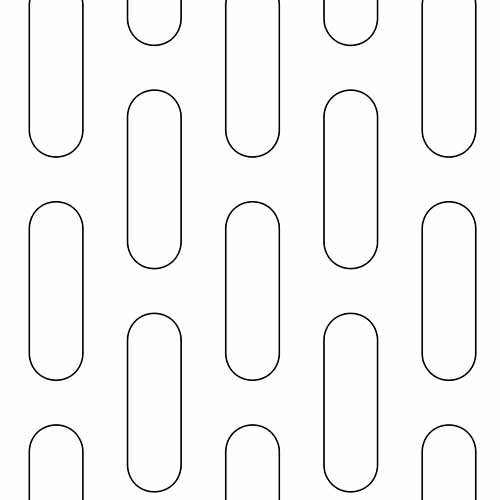

SL008

0.375 X 1.250 RD. END
Open Area: 41.0%
Hole Diameter: 0.375
Centers: 1.250
SL008
DWG
DXF
PDF

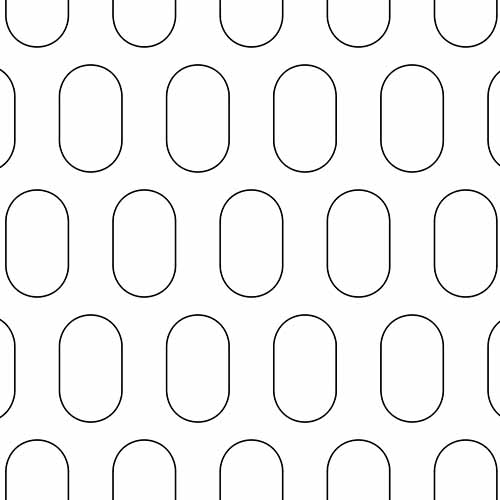

SL009

0.437 X 0.750 RD. END
Open Area: 40.0%
Hole Diameter: 0.437
Centers: 0.750
SL009
DWG
DXF
PDF

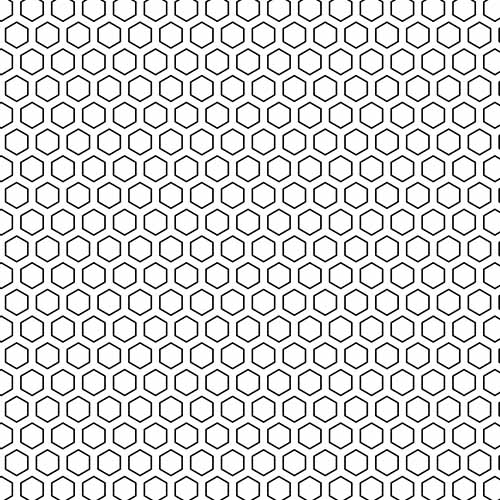

O021

.156" Hex X .216" CTRS.
Open Area: 52.0%
Hole Diameter: 0.156
Centers: 0.216
O021
DWG
DXF
PDF

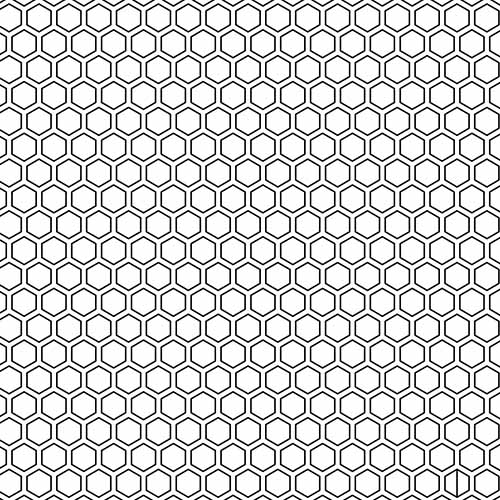

O024

.169" Hex x .209" CTRS
Open Area: 65.0%
Hole Diameter: 0.169
Centers: 0.209
DWG
DXF
PDF

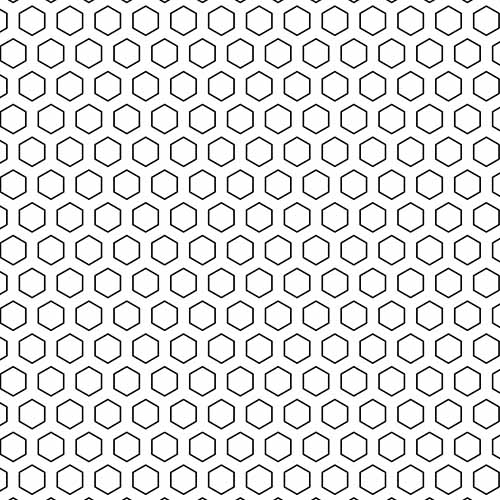

O001

.177" Hex x .265" CTRS.
Open Area: 45.0%
Hole Diameter: 0.177
Centers: 0.265
O001
DWG
DXF
PDF

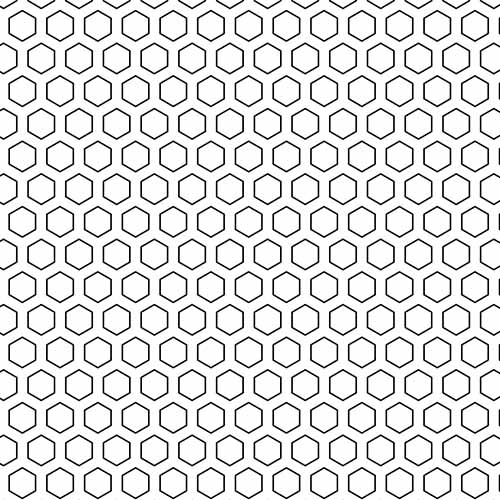

O022

.185" Hex X .264" CTRS.
Open Area: 49.0%
Hole Diameter: 0.185
Centers: 0.264
O022
DWG
DXF
PDF

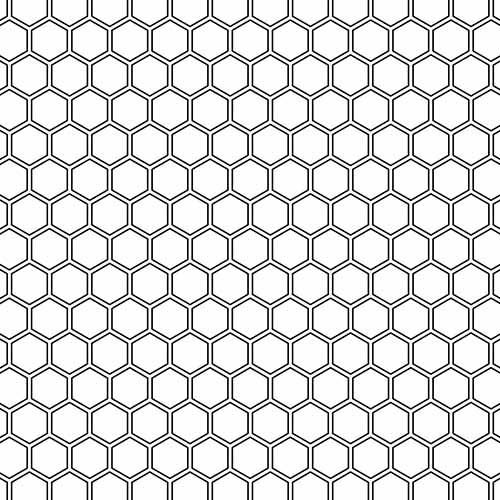

O003

.250" Hex x .281 CTRS.
Open Area: 79.0%
Hole Diameter: 0.250
Centers: 0.281
DWG
DXF
PDF

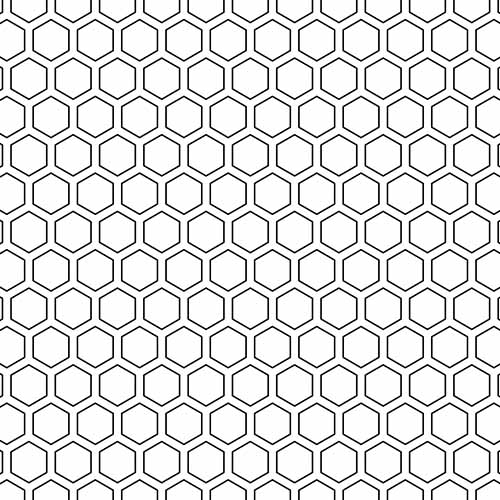

O002

.250" Hex .310" CTRS.
Open Area: 65.0%
Hole Diameter: 0.250
Centers: 0.310
O002
DWG
DXF
PDF

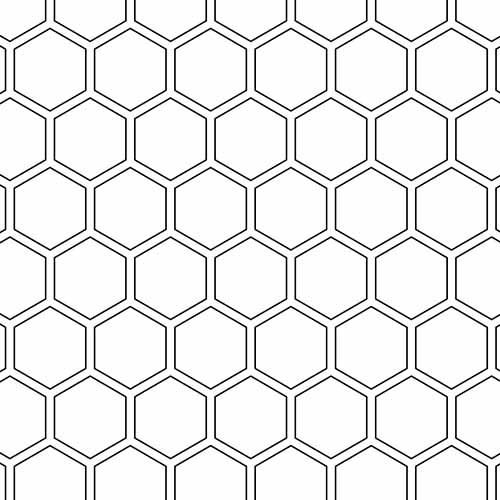

O023

.500" Hex x .562" STAGGERED
Open Area: 79.0%
Hole Diameter: 0.500
Centers: 0.562
O023
DWG
DXF
PDF

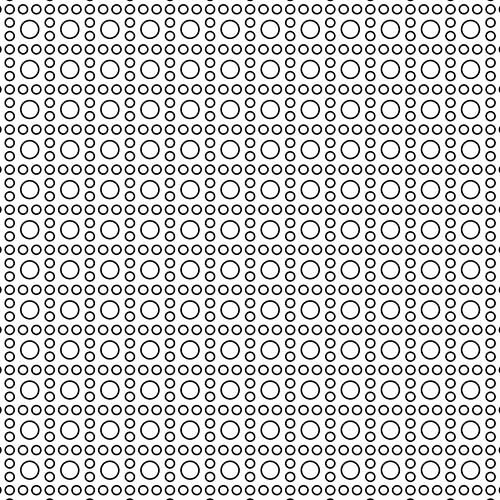

O009

Lincane
Open Area: 44.0%
Hole Diameter: 0.093
Centers: 0.281
O009
DWG
DXF
PDF

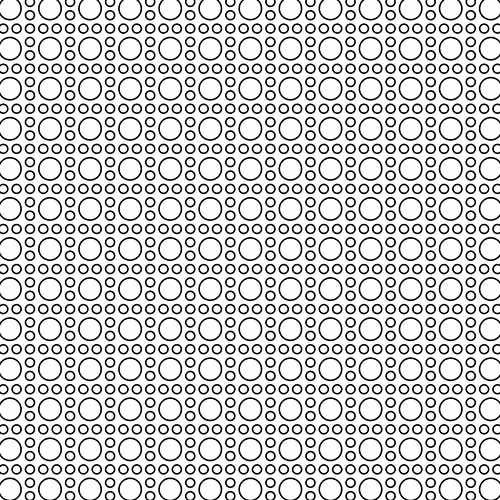

O010

Mini Cane
Open Area: 45.0%
Hole Diameter: 0.093
Centers: 0.750
DWG
DXF
PDF

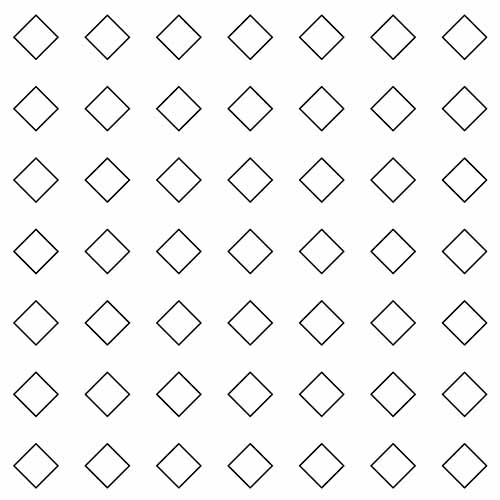

O019

.218" Diamond x .500" STR
Open Area: 20.0%
Hole Diameter: 0.218
Centers: 0.500
DWG
DXF
PDF

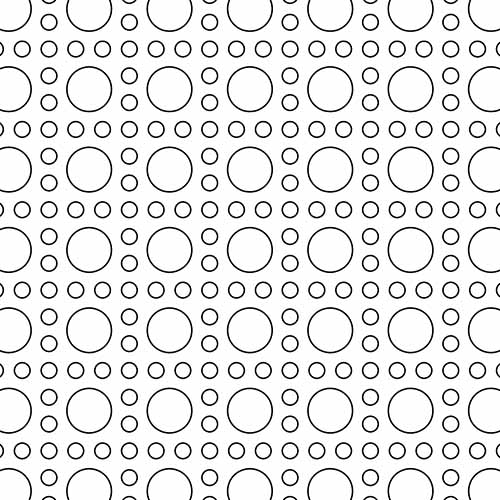

O013

5/16" Round Cane
Open Area: 38.0%
Hole Diameter: 0.312
Centers: 0.563
O013
DWG
DXF
PDF

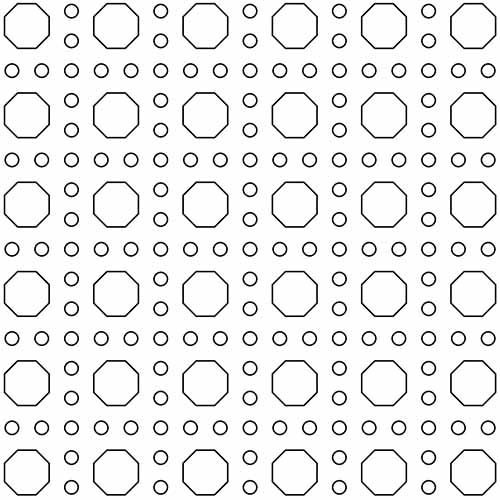

O011

Octagon Cane
Open Area: 41.0%
Hole Diameter: 0.313
Centers: 0.625
O011
DWG
DXF
PDF

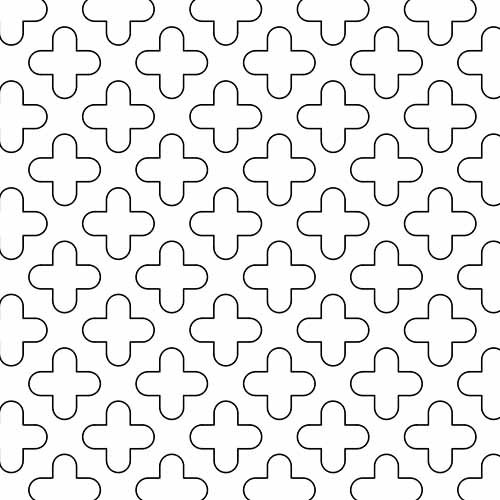

O004

Cloverleaf
Open Area: 51.0%
Hole Diameter: 0.500
Centers: 0.750
O004
DWG
DXF
PDF

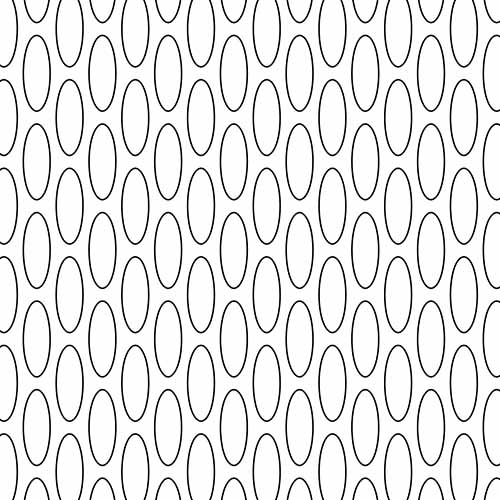

O007

3/16" x 17/32" Ellipse
Open Area: 55.0%
Hole Diameter: 0.531
Centers: 0.620
O007
DWG
DXF
PDF

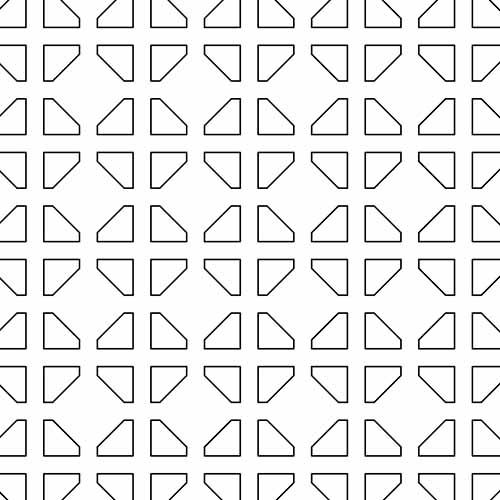

O015

Saratoga
Open Area: 32.0%
Hole Diameter: 0.625
Centers: 0.750
O015
DWG
DXF
PDF

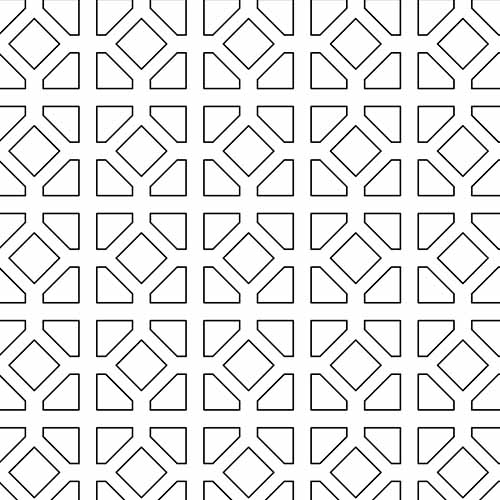

O014

Royal
Open Area: 45.0%
Hole Diameter: 0.625
Centers: 0.750
O014
DWG
DXF
PDF

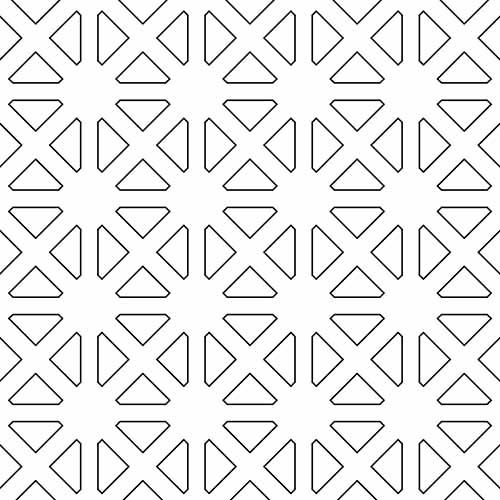

O008

Grecian
Open Area: 35.0%
Hole Diameter: 0.630
Centers: 0.750
O008
DWG
DXF
PDF

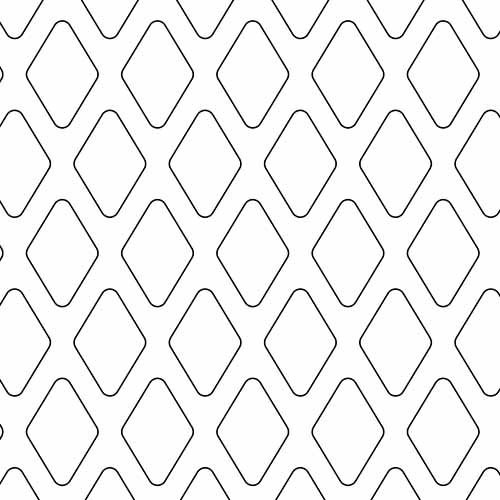

O020

1/2" X 3/4" Diamond X .333" CTRS
Open Area: 50.0%
Hole Diameter: 0.750
Centers: 0.333
DWG
DXF
PDF

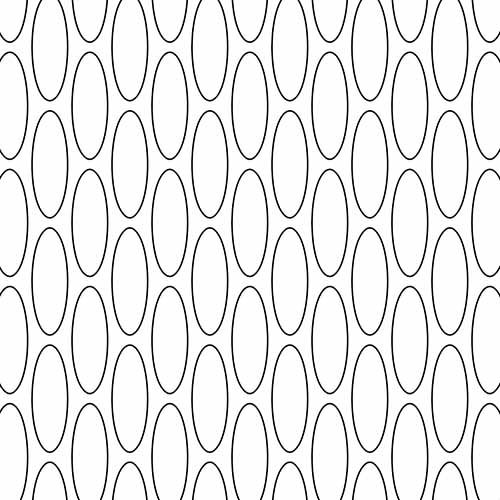

O006

1/4" x 3/4" Ellipse
Open Area: 54.0%
Hole Diameter: 0.750
Centers: 0.820
O006
DWG
DXF
PDF

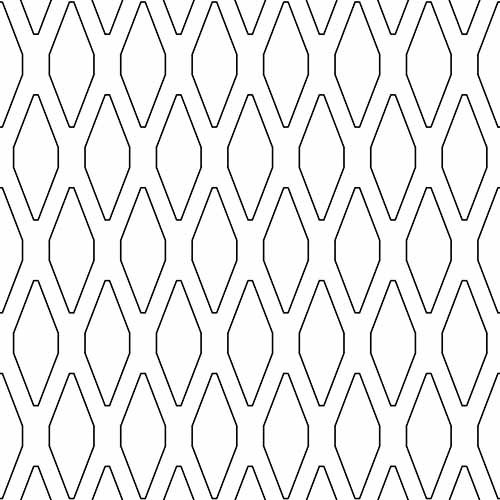

O005

5/16"" x 7/8"" Diamond x 1/4"" CTRS.
Open Area: 55.0%
Hole Diameter: 0.875
Centers: 1.312
O005
DWG
DXF
PDF

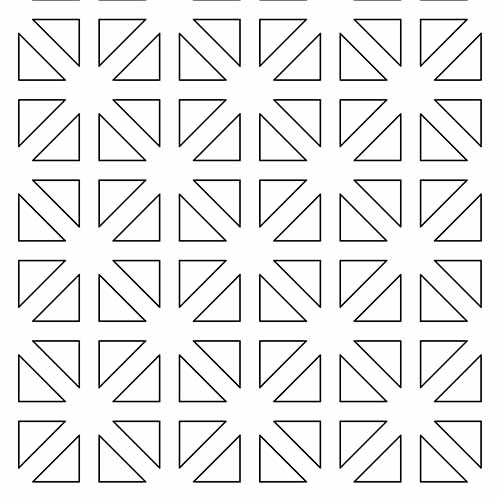

O016

Union Jack
Open Area: 40.0%
Hole Diameter: 0.986
Centers: 1.125
O016
DWG
DXF
PDF

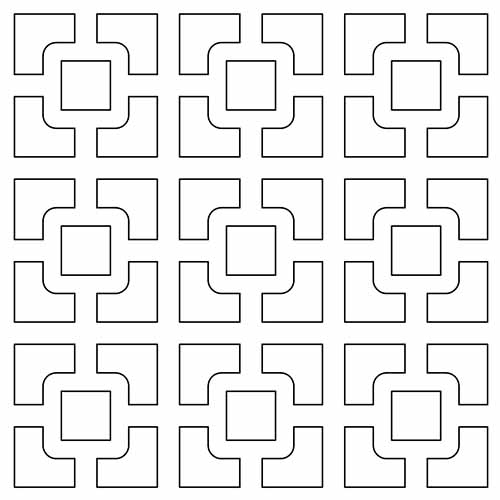

O018

Chainlink
Open Area: 48.0%
Hole Diameter: 1.000
Centers: 1.156
O018
DWG
DXF
PDF
